SEC-195
1 / 6
Carton Sealer

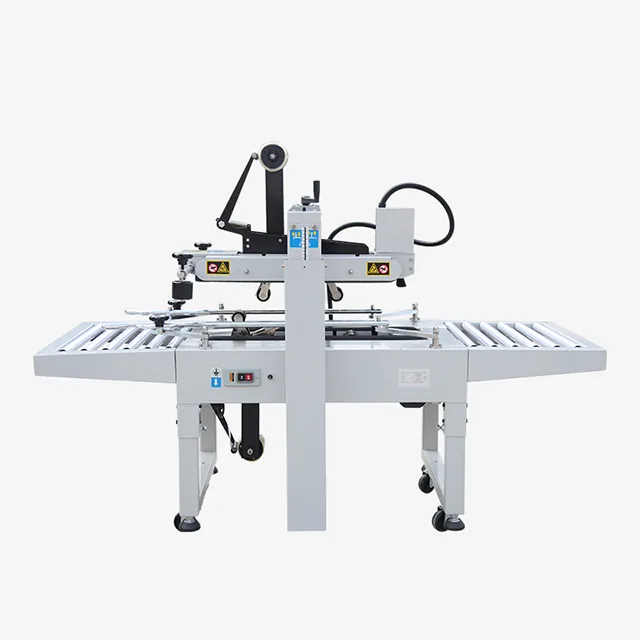

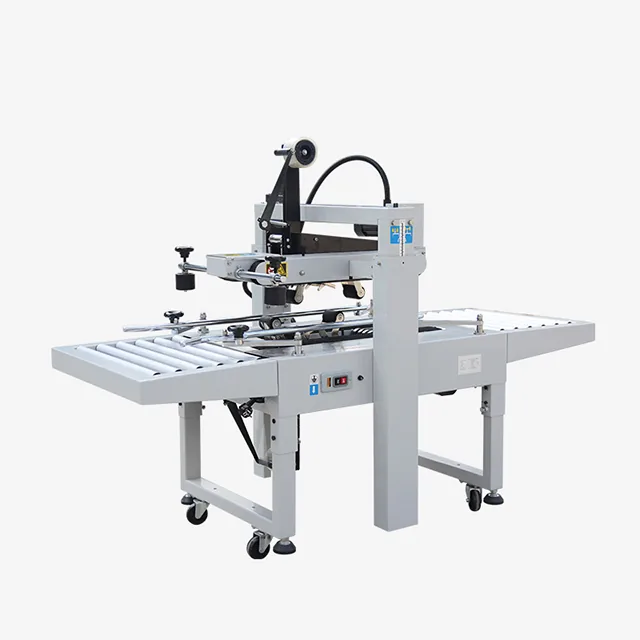

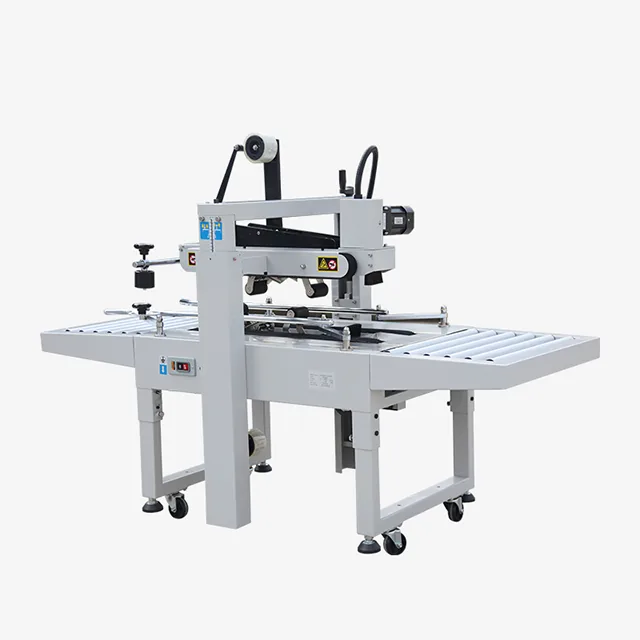

Semi Automatic Adhesive Tape Carton Sealer
SilverSeal ref. SEC-200
The semi automatic adhesive tape carton sealer draws 200 W. It arrives wired for AC 220/50 110/60. Plan for 150 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 200
- Speed (m/min)
- 20 m/min (25-45 cartons/min)
- Net weight (kg)
- 150
Overview
Semi-automatic Carton sealer Description: series is designed to seal carton by applying adhesive tape Cost effective, High speed Easy size changeovers For integration into production line or as stand alone machine It's widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, pharma and process industries Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons Printed tape can be used to improve enterprise image.
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Table height (mm) | Dimensions L×W×H (mm) | Net weight (kg) | Conveyor load (kg) | Pack size (mm) |
|---|---|---|---|---|---|---|---|
| SEC-200 | SEC-200 | 200 | 630-780 | 905(with bracket 1755 )×800×(960-1650) | 150 | 30 | ∞×500×600 |

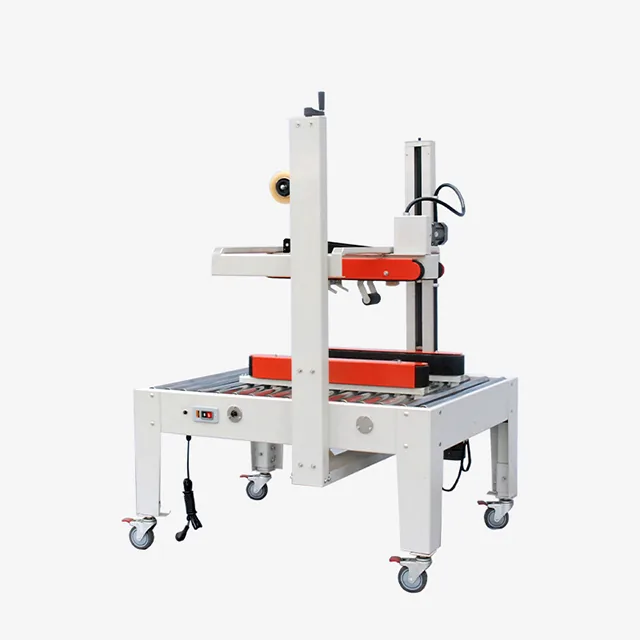

| SEC-205 | SEC-205 | 360 | 580-780 | 1230×1100×(1620-1820) | 160 | 50 | 700×800 |
Technical specifications
| Model | SEC-200 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Speed (m/min) | 20 m/min (25-45 cartons/min) |
| Tape width (mm) | BOPP, PVCadhesive tape, water-free adhesive tape |
| Table height (mm) | 630-780 |
| Dimensions L×W×H (mm) | 905(with bracket 1755 )×800×(960-1650) |
| Net weight (kg) | 150 |
| Conveyor load (kg) | 30 |
| Pack size (mm) | ∞×500×600 |
