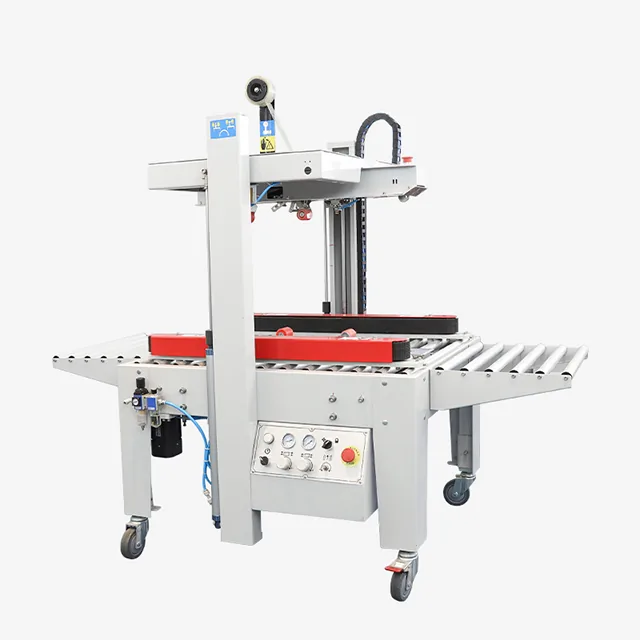

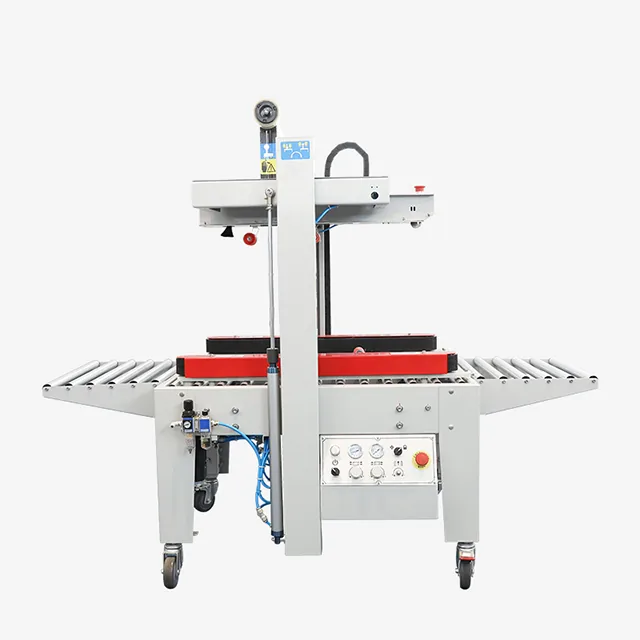

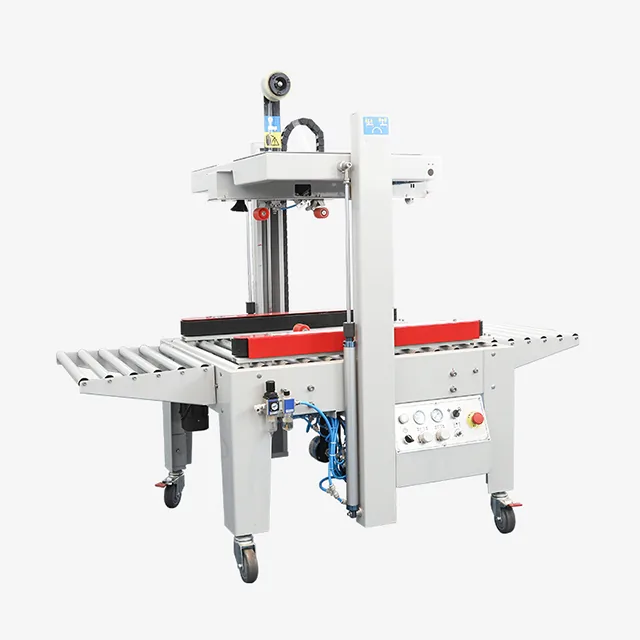

Automatic Carton Sealer
Automatic Carton Sealer
SilverSeal ref. SEC-110
The automatic carton sealer draws 200 W. It is the most compact of the 3 automatic carton sealers in this range, at 194 kg. It arrives wired for AC 220/50 110/60.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 200
- Dimensions L×W×H (mm)
- 1800X960X(1330-1530)
- Net weight (kg)
- 194
Overview
pneumatic carton sealer with new locking mode is especially applied to continuously seal cartons in different sizes, which is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, pharma and process industries industries. * Using tape width of 36-48mm and with 50mm on the sides of the carton; * Simple panel with the knob of switching between automatic mode and fixed mode; * All pneumatic components adopt Airtac brand.
Technical specifications
| Model | SEC-110 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Tape width (mm) | BOPP Water-free Adhesive Tape PVC Adhesive Tape |
| Table height (mm) | 580-780 |
| Dimensions L×W×H (mm) | 1800X960X(1330-1530) |
| Net weight (kg) | 194 |
| Conveyor load (kg) | 30 |
| Gas Pressure (Mpa) | 0.4~0.6 |
| Pack size (mm) | ∞X 500X500 |
| Taping Speed (m/min) | 20( Fixed mode:25-45 cartons / min ; Automatic mode:10-25 cartons / min ) |
