Automatic Carton Sealer
Automatic Carton Sealer

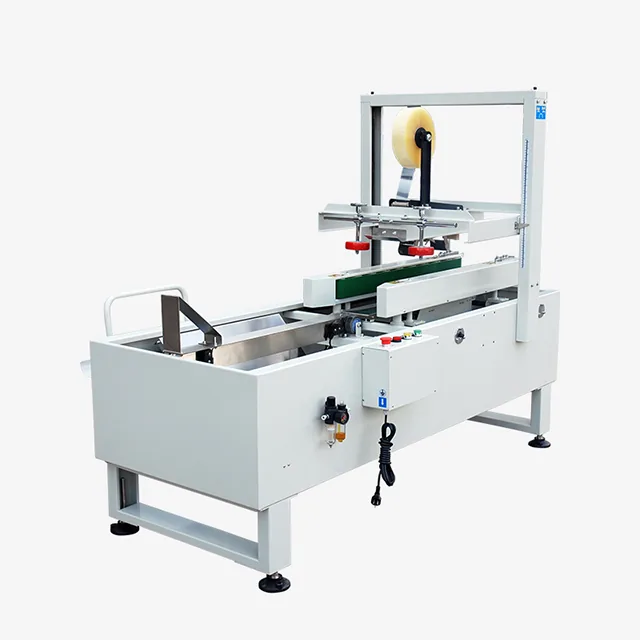

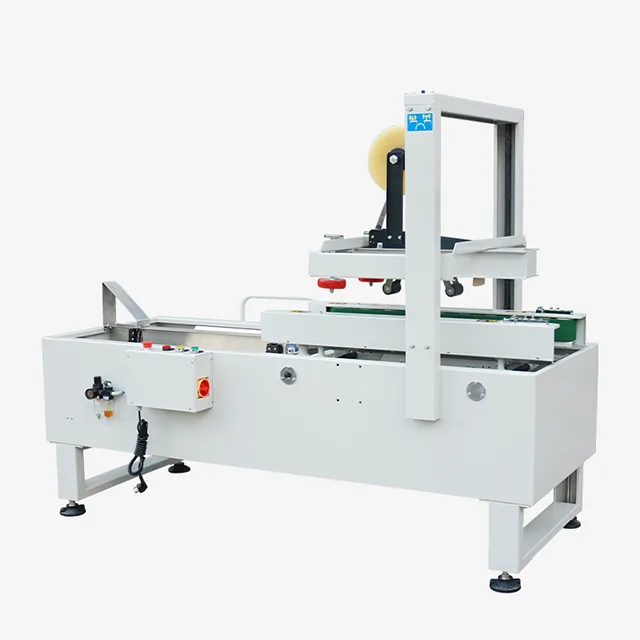

SilverSeal ref. SEC-100
The automatic carton sealer draws 180 W. It sits mid-range among the 3 automatic carton sealers we list (280 kg), between the SEC-110 and SEC-135 units. It arrives wired for AC 220/50 110/60, fed from a 0.5-0.6 MPa air line. Plan for a 2200×860×1700 mm footprint on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 180
- Speed (m/min)
- 22 m/min (10 cartons/min)
- Dimensions L×W×H (mm)
- 2200×860×1700
- Net weight (kg)
- 280
Overview
Semiautomatic Bottom Flap Carton Sealer Description: After the carton being opened manually, A semiautomatic bottom flap carton sealer can fold bottom flaps automatically, then the carton will be filled manually, at last the machine will seal both bottom and up flaps automatically. The machine can be equipped into production line.
Models in this series
6 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Speed (m/min) | Air supply (MPa) | Dimensions L×W×H (mm) | Net weight (kg) | Pack size (mm) | Table height (mm) | Conveyor load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SEC-100 | SEC-100 | 180 | 22 m/min (10 cartons/min) | 0.5-0.6 | 2200×860×1700 | 280 | 600×500×400 | — | — |

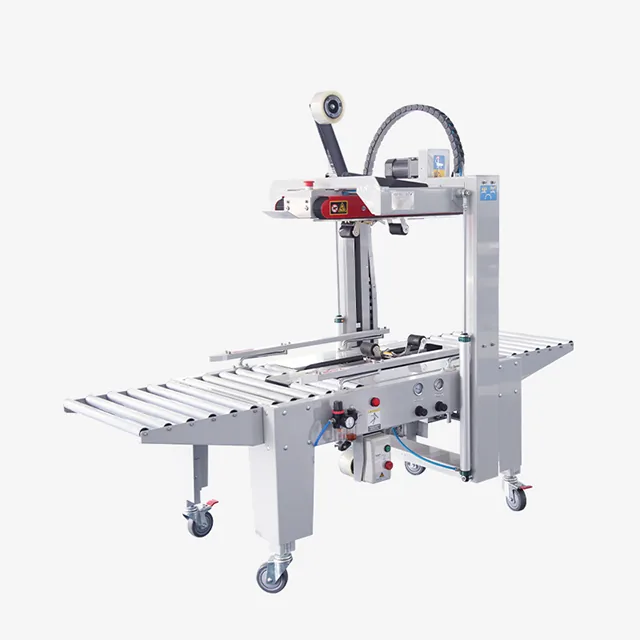

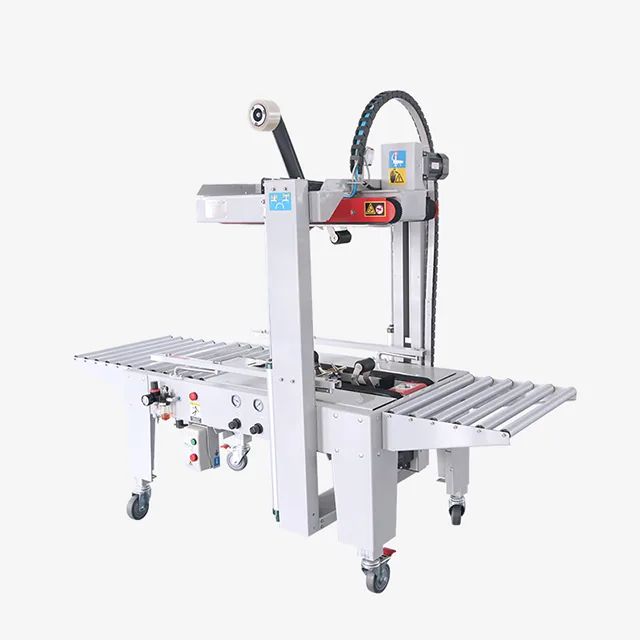

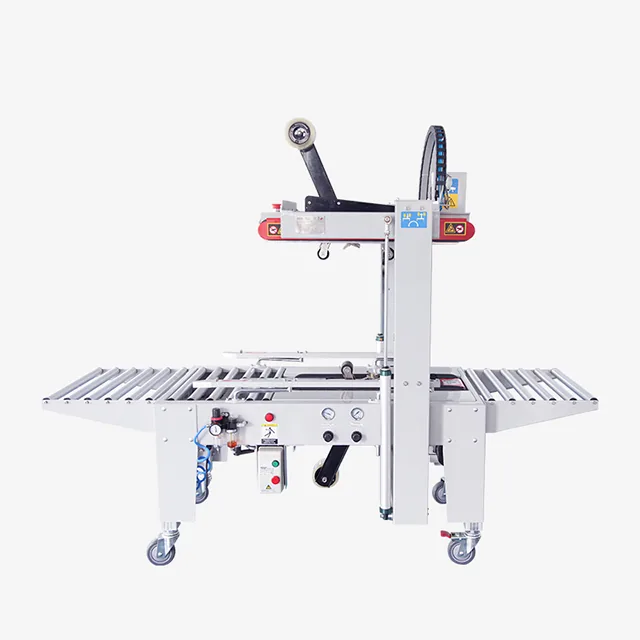

| SEC-105 | SEC-105 | — | 24 m/min (35 cartons/min) | 0.5-0.6 | 1970×780×(1280-1460) | 160 | 500×500 | 580-780 | — |

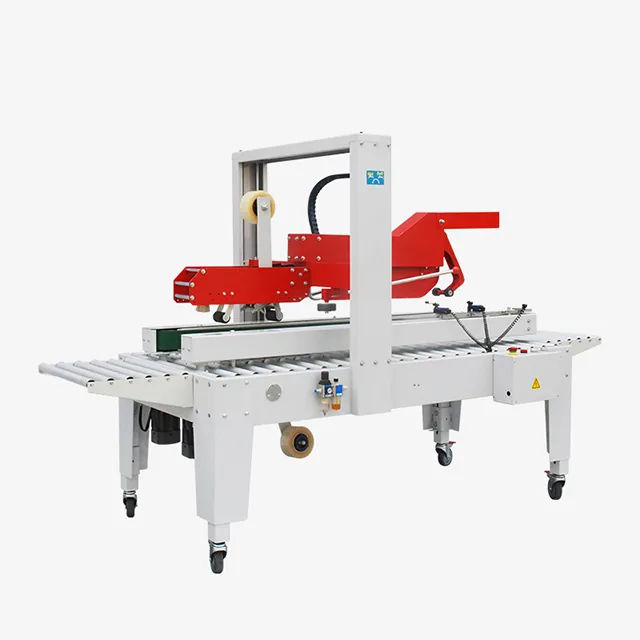

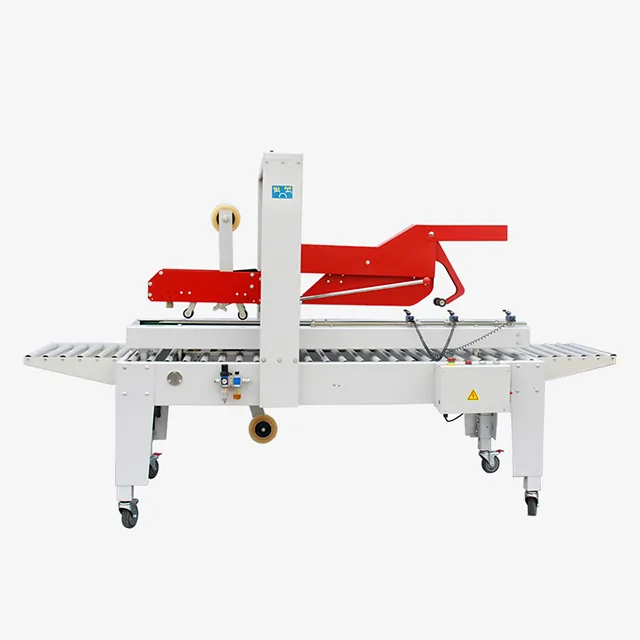

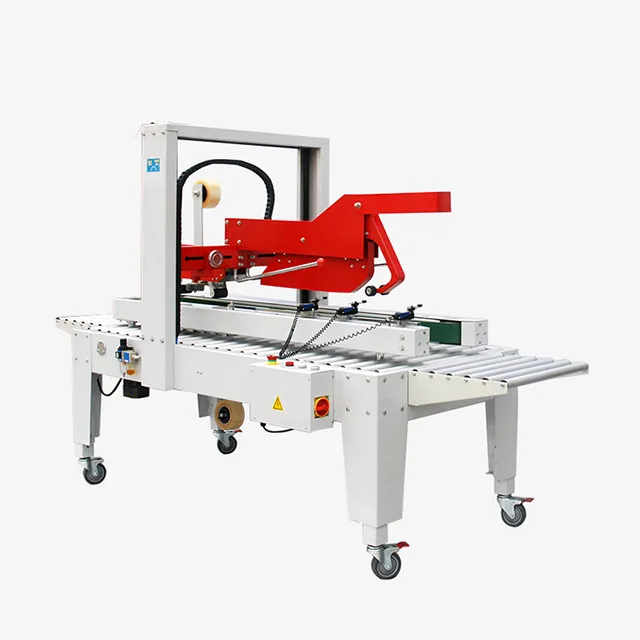

| SEC-115 | SEC-115 | 260 | 22 m/min (25 cartons/min) | 0.4-0.6 | 1830×920×(1450-1600) | 250 | 600×500×500 | 600-750 | 30 |

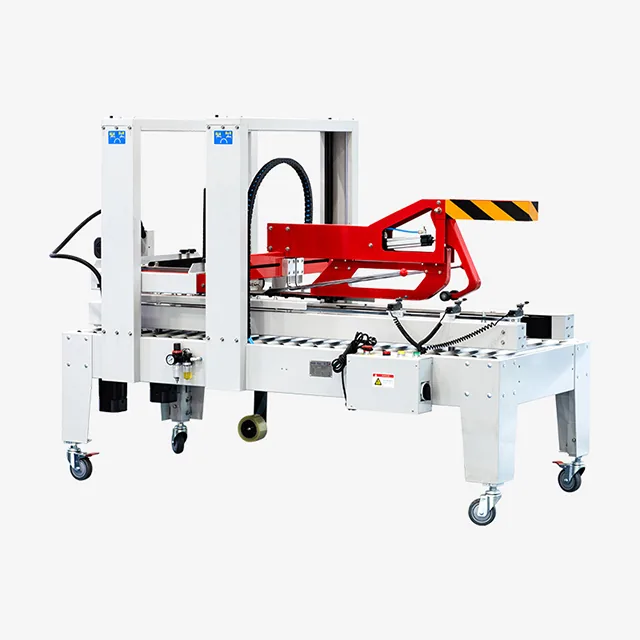

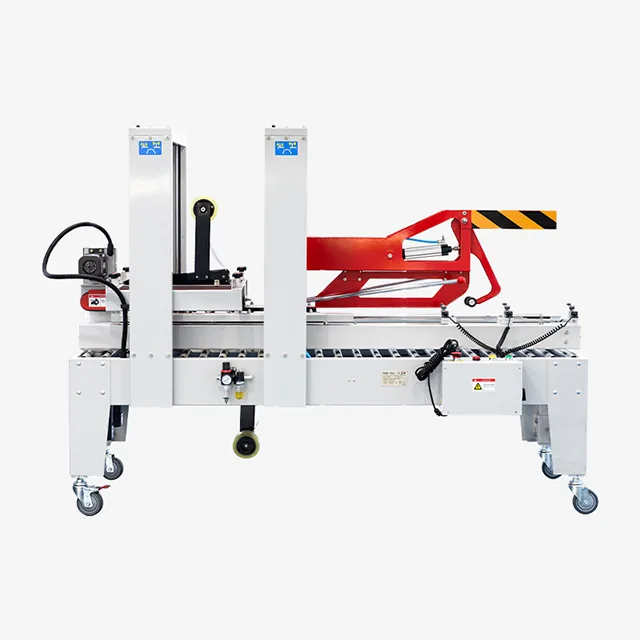

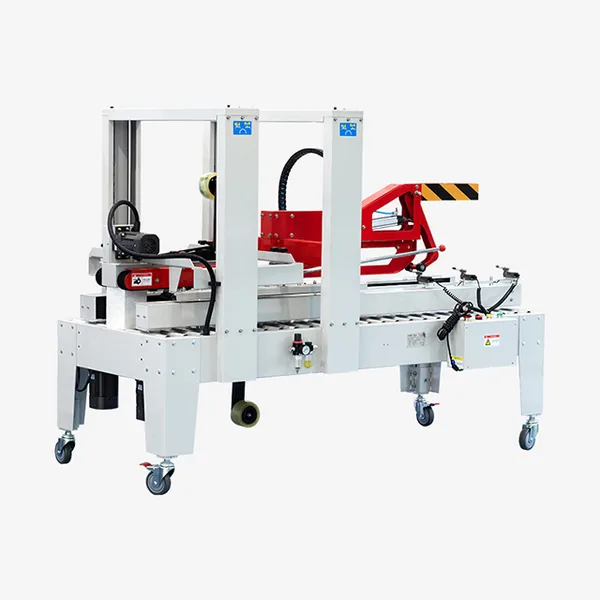

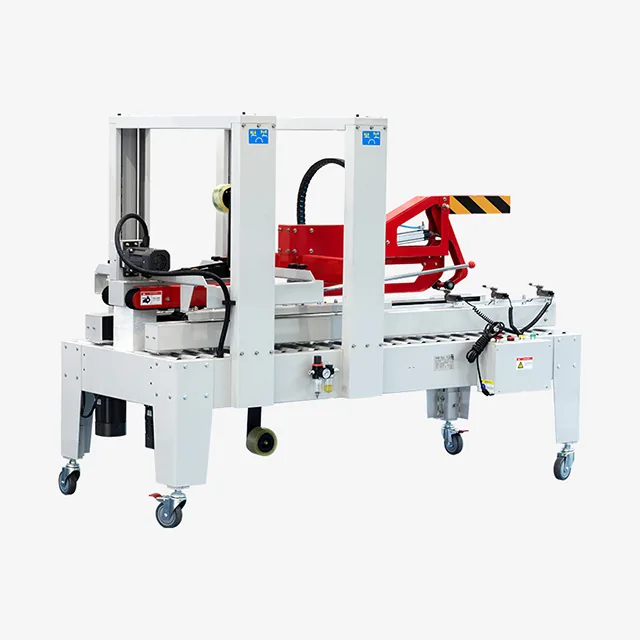

| SEC-120 | SEC-120 | 360 | 22 m/min (15-25 cartons/min) | 0.4-0.6 | 1980×920×(1480-1640) | 300 | 600×500×500 | According to customer's requirement | 30 |

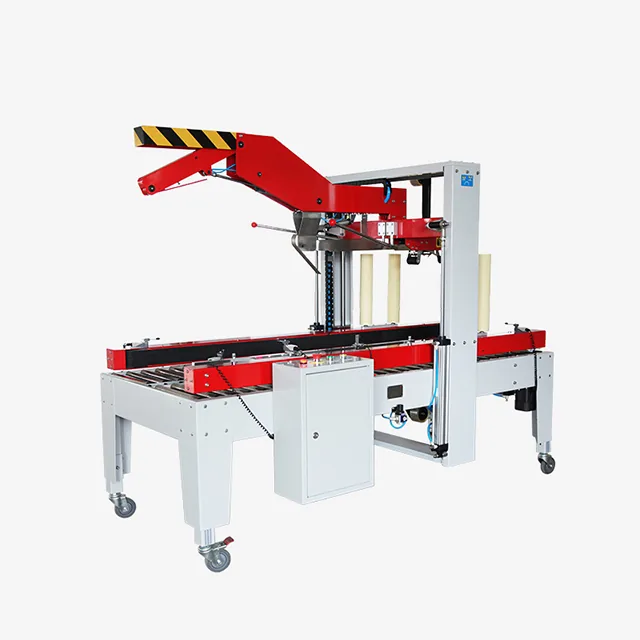

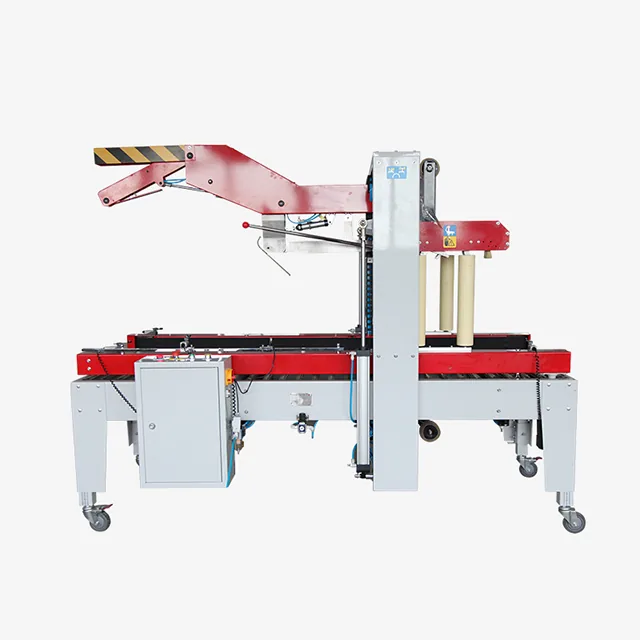

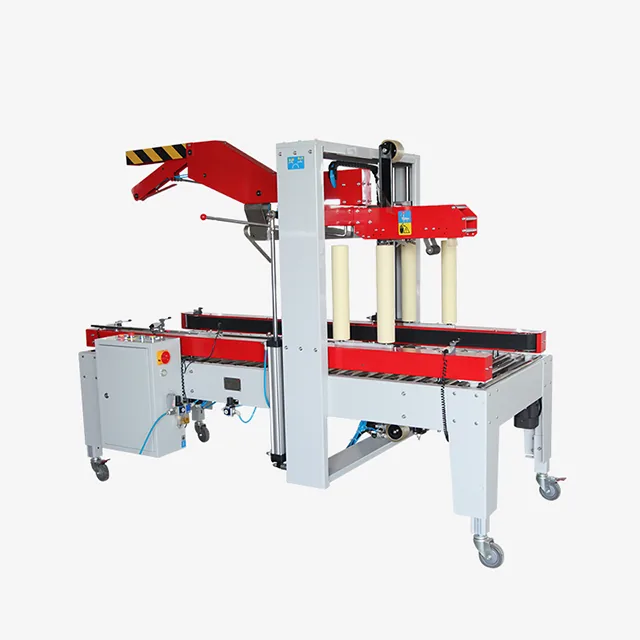

| SEC-125 | SEC-125 | — | 20 | 0.4-0.6 | 2276×1092×(1745-1895) | 300 | 600×500×500 | 600-750 | 30 |

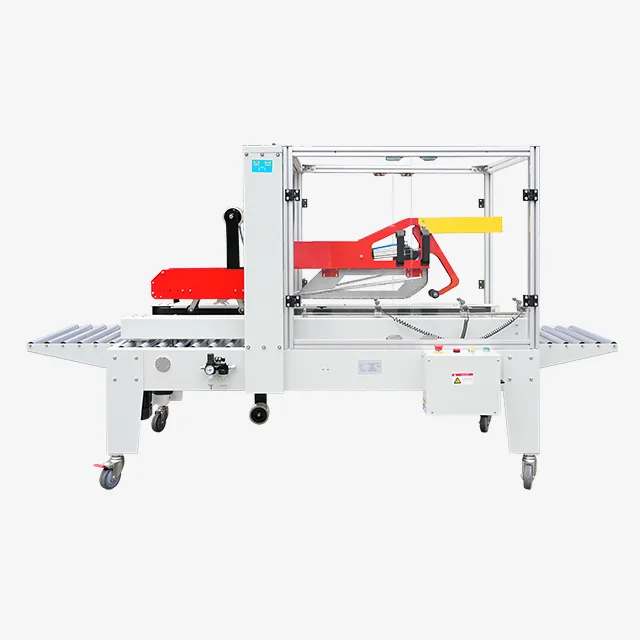

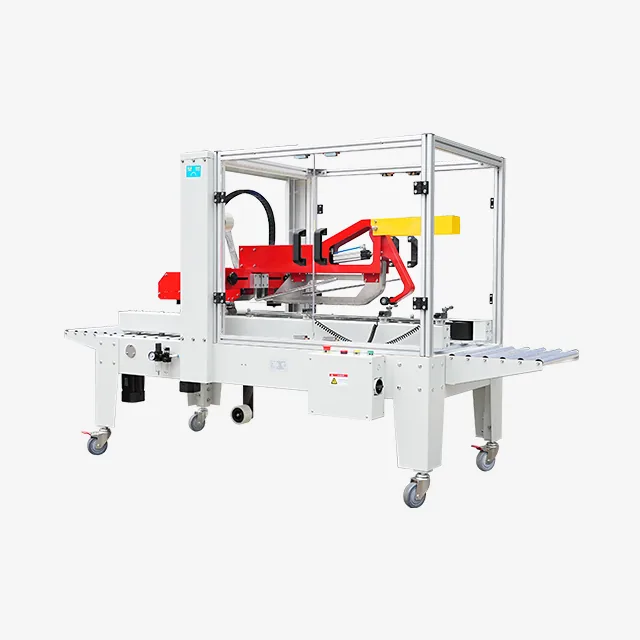

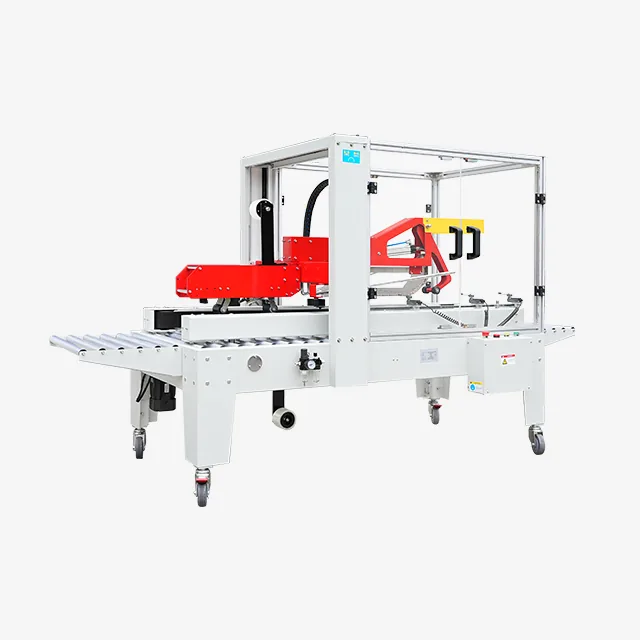

| SEC-130 | SEC-130 | 260 | 22 m/min (15-25 cartons/min) | 0.4-0.6 | 1830(with bracket2640)×920×(1480-1640) | 250 | 600×500×500 | According to customer’s requirement | 30 |
Technical specifications
| Model | SEC-100 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 180 |
| Speed (m/min) | 22 m/min (10 cartons/min) |
| Air supply (MPa) | 0.5-0.6 |
| Tape width (mm) | BOPP, PVC adhesive tape, water-free adhesive tape |
| Dimensions L×W×H (mm) | 2200×860×1700 |
| Net weight (kg) | 280 |
| Pack size (mm) | 600×500×400 |
