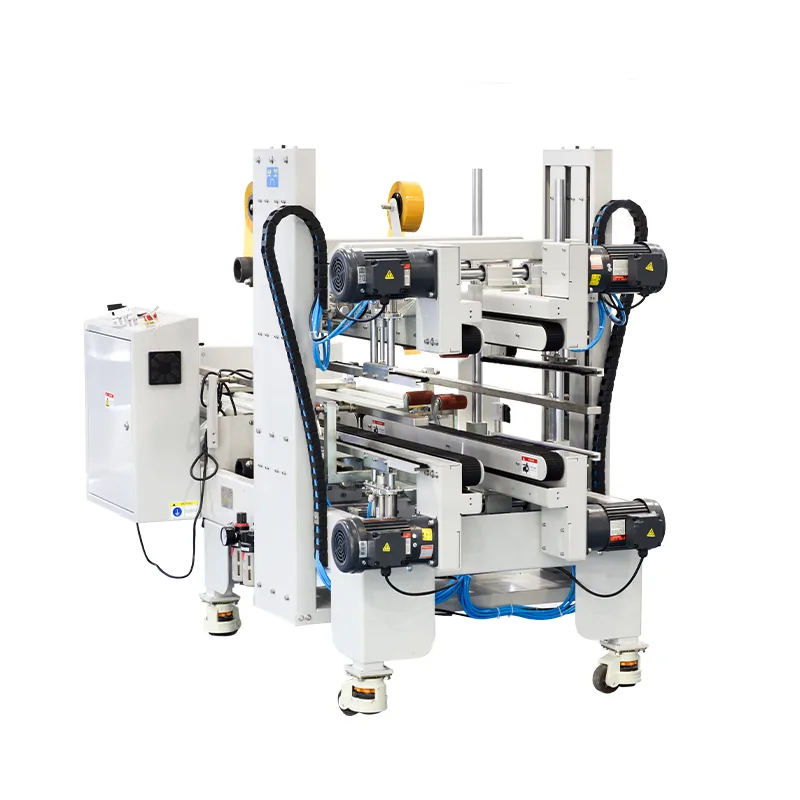

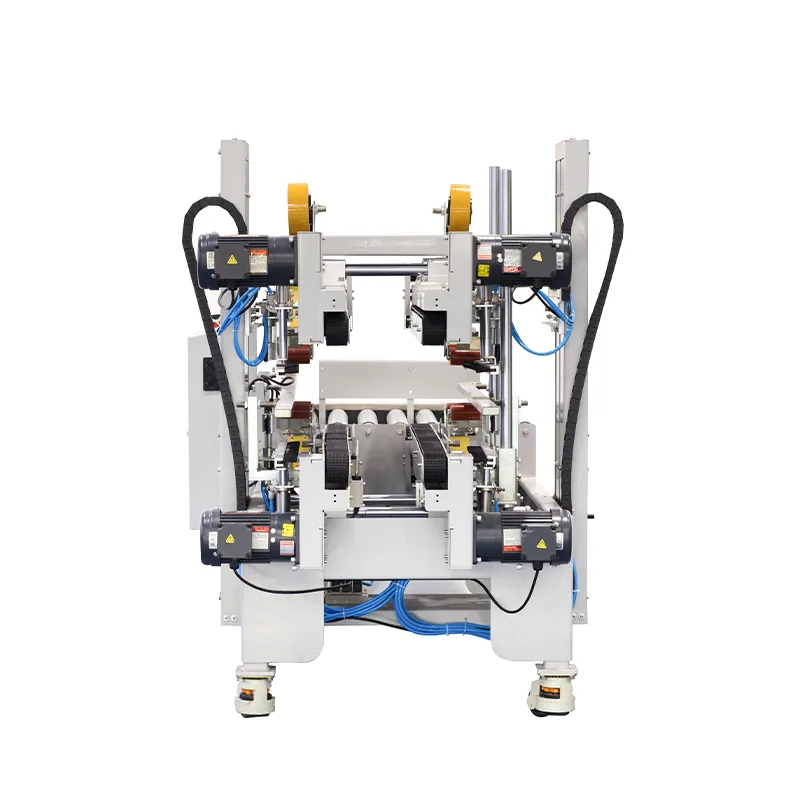

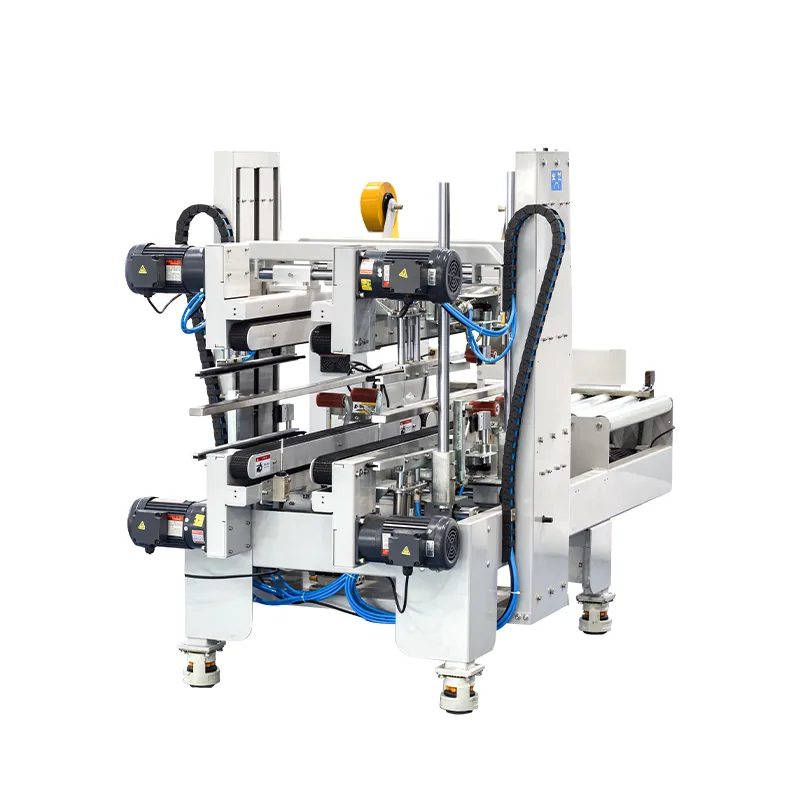

Automatic Carton Sealer
Automatic Carton Sealer
SilverSeal ref. SEC-135
The automatic carton sealer draws 1100 W. It is the largest automatic carton sealer we list, at 400 kg. It arrives wired for AC 380/50 220/50 110/60, fed from a 0.5-0.6 MPa air line. Plan for a 1955×1060×1510 mm footprint on the floor.
- Voltage (V/Hz)
- AC 380/50 220/50 110/60
- Power (W)
- 1100
- Speed (m/min)
- 5-10 ( as reference)
- Dimensions L×W×H (mm)
- 1955×1060×1510
- Net weight (kg)
- 400
Overview
series edges carton sealer is designed to seal the edges of top and bottom flaps by applying adhesive tape Cost effective, high speed Easy size changeoverst is especially ideal for applications that require high degree of leak-proofness For integration into carton sealer to form unmanned production line or as stand alone machine.
Technical specifications
| Model | SEC-135 |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/50 110/60 |
| Power (W) | 1100 |
| Speed (m/min) | 5-10 ( as reference) |
| Air supply (MPa) | 0.5-0.6 |
| Tape width (mm) | 60, 76 (optional) |
| Table height (mm) | 650-750 |
| Dimensions L×W×H (mm) | 1955×1060×1510 |
| Net weight (kg) | 400 |
| Conveyor load (kg) | 30 |
| Pack size (mm) | 320×200×180 |
| Package Weight (kg) | 2.5-30 |
| Type of Adhesive Tape | Bopp, water-free adhesive tape, PVC adhesive tape |
