SES-275
1 / 3

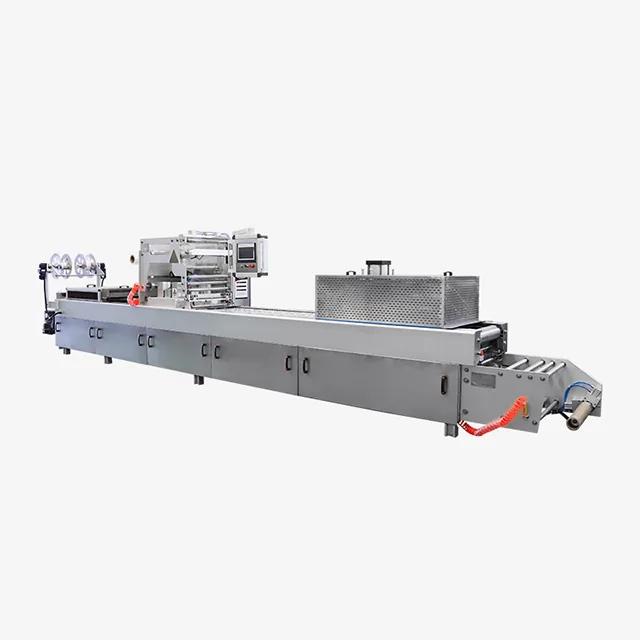

Thermoforming Packaging Machine
Thermoforming Packaging Machine
SilverSeal ref. SES-280
The thermoforming packaging machine runs at 4-6 times/min, draws 2000 W. It arrives wired for AC 380/50. Plan for a 5200x1205x1895 mm footprint on the floor.
- Voltage (V/Hz)
- AC 380/50
- Sealing power (W)
- 2000
- Capacity
- 4-6 times/min
- Chamber L×W×H (mm)
- 484×（200-600）
- Dimensions L×W×H (mm)
- 5200x1205x1895
- Net weight (kg)
- Approx.2000
Overview

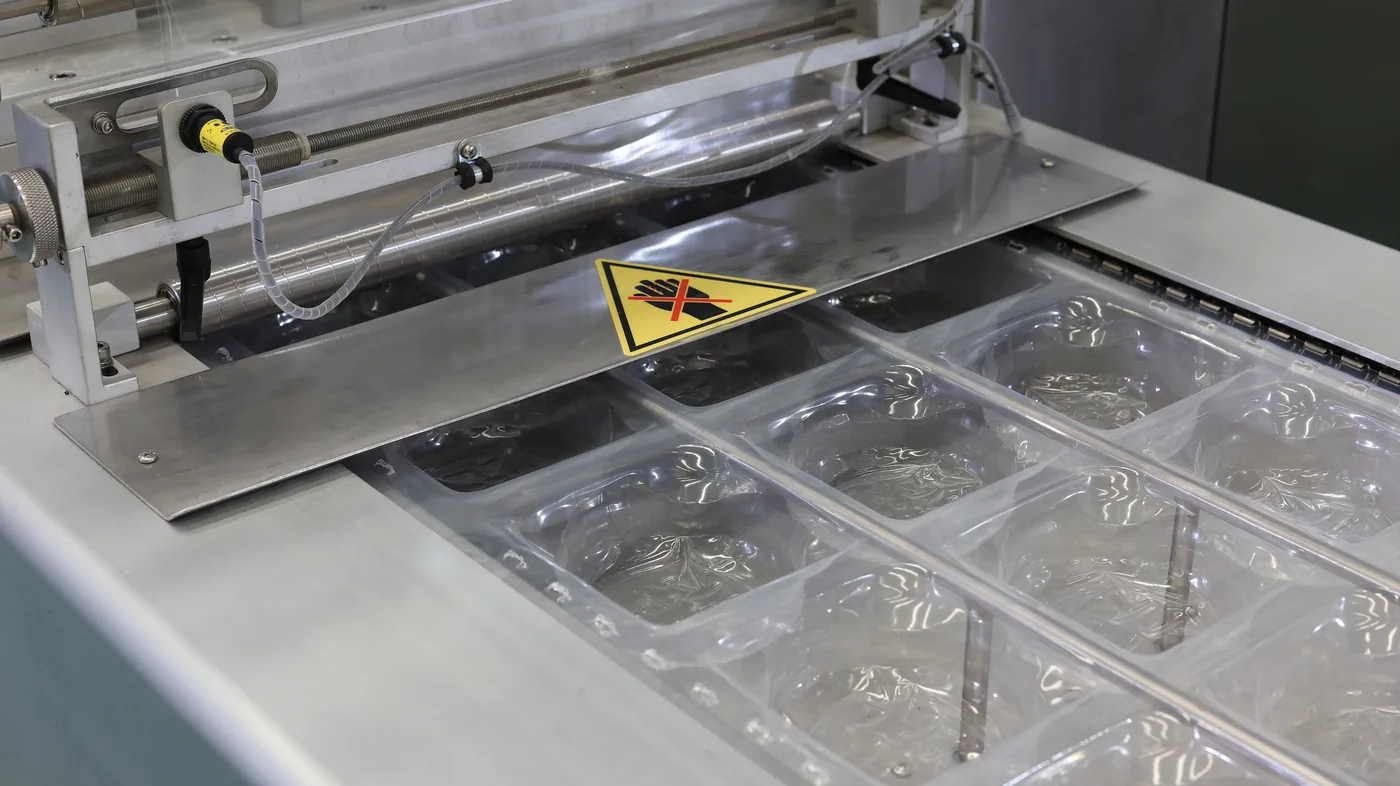

's thermoforming vacuum packing machine stands out in the packaging industry for its exceptional performance and adaptability, making it a top choice for businesses seeking efficient and reliable packaging solutions. Below are the detailed reasons and features: A series automatic thermoforming vacuum packaging machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.; it will skin pack the product. It is widely used to skin pack the products like kinds of snacks, meat, noodle, sausage, cheese, meat, pharma products, hardware, pharma equipment, etc. It adopts removable moulds which enable single machine to meet different sizes of moulds. It equips with recycling device for waste film and ensure healthy environment. It works with sensor for accurate positioning. It is available for vanish-film or color film to pack. Explore our comprehensive range of automatic thermoforming vacuum packaging machines. 1. Automatic Thermoforming Vacuum Packaging Machine 2. Food Thermoforming Packaging Machine Detail Pictures Mould Control Panel Detail Detail.
Technical specifications
| Model | SES-280 |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Sealing power (W) | 2000 |
| Capacity | 4-6 times/min |
| Chamber L×W×H (mm) | 484×（200-600） |
| Vacuum pump (m³/h) | 100 or 160 or 200 |
| Dimensions L×W×H (mm) | 5200x1205x1895 |
| Net weight (kg) | Approx.2000 |
| Air Source (Mpa) | 0.5-0.6 |
| Cooling Type | water-cooling |
| Lower FILM Width (mm) | 522 |
| Max. stretch depth (mm) | ≤120 |
| Upper FILM Width (mm) | 492 |
