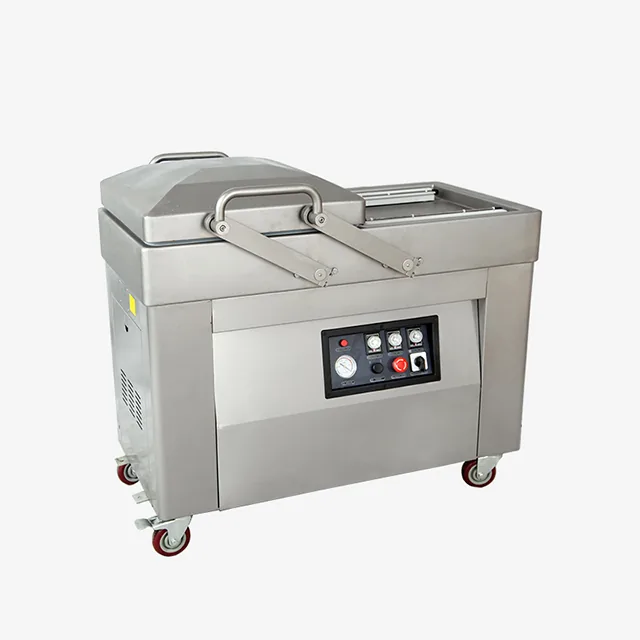

Double Chamber Vacuum Machine
Double Chamber Vacuum Machine
SilverSeal ref. SES-110
The double chamber vacuum machine works a 550×500×180 mm chamber, draws 600 W. It arrives wired for AC 380/50 220/50. Plan for a 1690×710×1055 mm footprint on the floor.
- Voltage (V/Hz)
- AC 380/50 220/50
- Sealing power (W)
- 600
- Sealing width (mm)
- 10or2×3or3+cut-off
- Chamber L×W×H (mm)
- 550×500×180
- Dimensions L×W×H (mm)
- 1690×710×1055
- Net weight (kg)
- Approx.220
Overview

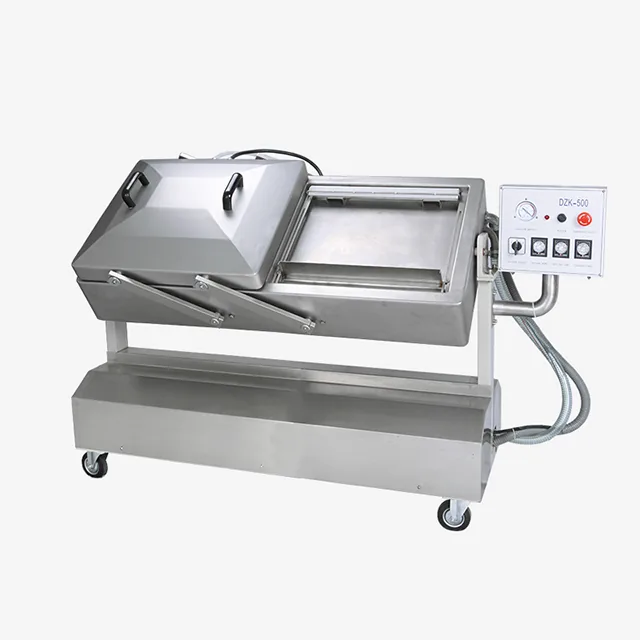

The products after packing can be prevented from oxidation, going mould, insects or getting damp, thus can be kept fresh for long storage. The vacuum chamber is inclined designed for products which are easy to pour. With height adjustable support plate, for packing different bags sizes. It is suitable for the products like liquid, coffee, tea, etc. which requires vertical or square package. It could be equipped with mould to square the vacuum effect for easier stocking.
Models in this series
9 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Sealing power (W) | Motor power (W) | Sealing width (mm) | Chamber L×W×H (mm) | Vacuum pump (m³/h) | Dimensions L×W×H (mm) | Net weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SES-110 | SES-110 | AC 380/50 220/50 | 600 | 1500 | 10or2×3or3+cut-off | 550×500×180 | 2×20 | 1690×710×1055 | Approx.220 |
| SES-115 | SES-115 | AC 380/50 220/50 110/60 | 500 | 750 | 10 or 2×3 or 3+ cut-off | 510×500×160 | 20 | 1070×685×940 | Approx.170 |
| SES-120 | SES-120 | AC 380/50 220/50 110/60 | 500 | 750 | 10 or 2×3 or 3+ cut-off | 510×500×150 | 20 | 1070×685×930 | Approx.170 |
| SES-130 | SES-130 | AC 380/50 220/50 | 1000 | 1500 | 10 or 2×3 or 3+ cut-off | 720×550×160 | 2×20 | 1485×735×940 | Approx.265 |
| SES-135 | SES-135 | AC 380/50 220/50 | 1000 | 1500 | 10 or 2×3 or 3+ cut-off | 720×550×150 | 2×20 | 1485×735×930 | Approx.255 |
| SES-140 | SES-140 | AC 380/50 220/50 | 2×800 | 1100 | 10 or 2×3 or 3+ cut-off | 720×630×60 | 40 | 1485×820×910 | Approx.343 |
| SES-145 | SES-145 | AC 380/50 220/50 | 1500 | 1500 | 10 or 2×3 or 3+ cut-off | 800×630×195 | 63 | 1670×850×1000 | Approx.375 |
| SES-150 | SES-150 | AC 380/50 220/50 | 1500 | 1500 | 10 or 2×3 or 3+ cut-off | 800×630×175 | 63 | 1670×850×975 | Approx.375 |
| SES-155 | SES-155 | AC 380/50 220/50 | 2000 | 2200 | 10 or 2×3 or 3+ cut-off | 910×800×225 | 100 | 1890×1030×1000 | Approx.500 |
Technical specifications
| Model | SES-110 |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/50 |
| Sealing power (W) | 600 |
| Motor power (W) | 1500 |
| Sealing width (mm) | 10or2×3or3+cut-off |
| Chamber L×W×H (mm) | 550×500×180 |
| Ultimate vacuum (kPa) | 1 |
| Vacuum pump (m³/h) | 2×20 |
| Dimensions L×W×H (mm) | 1690×710×1055 |
| Net weight (kg) | Approx.220 |
