SES-110
1 / 4

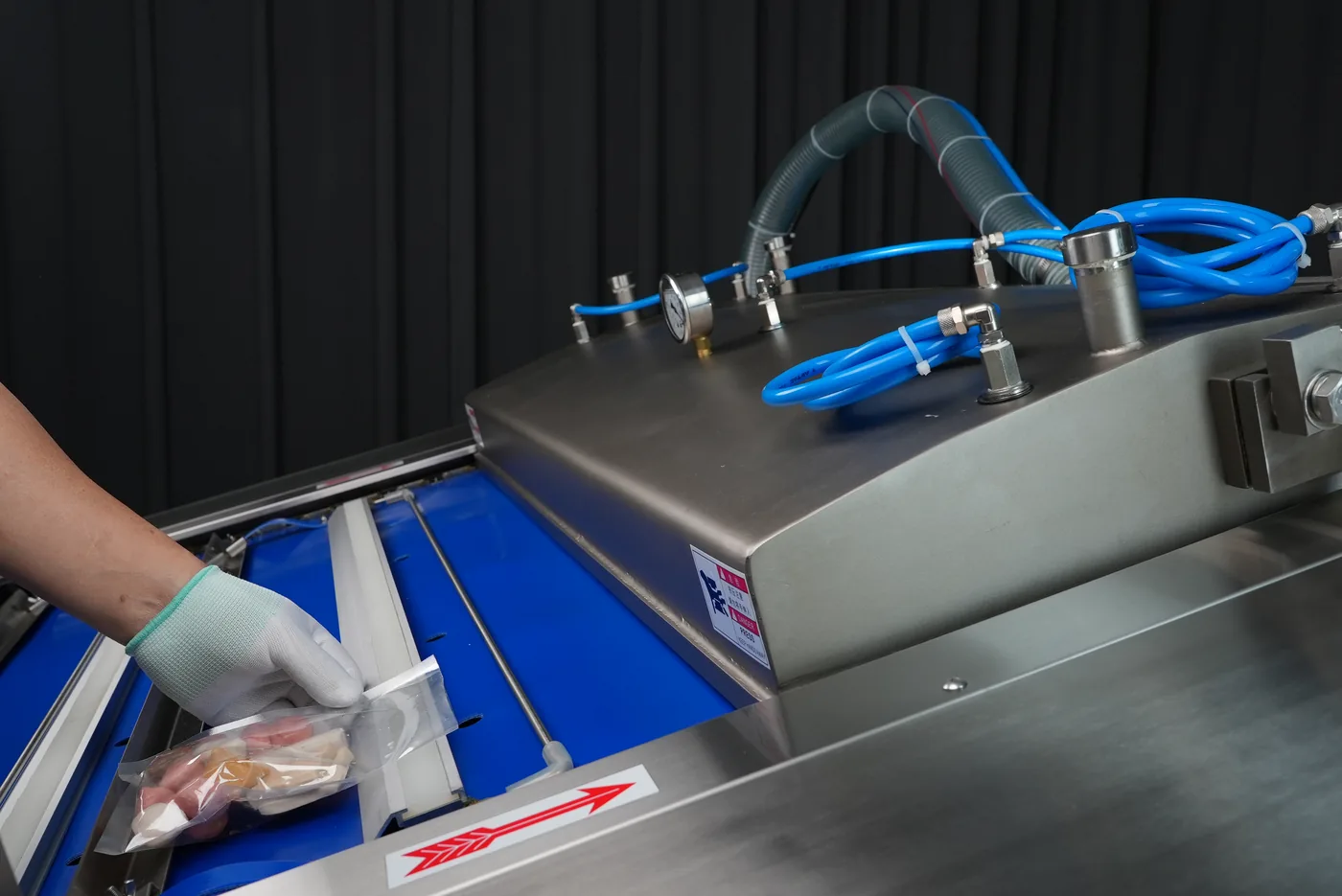

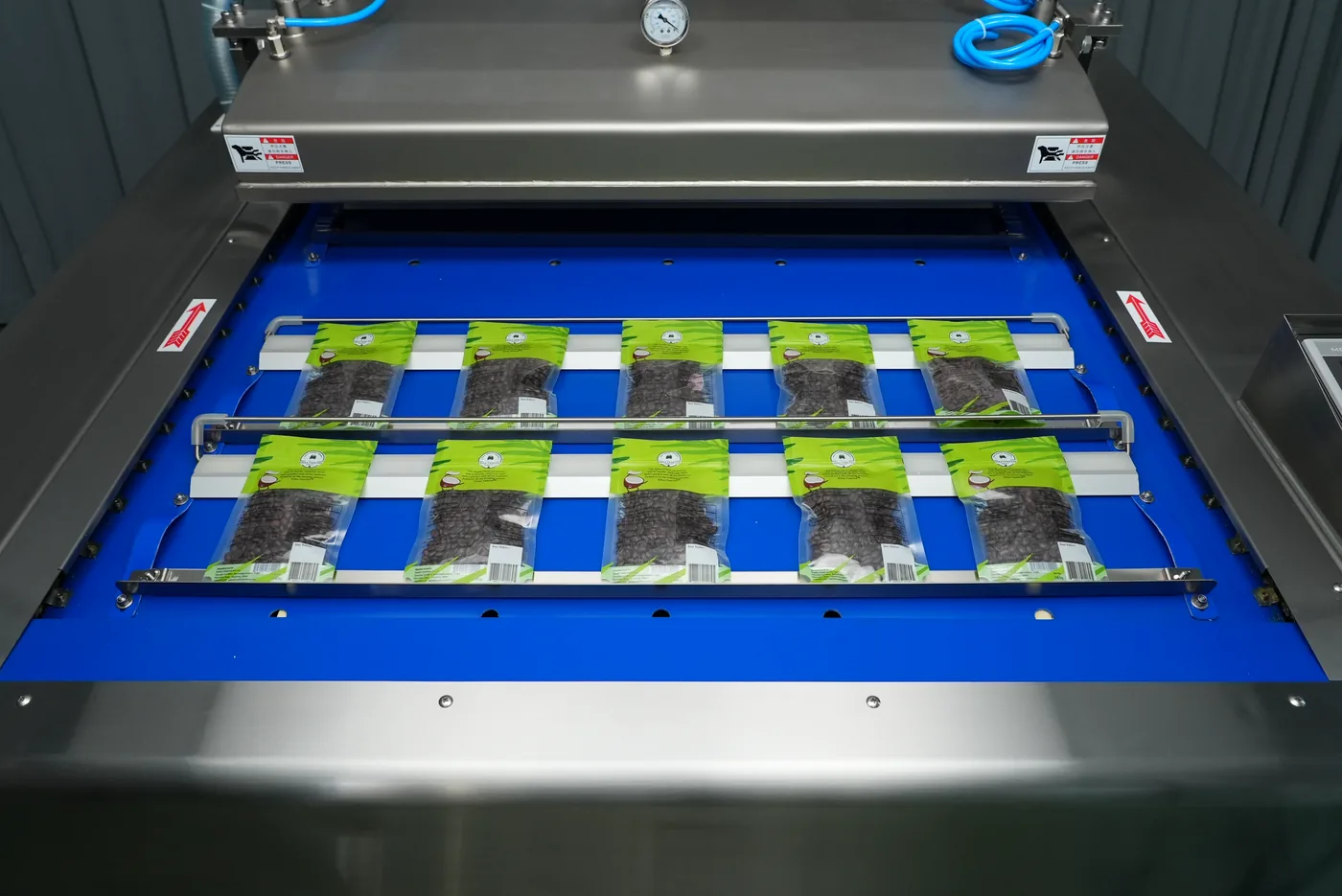

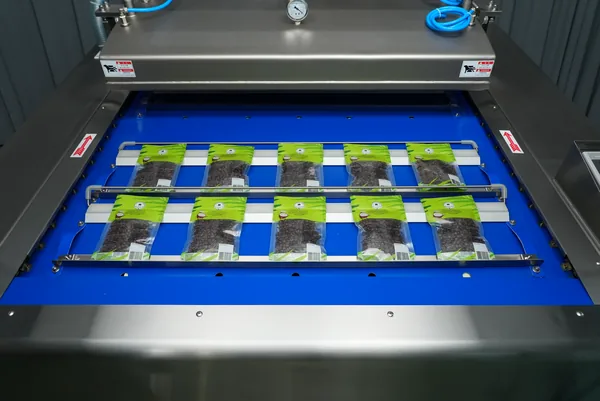

Continuous Vacuum Packaging Machine
Continuous Vacuum Packaging Machine
SilverSeal ref. SES-100
The continuous vacuum packaging machine runs at 3-5times/mins. It arrives wired for AC 380/50 220/60. Set up with motor power 550+370, sealing length 1020, ultimate vacuum 1.
- Voltage (V/Hz)
- AC 380/50 220/60
- Capacity
- 3-5times/mins
- Sealing width (mm)
- 10 or 2*3
- Chamber L×W×H (mm)
- 1100*500*100
- Dimensions L×W×H (mm)
- 1770*1580*1160
Overview
- Reliable performance
- Intuitive operation
- Convenient maintenance
- Equipped with casters for transportation
- PLC automatic control system
- Adjustable conveyor height
- Gas flushing function (optional) Application:
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Capacity | Sealing width (mm) | Chamber L×W×H (mm) | Dimensions L×W×H (mm) | Pump Capacity | Sealing power (W) | Net weight (kg) | Applied bag length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SES-100 | SES-100 | 3-5times/mins | 10 or 2*3 | 1100*500*100 | 1770*1580*1160 | 200 | — | — | — |
| SES-105 | SES-105 | 3-5 | 10 or 2×3 | 1100×500×100 | 1770×1580×1160 | — | 2000 | Approx.620 | ≤190 |
Technical specifications
| Model | SES-100 |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/60 |
| Motor power (W) | 550+370 |
| Capacity | 3-5times/mins |
| Sealing width (mm) | 10 or 2*3 |
| Sealing length (mm) | 1020 |
| Chamber L×W×H (mm) | 1100*500*100 |
| Ultimate vacuum (kPa) | 1 |
| Dimensions L×W×H (mm) | 1770*1580*1160 |
| Cooling Type | water-cooling |
| Pump Capacity | 200 |
