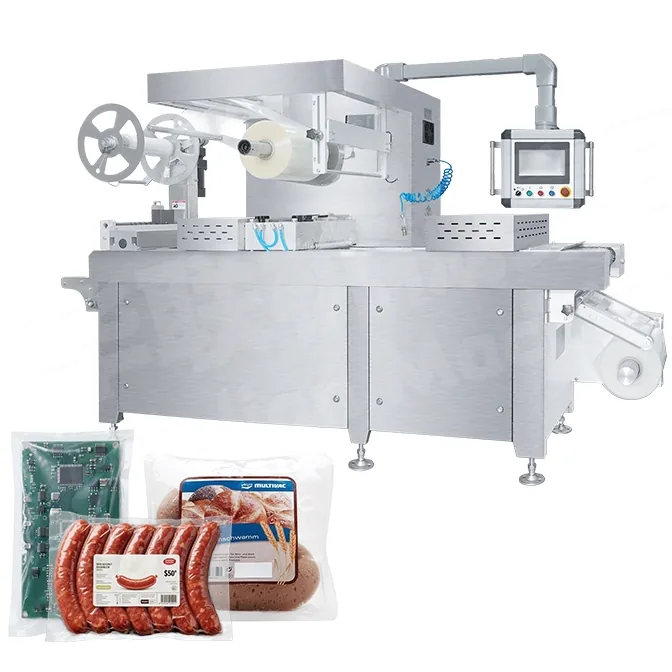

Thermoforming Packaging Machine
Thermoforming Packaging Machine
SilverSeal ref. SES-275
The thermoforming packaging machine draws 2000 W. It arrives wired for 380V/50HZ 3P, fed from a 0.5-0.8 MPa air line. Set up with sealing power 2000, vacuum pump 100 or 160 or 200, air source 0.5-0.6.
- Voltage (V/Hz)
- 380V/50HZ 3P
- Sealing power (W)
- 2000
- Chamber L×W×H (mm)
- 284*(200-400)
- Dimensions L×W×H (mm)
- 3012*1014*1905
- Net weight (kg)
- Approx.1500
Overview
New Auto Compact Map Thermoforming Vacuum Packaging Machine This thermoforming vacuum packaging machine with compact 3M body is made of 304 stainless steel, high quality at a favorable price. It allows for easy mold replacement, one machine for multiple uses. And it also equipped with a 200m3/h BUSCH vacuum pump and Extemal Vhiller, ensuring high production efficiency. Benefit Of Thermoforming Packaging Machine For Food High Efficiency This automatic thermoforming vacuum packaging machine integrates the whole process of filling,stuffing,sealing and slitting,etc. And the machine is equipped with a 200m3/h BUSCH vacuum pump and an external cooler, which has high production efficiency and improves the factory's production capacity. Smart Control, Sample Operation The 10.1-inch PLC touch screen enables multi-functional Settings, with simple operation and intuitive human-machine interaction. Food-grade Material And Stable Structure This food thermoforming packing machine is made of 304 Stainless Steel and Aluminum Alloy, it not only meets high hygiene standards, but also has a smooth surface and is easy to clean. And stainless steel is corrosion-resistant, which can extend the service life of the equipment and reduce costs. Balancing structural durability with lightweight design. It features an imported film clamping chain that delivers strong clamping force, ensuring stable film holding and minimizing waste. Precise Film Delivery, Efficient And Worry Free This system truly understands your production needs. It allows the film to be transported in such a way that the packaging is flat and smooth. The film can be quickly changed with simple operations, greatly reducing downtime and waiting. What is even more commendable is its intelligent film-forming function. No matter what specifications of the material, it can be accurately adapted to meet your changing packaging needs. High Energy Efficiency, Low Operation This automatic thermoforming vacuum packaging machine is using Extermal Vhiller and 200m3/h Busch Vacuum Pump, high-quality core components provide packaging efficiency and reduce the long-term cost of the product. Customizable Customizable Auto Thermoforming vacuum Packaging Machine – Optional Labeling Printing, Cross-Cut Sealing Styles (Toothed/Flat/Easy Tear), and Automatic Feeding device.
Technical specifications
| Model | SES-275 |
|---|---|
| Voltage (V/Hz) | 380V/50HZ 3P |
| Sealing power (W) | 2000 |
| Capacity | Vacuum+Heat Sealing 4-6 times/min |
| Chamber L×W×H (mm) | 284*(200-400) |
| Vacuum pump (m³/h) | 100 or 160 or 200 |
| Air supply (MPa) | 0.5-0.8 |
| Dimensions L×W×H (mm) | 3012*1014*1905 |
| Net weight (kg) | Approx.1500 |
| Air Source (MPa) | 0.5-0.6 |
| Bottom Film Width (mm) | 322 |
| Cooling Type | water-cooling |
| Lower FILM Width (mm) | 322 |
| Max Forming Depth (mm) | ≤120 |
| Max. stretch depth (mm) | ≤120 |
| Pump Exhaust Capacity (m3/h) | 200 |
| Upper Film Width (mm) | 292 |
