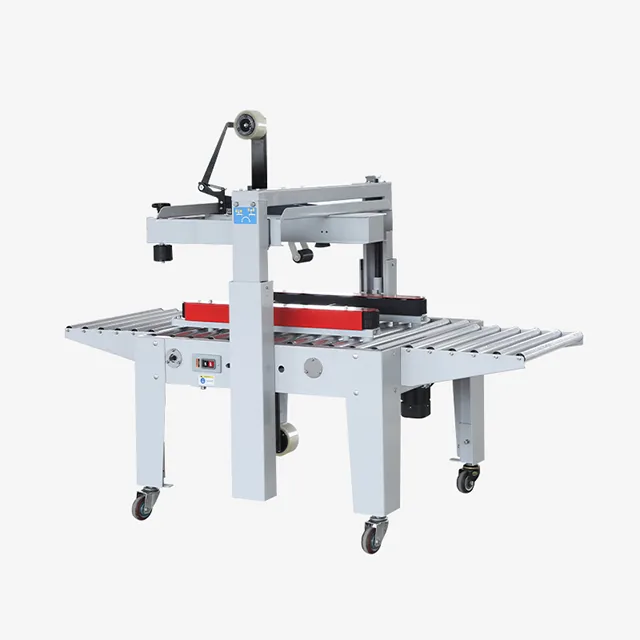

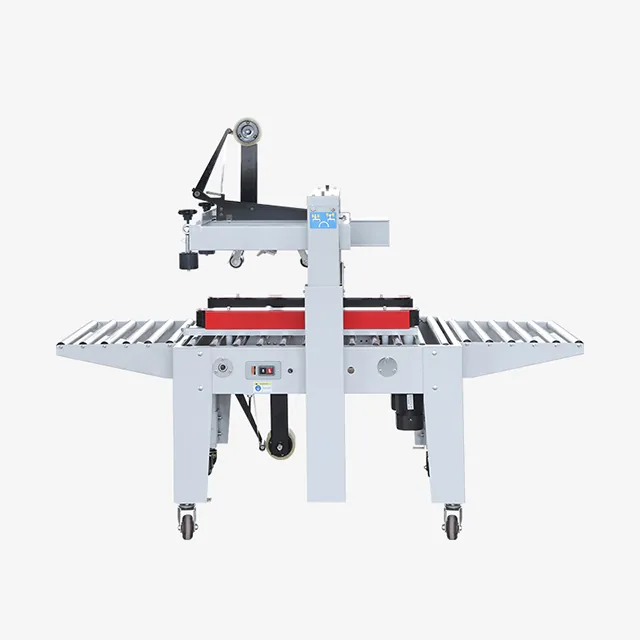

Semi automatic Carton Sealer
Semi automatic Carton Sealer

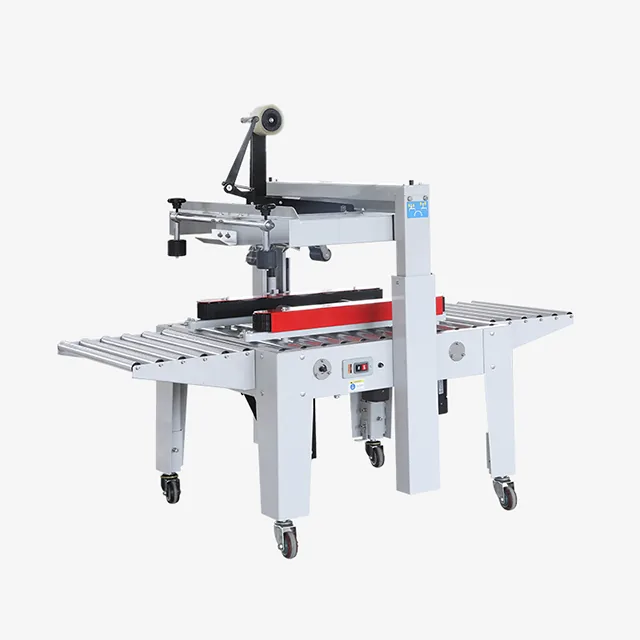

SilverSeal ref. SEC-145
The semi automatic carton sealer draws 200 W. It is the most compact of the 4 semi automatic carton sealers in this range, at 120 kg. It arrives wired for AC 220/50 110/60.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 200
- Speed (m/min)
- 20 m/min (30 cartons/min)
- Dimensions L×W×H (mm)
- 1730×950×(960-1550)
- Net weight (kg)
- 120
Models in this series
4 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Power (W) | Speed (m/min) | Tape width (mm) | Table height (mm) | Dimensions L×W×H (mm) | Net weight (kg) | Conveyor load (kg) | Pack size (mm) | Transmission form |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SEC-145 | SEC-145 | AC 220/50 110/60 | 200 | 20 m/min (30 cartons/min) | BOPP, PVCadhesive tape, water-free adhesive tape | 580-780 | 1730×950×(960-1550) | 120 | 30 | 500×500 | — |

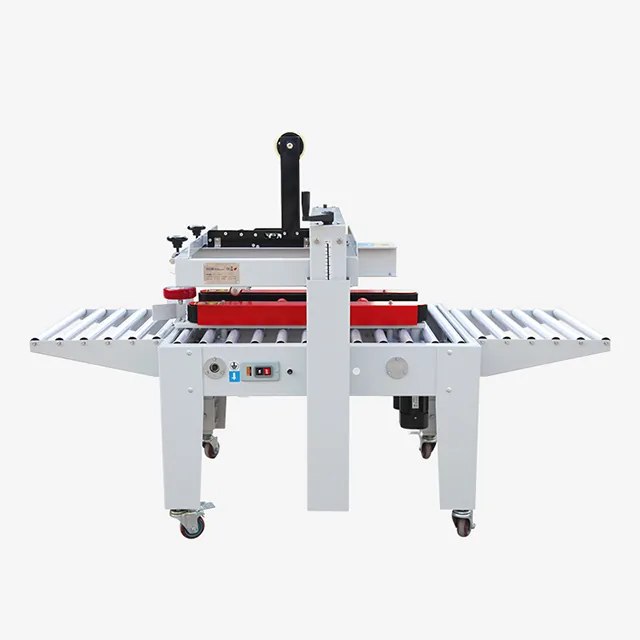

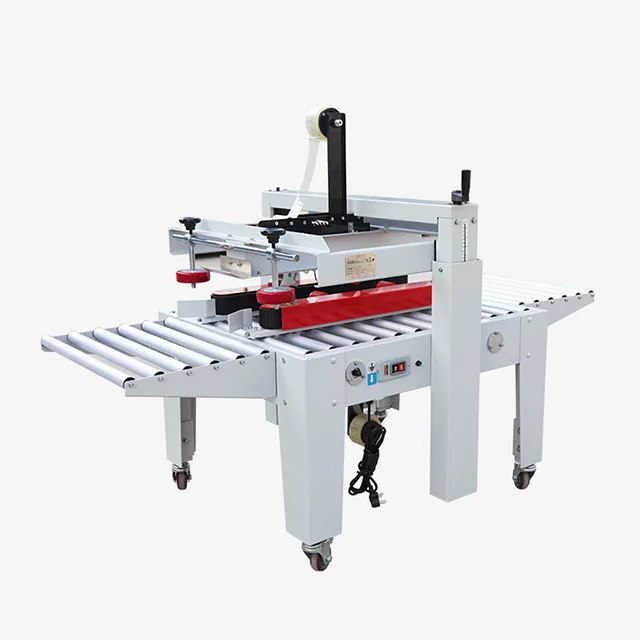

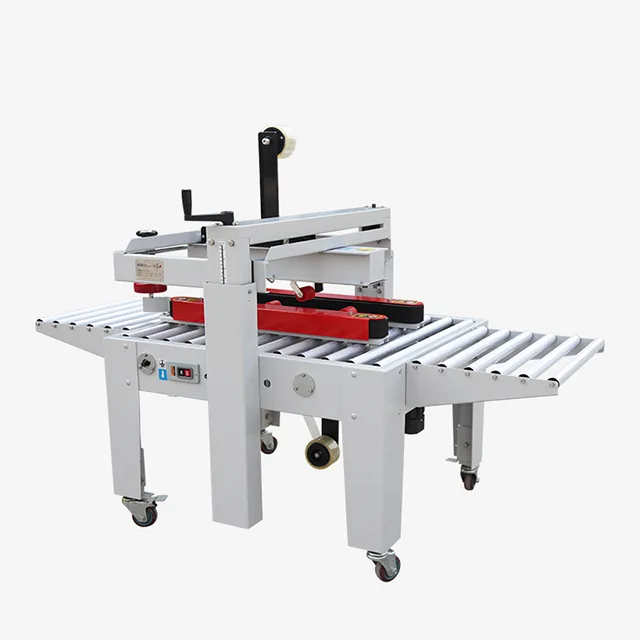

| SEC-150 | SEC-150 | AC 220/50 110/60 | 200 | 20 m/min (30 cartons/min) | BOPP, PVCadhesive tape, water-free adhesive tape | 580-780 | 1750×880×(1300-1500) | 115 | 30 | 500×500 | — |

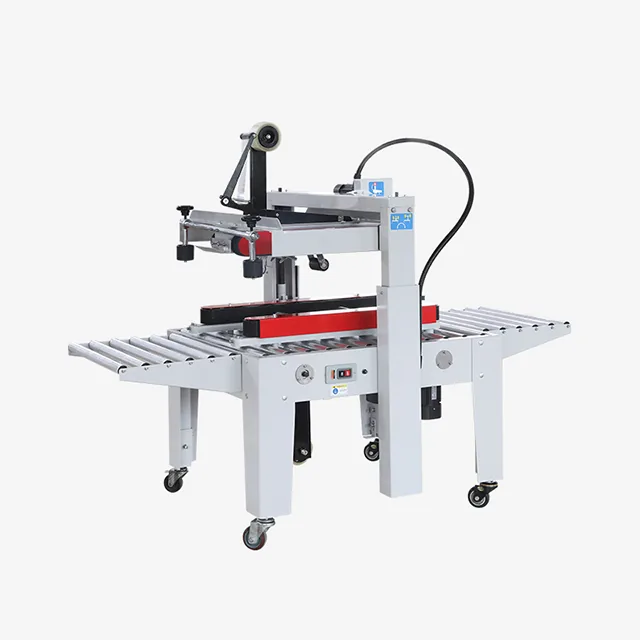

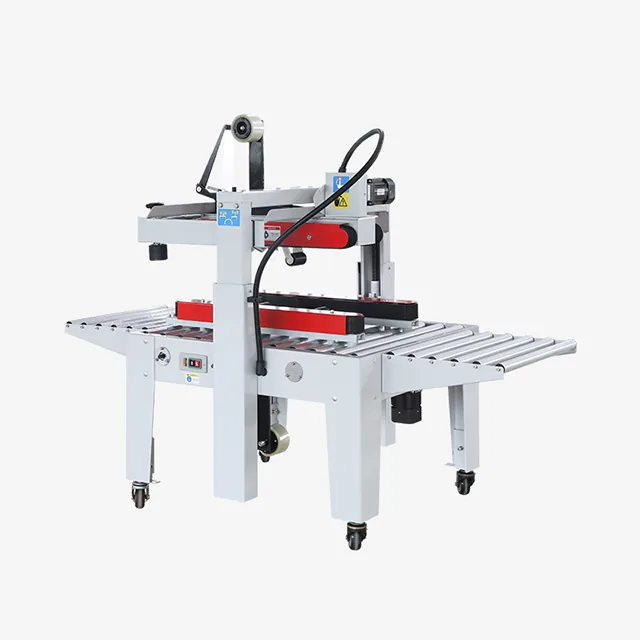

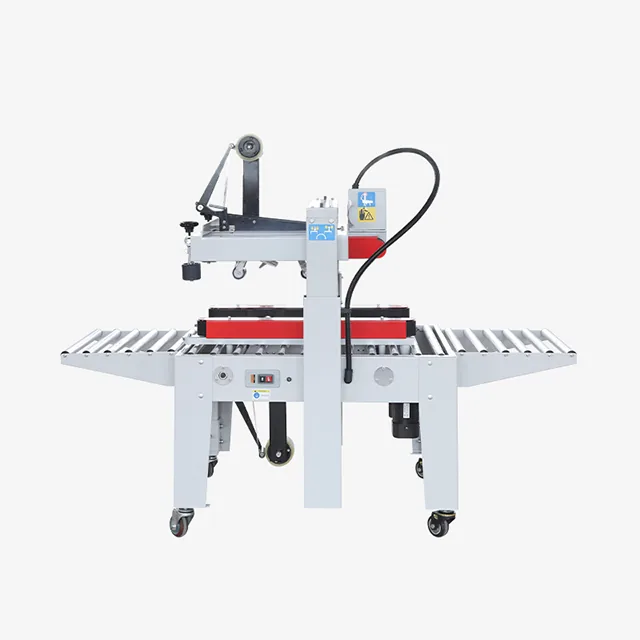

| SEC-155 | SEC-155 | AC 220/50 110/60 | 270 | 20 m/min (30 cartons/min) | BOPP, PVCadhesive tape, water-free adhesive tape | 580-780 | 1730×950×(960-1550) | 125 | 30 | 500×500 | — |

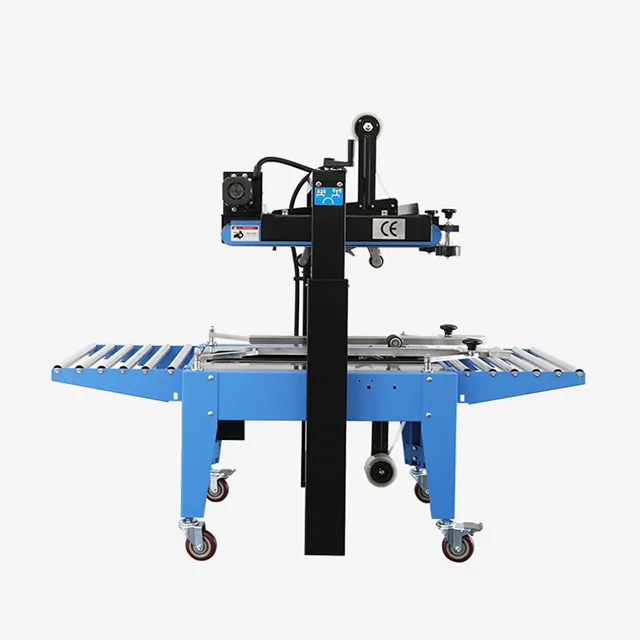

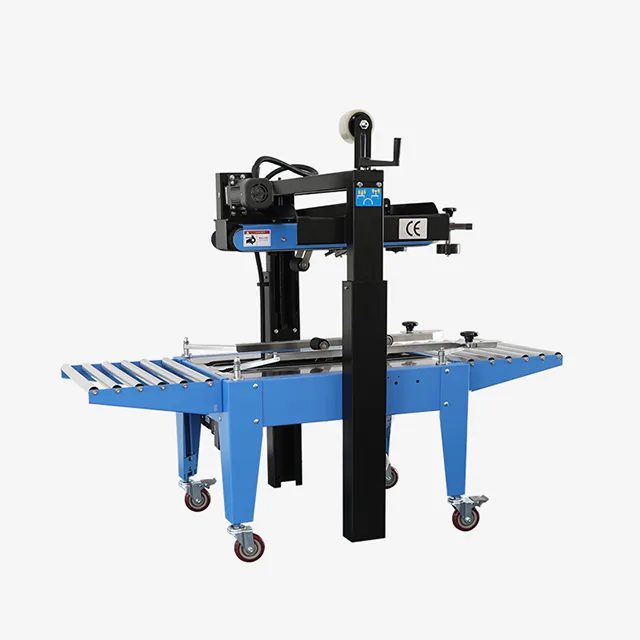

| SEC-160 | SEC-160 | AC 220/110V, 50/60Hz | 200 | 20 m/min | Water-free tape, BOPP, PVC | 635-780 | 1520X790(960-1650) | 150 | — | 500X600X∞ | Upper and lower conveyor belt drive |
Technical specifications
| Model | SEC-145 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Speed (m/min) | 20 m/min (30 cartons/min) |
| Tape width (mm) | BOPP, PVCadhesive tape, water-free adhesive tape |
| Table height (mm) | 580-780 |
| Dimensions L×W×H (mm) | 1730×950×(960-1550) |
| Net weight (kg) | 120 |
| Conveyor load (kg) | 30 |
| Pack size (mm) | 500×500 |
