Band Sealer
Food Plastic Continuous Band Sealer
SilverSeal ref. SEB-400
The food plastic continuous band sealer seals a 10 mm band. It arrives wired for AC 220/50, holding 0-300 °C. Set up with sealing power 300*2, motor power 50/100 5 5, conveyor size (l*w) 844*153.
- Voltage (V/Hz)
- AC 220/50
- Sealing power (W)
- 300*2
- Speed (m/min)
- 0-16(0-24)
- Sealing width (mm)
- 10
Overview

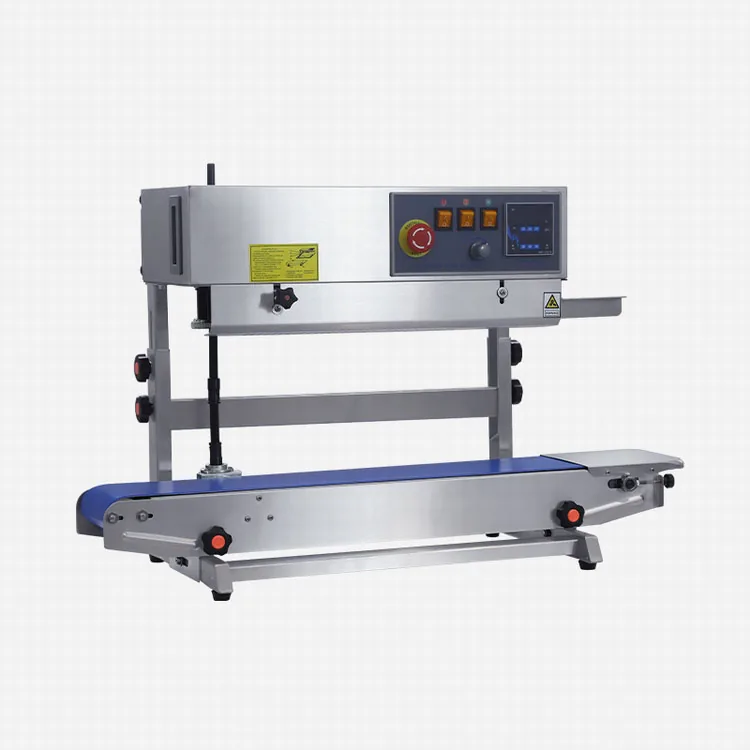

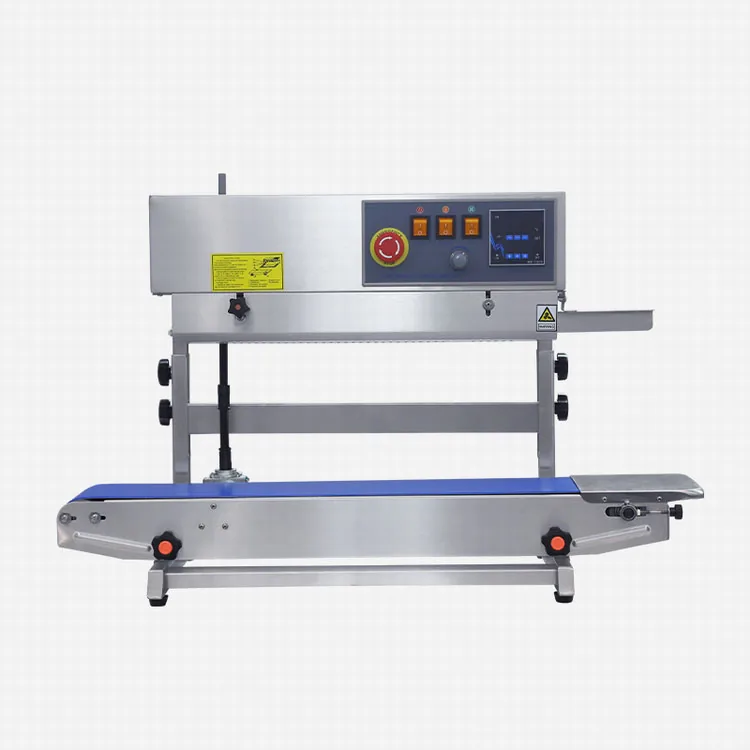

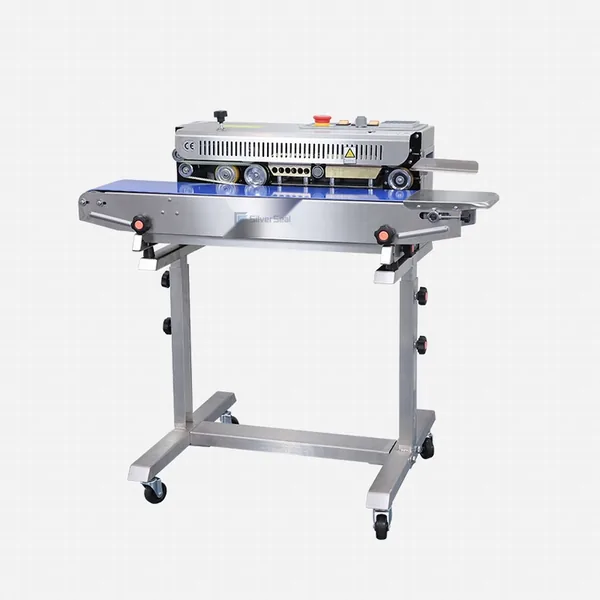

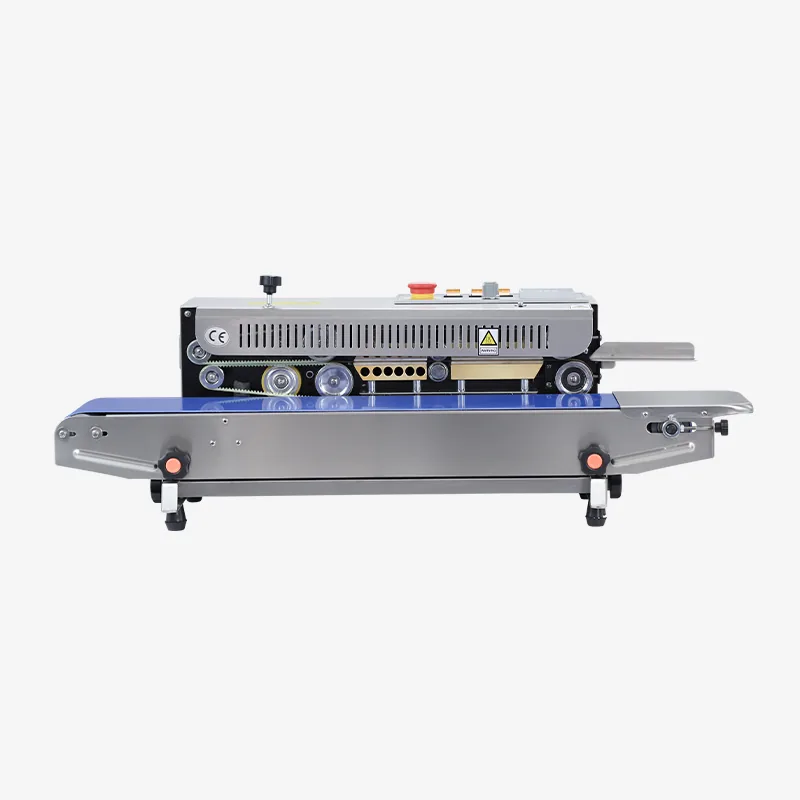

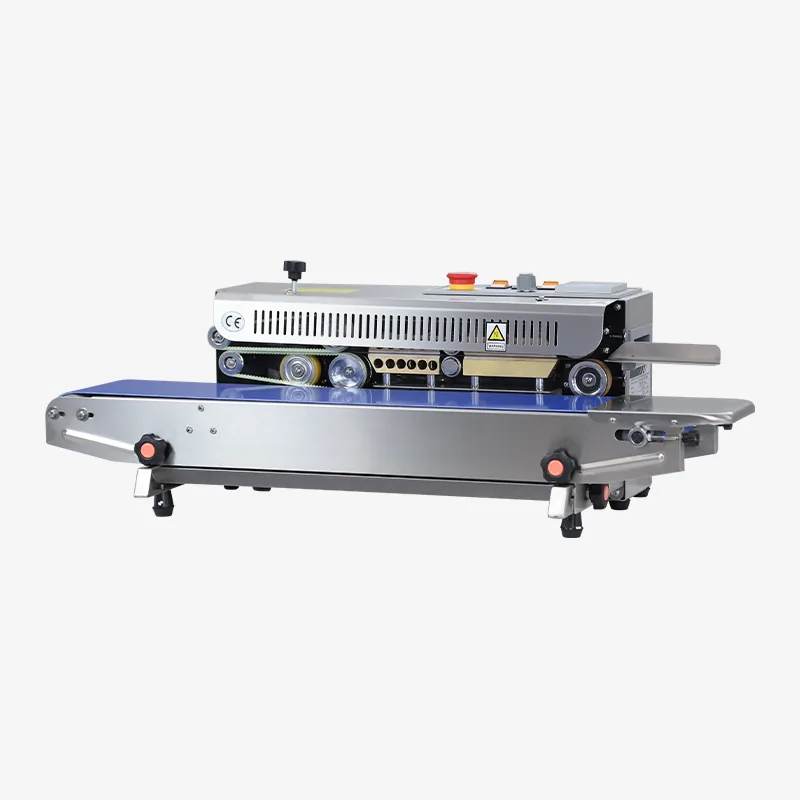

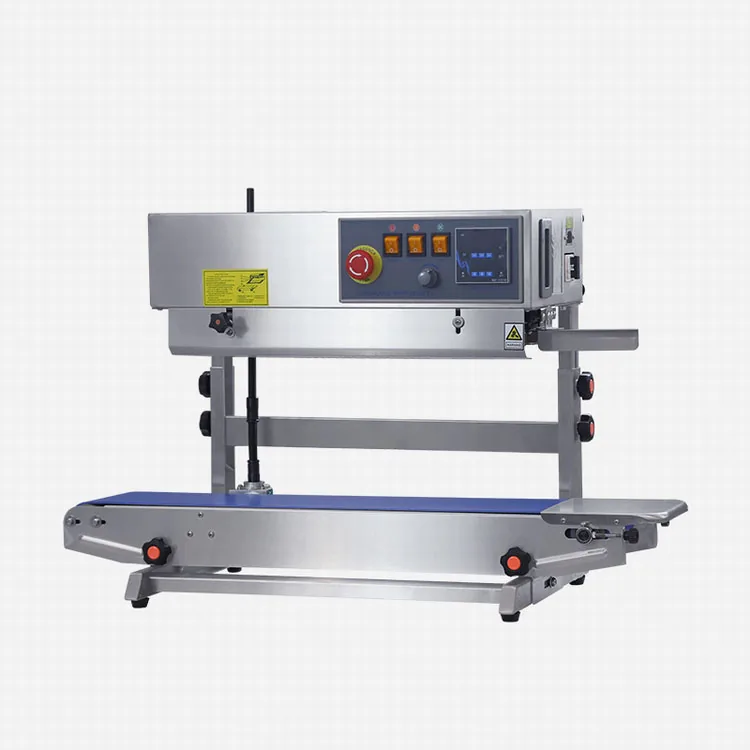

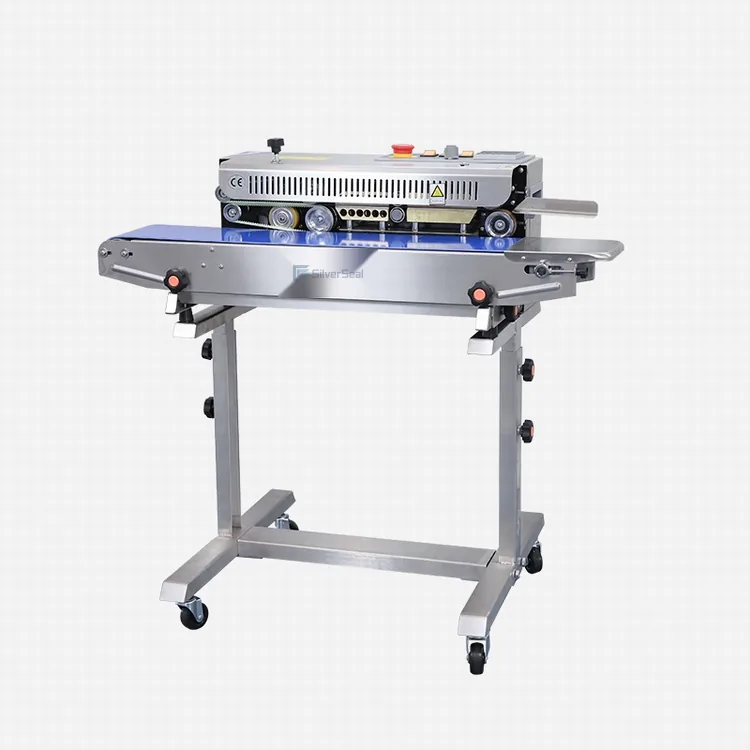

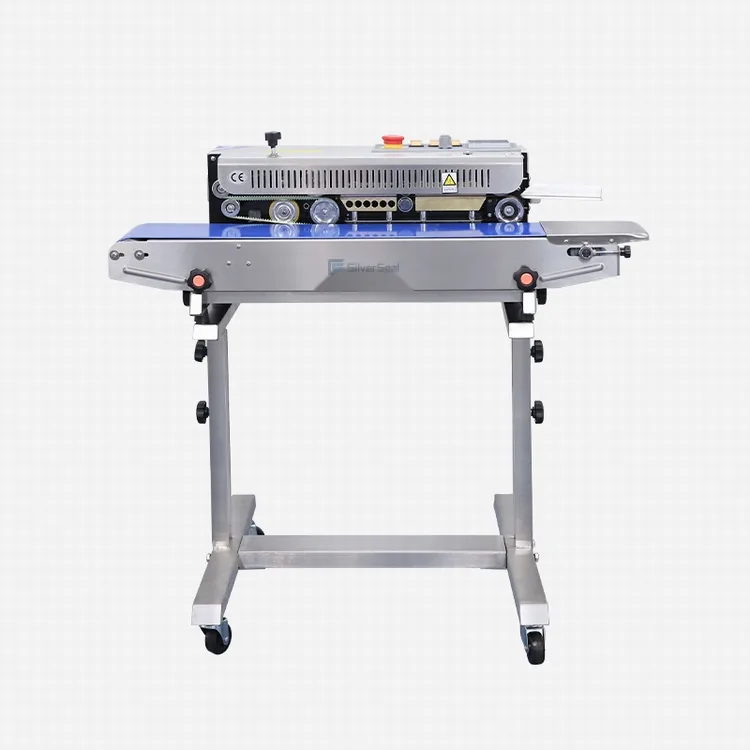

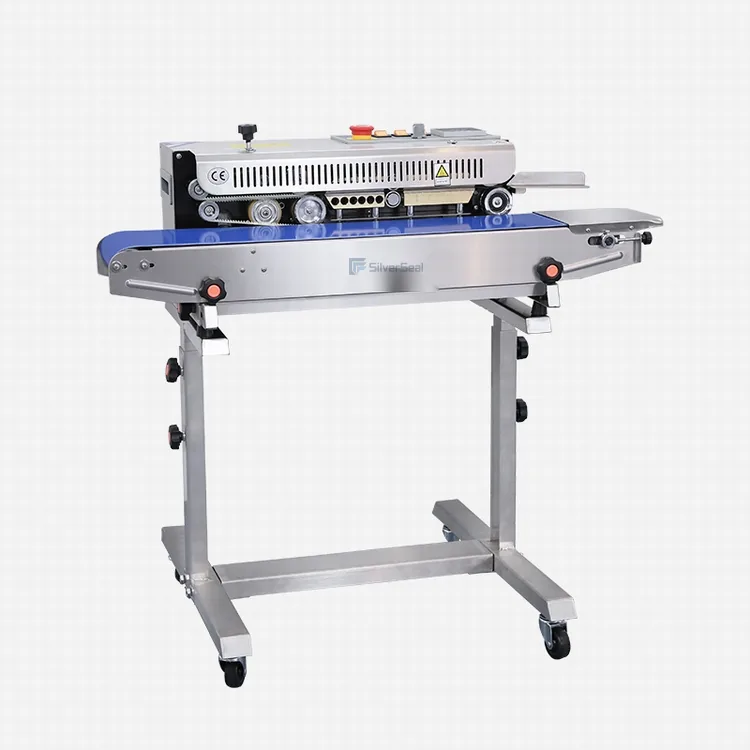

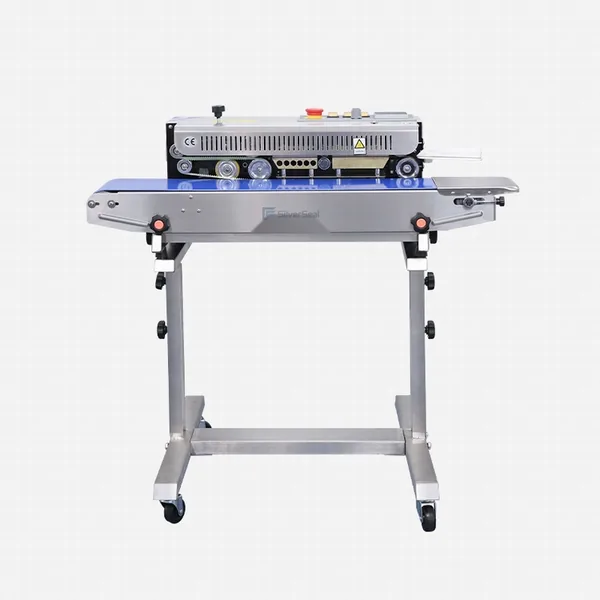

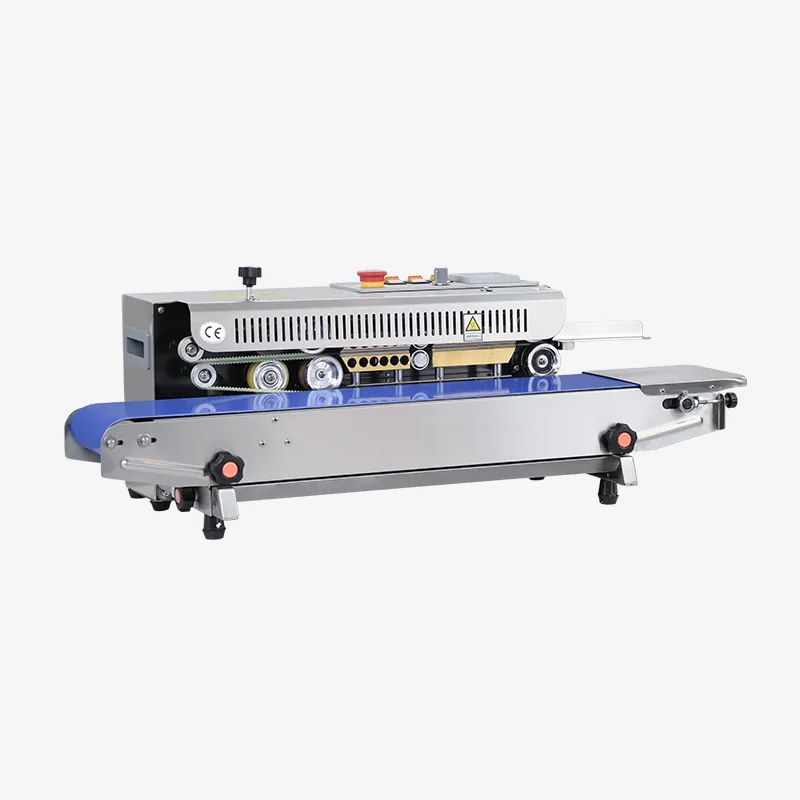

series continuous sealing machine is available in three models: horizontal model, vertical model, and floor-standing model. The machine is ideal for sealing small packages, which adopts a constant temperature control system and step-less speed regulation mechanism.
Models in this series
3 sizes share this build. The table shows only what changes between them.
| Reference | Model | Motor power (W) |
|---|---|---|
| SEB-400 | SEB-400 | 50/100 5 5 |
| SEB-405 | SEB-405 | 50/100 5 5 |
| SEB-410 | SEB-410 | 50/100 |
Technical specifications
| Model | SEB-400 |
|---|---|
| Voltage (V/Hz) | AC 220/50 |
| Sealing power (W) | 300*2 |
| Motor power (W) | 50/100 5 5 |
| Speed (m/min) | 0-16(0-24) |
| Sealing width (mm) | 10 |
| Temperature range (°C) | 0-300 |
| Printing type | Steel embossing wheel for printing(optional) |
| Conveyor Size (L*W) (mm) | 844*153 |
| Max.Distance from Sealing Center to Bag Opening (mm) | 21 |
