SEB-120
1 / 7
Band Sealer
Band Sealer

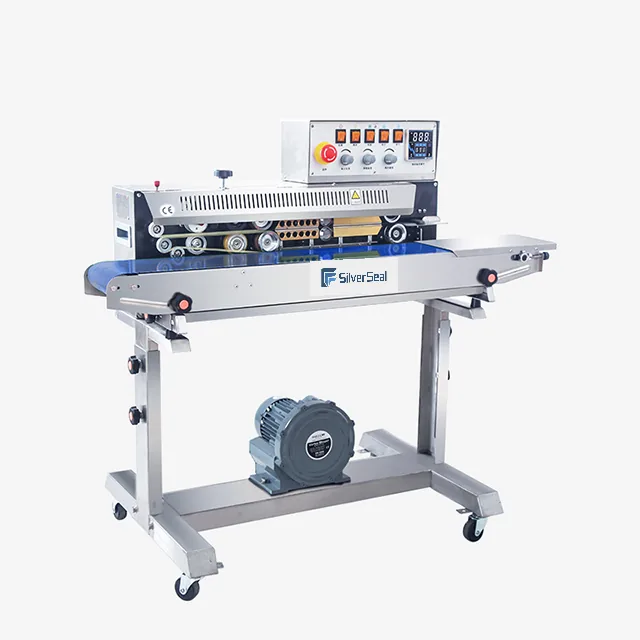

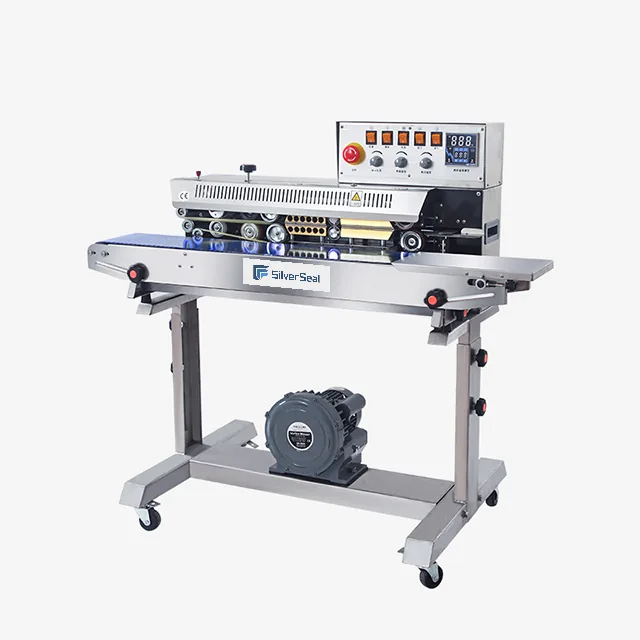

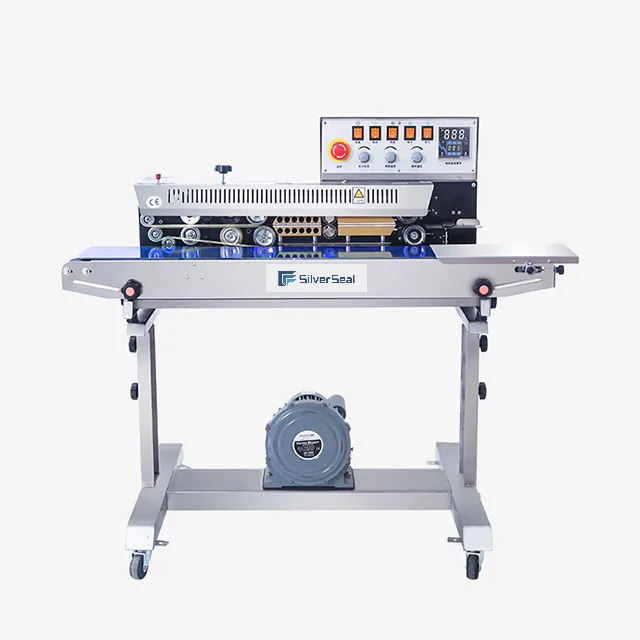

SilverSeal ref. SEB-205
The band sealer runs at 0-12 m/min, seals a 10 mm band, draws 300×2 W. It sits mid-range among the 6 band sealers we list (50 kg), between the SEB-455 and SEB-120 units. It arrives wired for AC 220/50 110/60, holding 0-300 °C, coding by solid-ink roller. Plan for a 1050×900×900 mm footprint on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Sealing power (W)
- 300×2
- Speed (m/min)
- 0-12
- Sealing width (mm)
- 10
- Dimensions L×W×H (mm)
- 1050×900×900
- Net weight (kg)
- 50
Overview
- Reliable performance
- Simple operation
- Convenient maintenance
- Wide range of application
- Constant temperature control system
- Stepless speed regulation
- With printing function
- Various color ink wheels are selectable
- Counting device is optional
- The function of aerating Application:
Models in this series
3 sizes share this build. The table shows only what changes between them.
| Reference | Model | Sealing power (W) | Printing type | Dimensions L×W×H (mm) | Net weight (kg) | Conveyor table (mm) | Diameter of nozzle for air flushing source | Moter Power (W) | Pump power (W) | Sealing centre distance (mm) | Motor power (W) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SEB-205 | SEB-205 | 300×2 | Solid-Ink Roller | 1050×900×900 | 50 | 954×153 | 8mm | 50 | 185 | 20-40 | — |

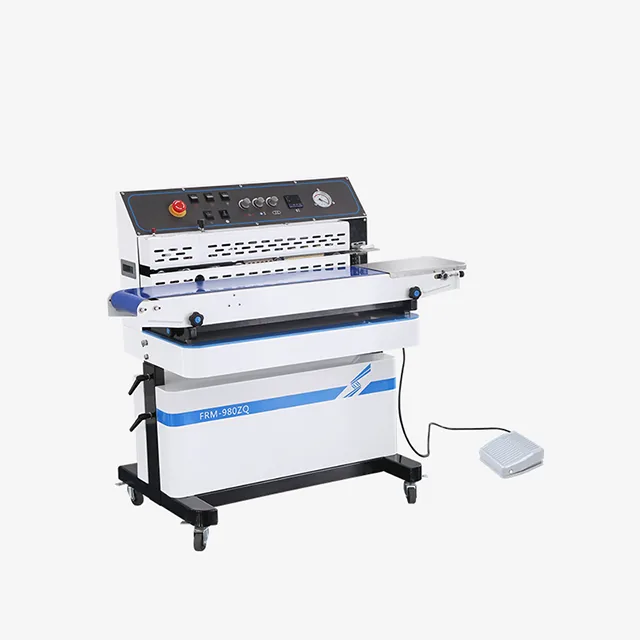

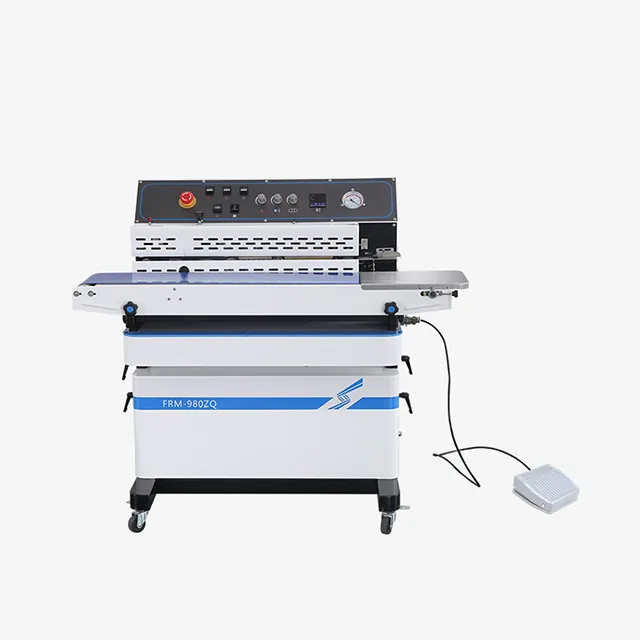

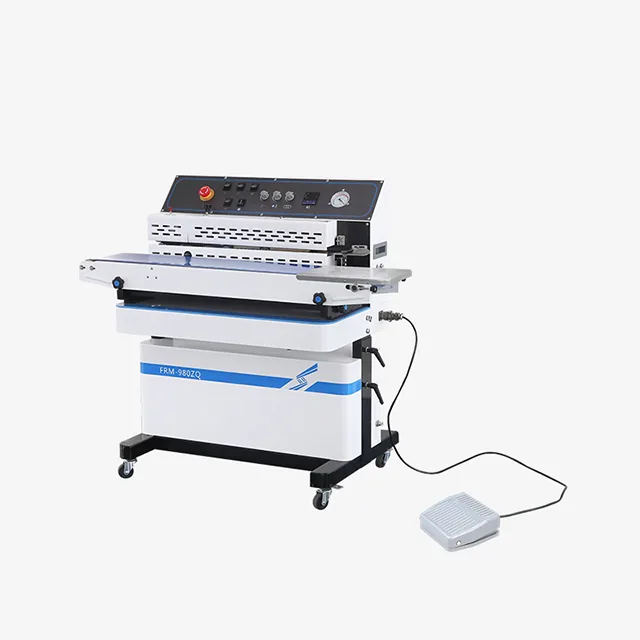

| SEB-445 | SEB-445 | 300*2 | Solid Ink Roller | 1050×550×900 | 67 | 1054×203 | 8mm | — | 750 | 10-40 | 50 |

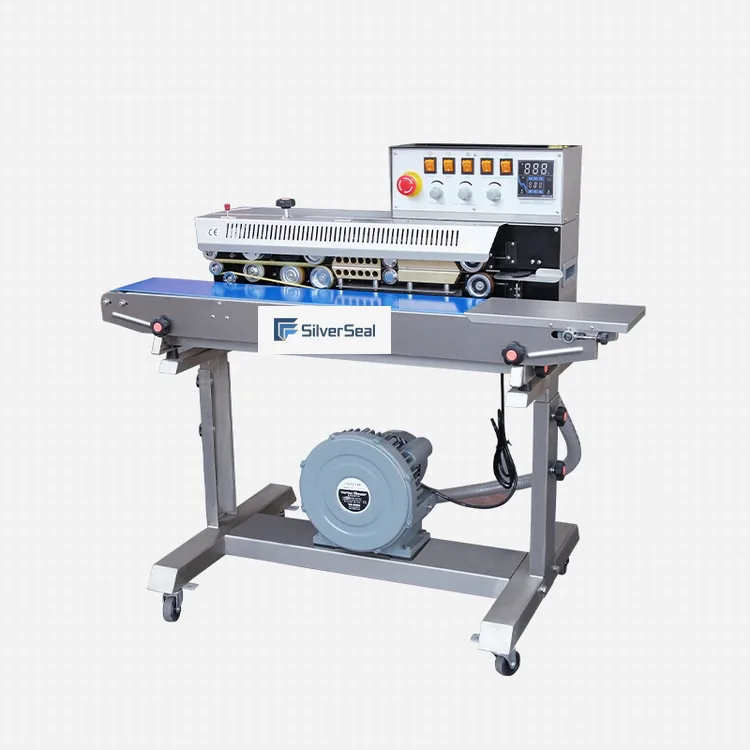

| SEB-450 | SEB-450 | 300×2 | Solid-Ink Roller | 1050×900×900 | 50 | 954×153 | — | 50 | 1200 | 20-40 | — |
Technical specifications
| Model | SEB-205 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Sealing power (W) | 300×2 |
| Heating power (W) | 40×2 |
| Speed (m/min) | 0-12 |
| Sealing width (mm) | 10 |
| Temperature range (°C) | 0-300 |
| Printing type | Solid-Ink Roller |
| Dimensions L×W×H (mm) | 1050×900×900 |
| Net weight (kg) | 50 |
| Conveyor load (kg) | ≤10 |
| Conveyor table (mm) | 954×153 |
| Diameter of nozzle for air flushing source | 8mm |
| Moter Power (W) | 50 |
| Pump power (W) | 185 |
| Sealing centre distance (mm) | 20-40 |
