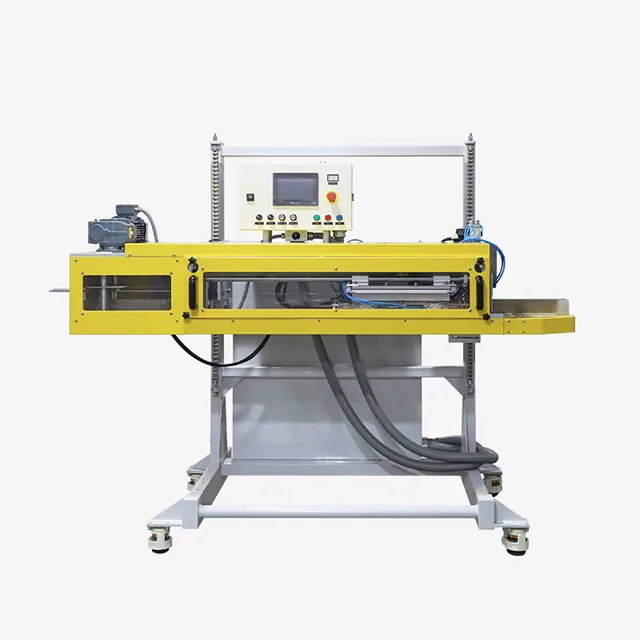

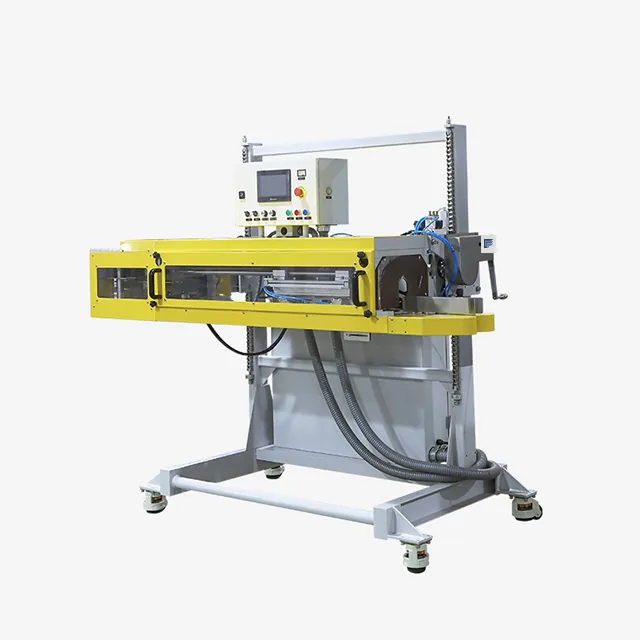

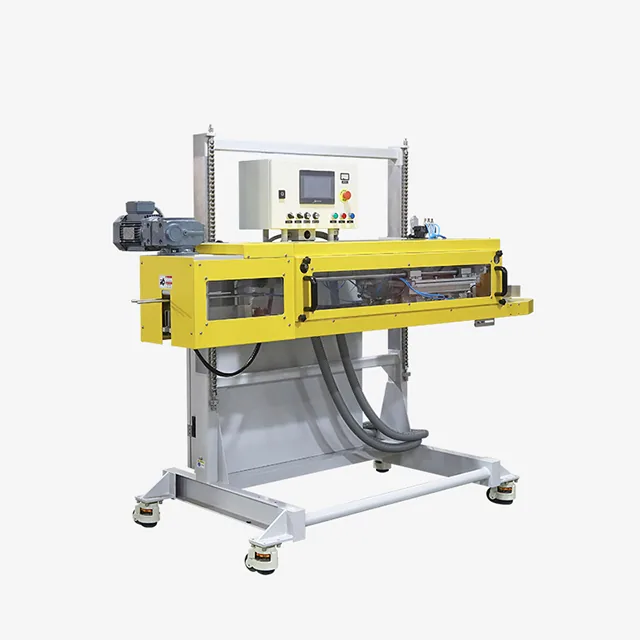

Heavy Duty Plastic Bag Packaging Machine
Heavy Duty Plastic Bag Packaging Machine
SilverSeal ref. SEA-240
The heavy duty plastic bag packaging machine runs at 0-12 m/min, seals a 5 mm band. It sits mid-range among the 8 heavy duty plastic bag packaging machines we list (0-12 m/min), between the SEA-255 and SEA-275 units. It arrives wired for AC 380/50 3PH, holding 0-300 °C.
- Voltage (V/Hz)
- AC 380/50 3PH
- Speed (m/min)
- 0-12
- Sealing width (mm)
- 5
- Dimensions L×W×H (mm)
- 2500X1022X1800
Overview
• The sealing module can be moved out for easy maintenance. • The elastic pressing mechanism is used to make the melted material bag fit better • High working efficiency (Up to 1800bags/hour) • More suitable for PE bags in M fold type • Suitable in industry of process industries product, pet food etc.
Technical specifications
| Model | SEA-240 |
|---|---|
| Voltage (V/Hz) | AC 380/50 3PH |
| Speed (m/min) | 0-12 |
| Sealing width (mm) | 5 |
| Temperature range (°C) | 0-300 |
| Dimensions L×W×H (mm) | 2500X1022X1800 |
| Gas Source Pressure (Mpa) | 0.6 |
| Gross Power (KW) | 5 |
| Heater Move Stroke | 550 |
| Material of Bag | PE, Polypropylene (PP) |
| Max.bag Width (mm) | 460 |
| Sealing centre distance (mm) | 800-1400 |
| The Minimum Distance Between The Top Of Bag (mm) | 180 |
| Total Thickness of Bag | ≤0.8 |
