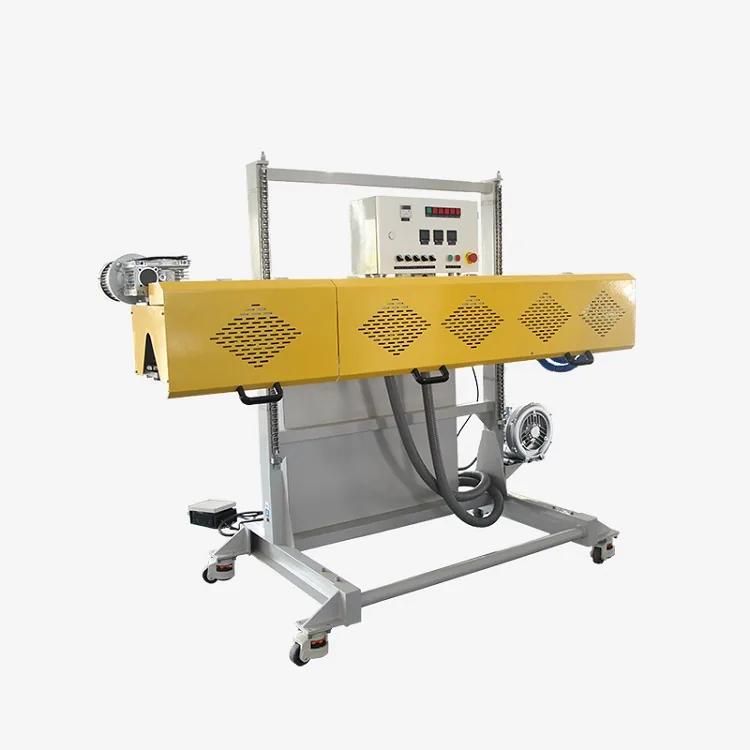

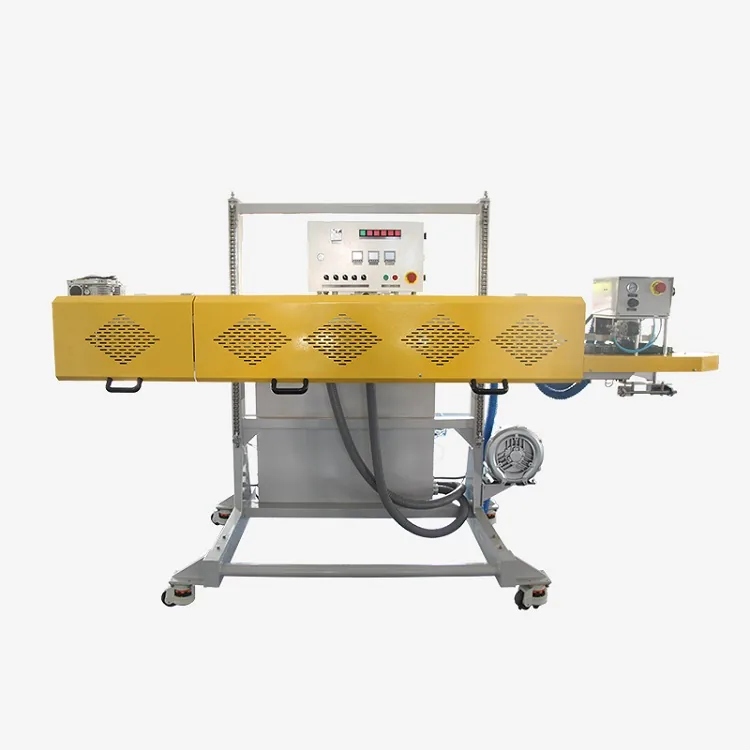

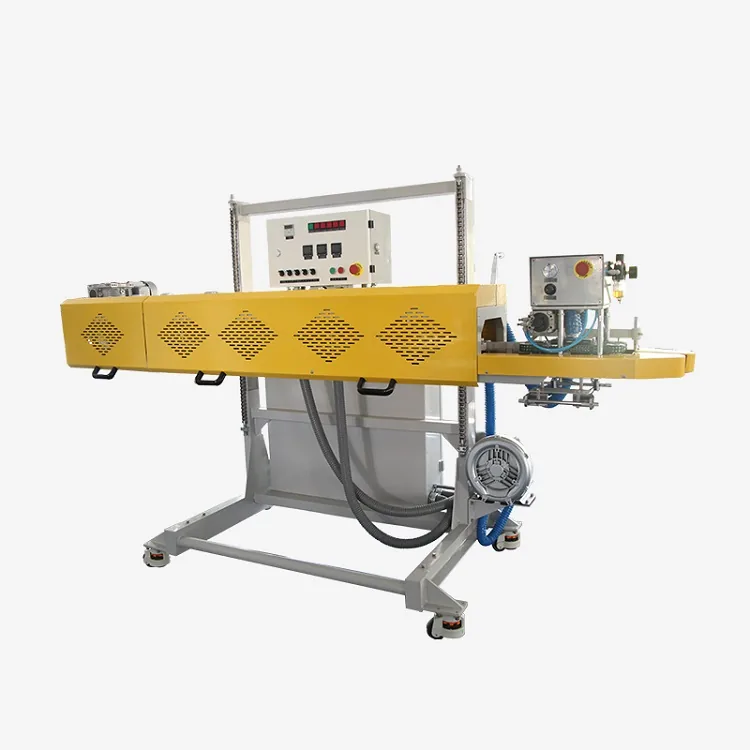

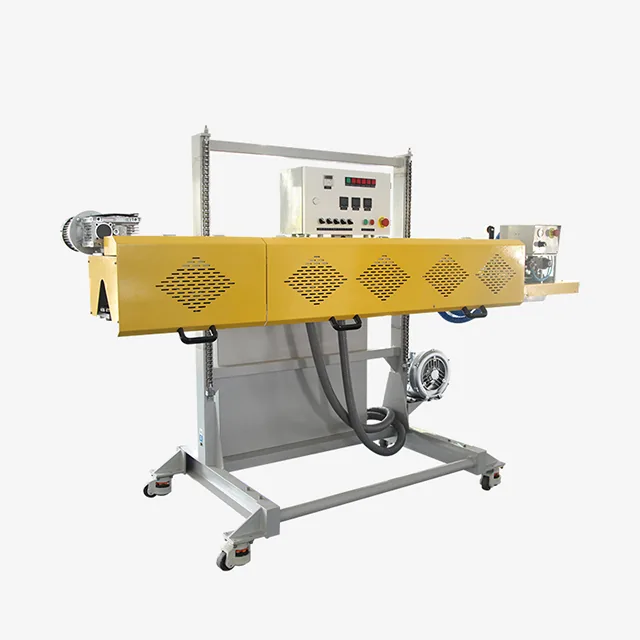

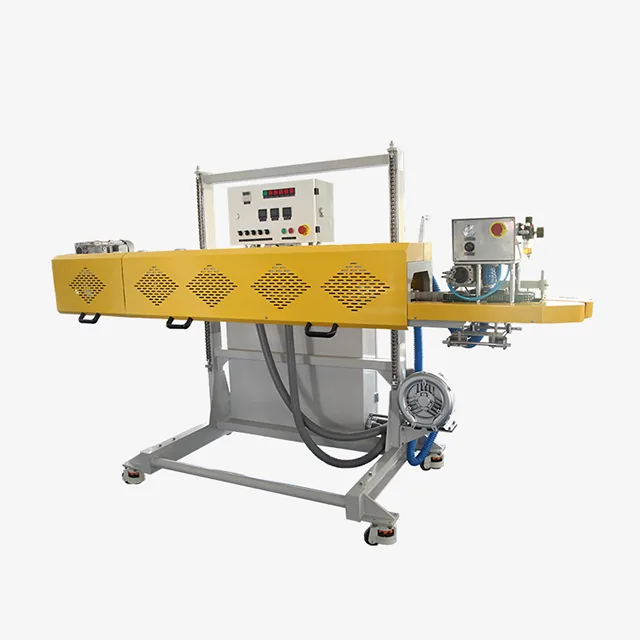

Heavy Duty Plastic Bag Packaging Machine
Heavy Duty Plastic Bag Packaging Machine
SilverSeal ref. SEA-220
The heavy duty plastic bag packaging machine runs at 0-12 m/min, seals a 8-10 mm band. It sits mid-range among the 5 heavy duty plastic bag packaging machines we list (320 kg), between the SEA-275 and SEA-255 units. It arrives wired for （ 3PH ） AC 380/50, fed from a 0.6 MPa air line, holding 0-300 °C. Plan for a 2830×950×1800 mm footprint on the floor.
- Voltage (V/Hz)
- （ 3PH ） AC 380/50
- Speed (m/min)
- 0-12
- Sealing width (mm)
- 8-10
- Dimensions L×W×H (mm)
- 2830×950×1800
- Net weight (kg)
- 320
Models in this series
4 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Heating power (W) | Temperature range (°C) | Dimensions L×W×H (mm) | Net weight (kg) | Sealing centre distance (mm) |
|---|---|---|---|---|---|---|---|
| SEA-220 | SEA-220 | （ 3PH ） AC 380/50 | 0.5×6 | 0-300 | 2830×950×1800 | 320 | 750-1450 |
| SEA-225 | SEA-225 | （ 3PH ） AC 380/50 | 0.5×6 | 0-300 | 2830×950×1800 | 320 | 750-1450 |
| SEA-230 | SEA-230 | （3PH）AC 380/50 | — | 0-400 | 3015×950×1800 | 350 | 800-1400 |
| SEA-235 | SEA-235 | （3PH）AC 380/50 | — | 0-400 | 3015×950×1800 | 350 | 800-1400 |
Technical specifications
| Model | SEA-220 |
|---|---|
| Voltage (V/Hz) | （ 3PH ） AC 380/50 |
| Motor power (W) | 0.75 |
| Heating power (W) | 0.5×6 |
| Speed (m/min) | 0-12 |
| Sealing width (mm) | 8-10 |
| Temperature range (°C) | 0-300 |
| Air supply (MPa) | 0.6 |
| Dimensions L×W×H (mm) | 2830×950×1800 |
| Net weight (kg) | 320 |
| Bag Thickness (mm) | ≤0.8 |
| Cooling Type | Air cooling |
| Film (mm) | PE 、 PP 、 film |
| Sealing centre distance (mm) | 750-1450 |
