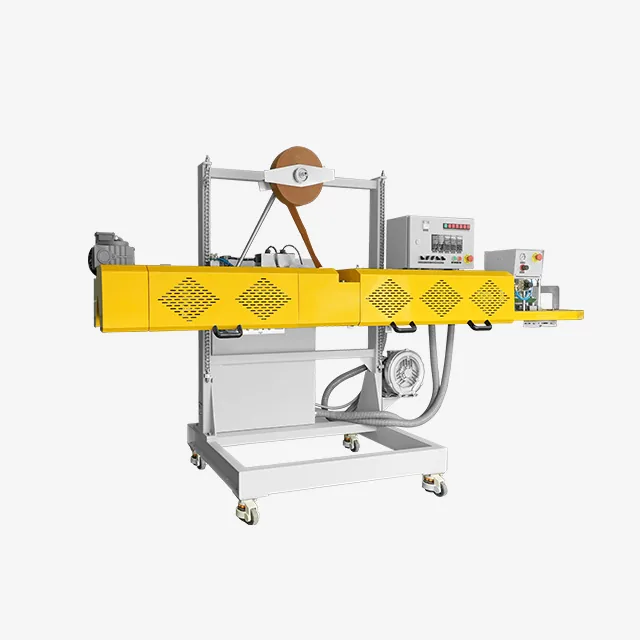

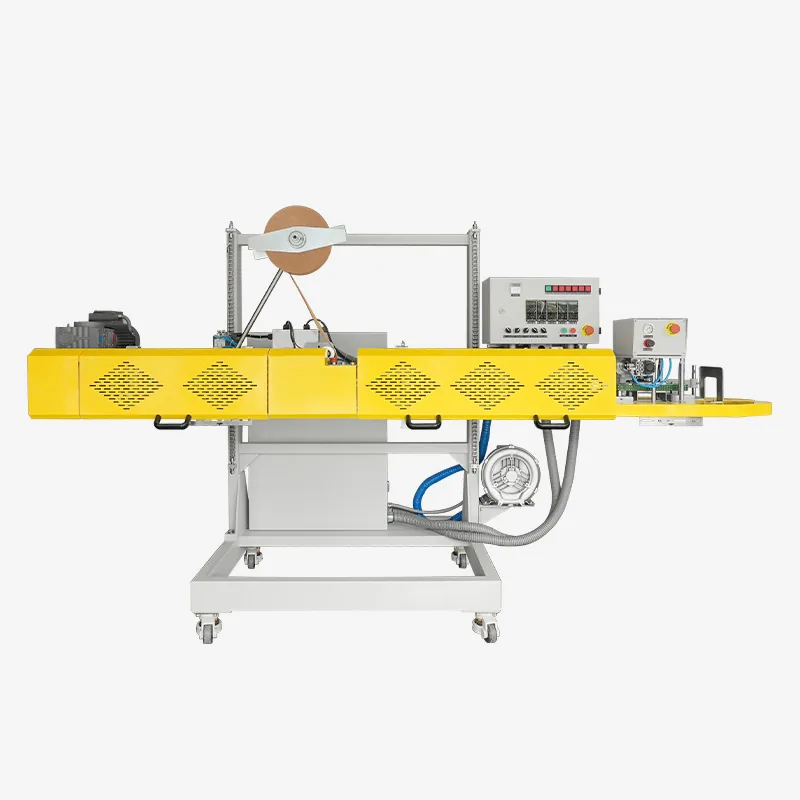

Heavy Duty Plastic Bag Packaging Machine SEA-215 — view 1 of 2Heavy Duty Plastic Bag Packaging Machine SEA-215 — view 2 of 2

1 / 2

Heavy Duty Plastic Bag Packaging Machine

Heavy Duty Plastic Bag Packaging Machine

SilverSeal ref. SEA-215

The heavy duty plastic bag packaging machine runs at 0-11 m/min, draws 0.5×10 W. It sits mid-range among the 8 heavy duty plastic bag packaging machines we list (0-11 m/min), between the SEA-255 and SEA-275 units. It arrives wired for AC 380/50. Plan for a 3050×950×1800 mm footprint on the floor.

Voltage (V/Hz)
AC 380/50
Sealing power (W)
0.5×10
Speed (m/min)
0-11
Dimensions L×W×H (mm)
3050×950×1800
Request a quote

Overview

Product Description The machine is suitable for packing paper bag, multi-ply paper bag and inner plastic layers. According to the program, it can finish the processes of hot sealing inner plastic bags, pressing, trimming, side-line folding and impressing, bag top folding, packing thermosol paper tape, pressing paper and counting automatically, and deduster (optional). Type B is applicable to open the bottom of the paper bag, and pick up the top of the bag, and then the inner bag will open automatically. This packing way is applicable to that the material of inner plastic bag and packing goods are the same. When need adding the materials, we just can put it into them together with the bags, so that it's very convenient for adding material and also is free of recycling these packing bags.

Technical specifications

ModelSEA-215
Voltage (V/Hz)AC 380/50
Sealing power (W)0.5×10
Motor power (W)0.75
Speed (m/min)0-11
Temperature range (°C)0-400 adjustable
Dimensions L×W×H (mm)3050×950×1800
ApplicationThree-layer paper bag ,PE film inner liner sealing , one-folding and thermosal paper tape.
Specification of Hot Melt Paper Tape (mm)Width 75mm
