Solid-ink Coding Machine
Solid-ink Coding Machine
SilverSeal ref. SEM-150
The solid-ink coding machine draws 230 W. It arrives wired for AC 220/50 110/60. Plan for a 430×445×310 mm footprint and 30 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 230
- Dimensions L×W×H (mm)
- 430×445×310
- Net weight (kg)
- 30
Overview
Impress or Solid-Ink Coding Machine is suitable for printing labels on papers, thin cardboard, non-absorbent plastic film and aluminum film with solid ink or just embossing printing without solid ink. Instant print and instant dry, and strong adhesion. It is applied to objects in wide range of thickness, characterized high definition. The machine with function of embossing printing but without heating system is available.
- Reliable performance
- Simple operation
- Convenient maintenance
- Cost-effective Application:
- Reliable performance
- Simple operation
- Convenient maintenance
- Cost-effective Application:
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Dimensions L×W×H (mm) | Net weight (kg) | Object Size (mm) |
|---|---|---|---|---|

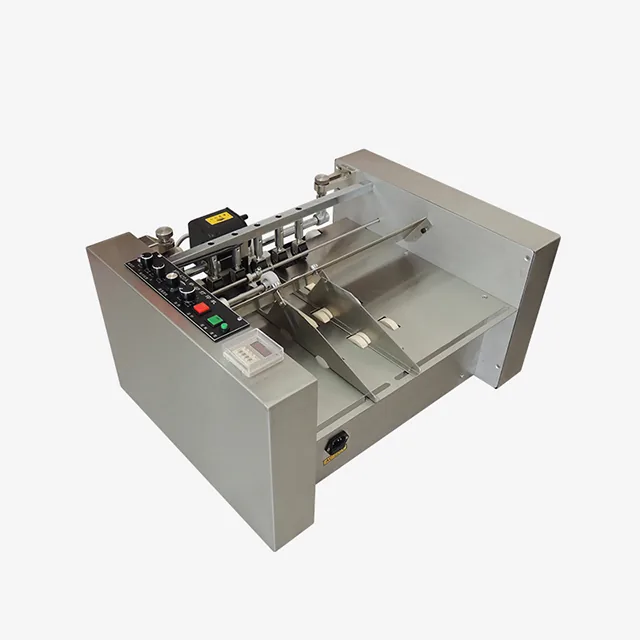

| SEM-150 | SEM-150 | 430×445×310 | 30 | Length: 60-600 Width: 50-300 |

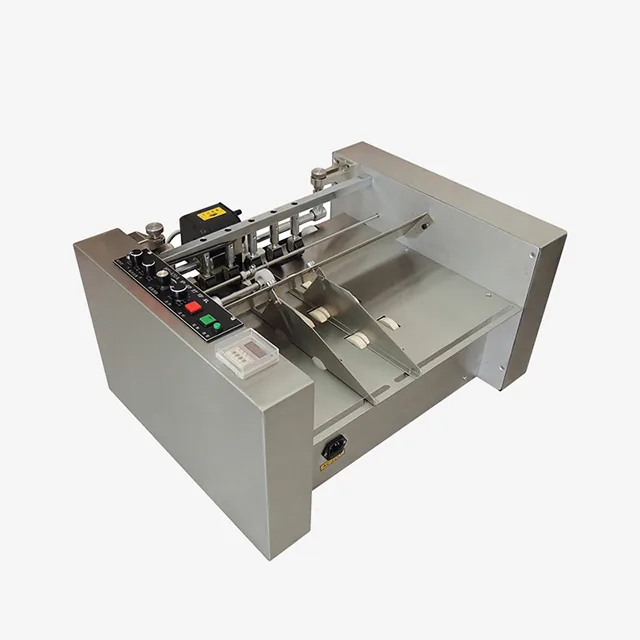

| SEM-165 | SEM-165 | 430×565×310 | 34 | length: 60-600 Width: 50-420 |
Technical specifications
| Model | SEM-150 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 230 |
| Printing type | Embossing printing or Solid ink |
| Dimensions L×W×H (mm) | 430×445×310 |
| Net weight (kg) | 30 |
| Object Size (mm) | Length: 60-600 Width: 50-300 |
| Object Thickness (mm) | 0.05-3.0 |
| Printing Speed (pcs/min) | ≤ 300 |
| Type Size (mm) | 2.5×1.5(8PT) 2.5×2(9PT) 3×2(10.5PT) 5×2.5(18PT) |
