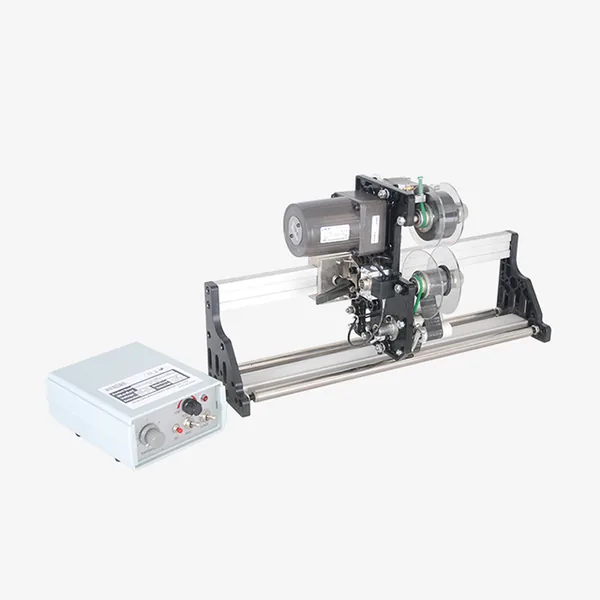

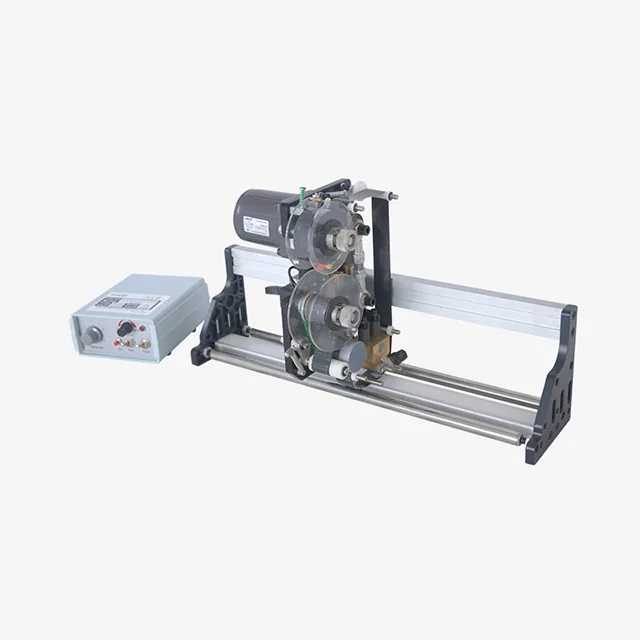

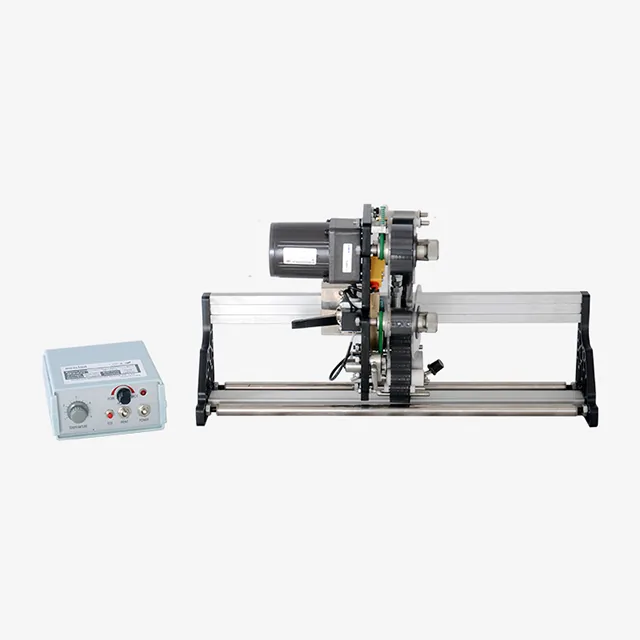

Lock-and-Follow Coding Machine
Lock-and-Follow Coding Machine
SilverSeal ref. SEM-110
The lock-and-follow coding machine draws 150 W. It arrives wired for AC 220/50 110/60. Set up with max. printing speed 200, size of character (height) 3, size of color ribbon 25 、 30 、 35 （ width ）.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 150
Overview
Lock-And-Follow Color Ribbon Printing Machine is applicable to such intermittent packing machines as box-packed packing machines, grain packing machines, etc. It uses thermal printing tape instead of ink to print, which can avoid oil contamination and keep machinery hygiene and clean. Printing position can be adjusted to all positions on the bag. Adopts hot printing ribbons to print clear, easy drying, non-tacky and indelible characters. The print speed synchronous with packing machine, the coding results accurate and efficient. The line speed of character wheel synchronizes strictly to transmission belt and print code clearly. Temperature control accurately. The running mode(working mode and standby mode) can be changed manually, this is convenient for testing.
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Max. Printing Line | Max. Printing Speed (Pcs/min) |
|---|---|---|---|---|
| SEM-110 | SEM-110 | 150 | 2×3characters ： 3lines (Max. 12 characters/line,6lines is available to be customized) | 200 |
| SEM-115 | SEM-115 | 120 | 2×3 ： 3 lines, maximum 12characters/line (Can customized to be 6lines ） | 300 |
Technical specifications
| Model | SEM-110 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 150 |
| Max. Printing Line | 2×3characters ： 3lines (Max. 12 characters/line,6lines is available to be customized) |
| Max. Printing Speed (Pcs/min) | 200 |
| Size of Character (height) (mm) | 3 |
| Size of Color Ribbon (mm) | 25 、 30 、 35 （ width ） |
