SEK-240
1 / 3

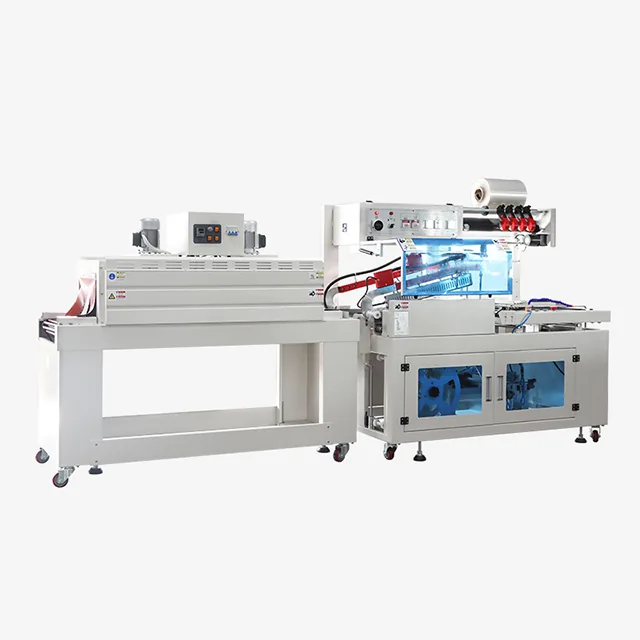

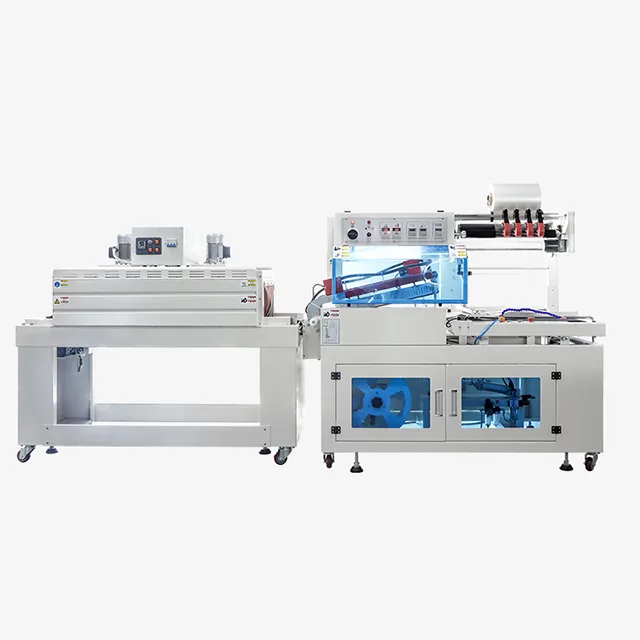

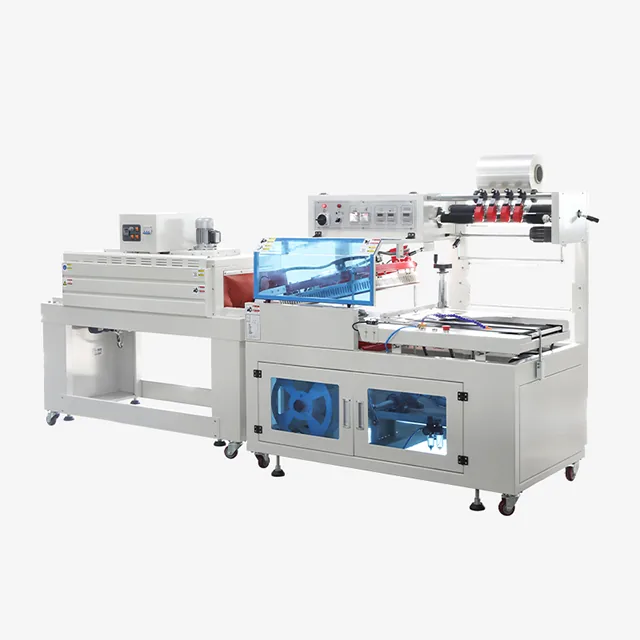

Side Sealing and Shrinking Packaging Machine
Side Sealing and Shrinking Packaging Machine
SilverSeal ref. SEK-250
The side sealing and shrinking packaging machine runs at 0~10 m/min, works a 1200×450×220 mm chamber. It is the most compact of the 3 side sealing and shrinking packaging machines in this range, at 300 kg. It arrives wired for 220V 50/60HZ, fed from a 0.5-0.8 MPa air line. Plan for a 1700×880×1450 mm footprint on the floor.
- Voltage (V/Hz)
- 220V 50/60HZ
- Power (W)
- 1.4
- Speed (m/min)
- 0~10
- Capacity
- 0-30
- Dimensions L×W×H (mm)
- 1700×880×1450
- Net weight (kg)
- 300
Overview
The + shrink wrap machine is a fully automatic unmanned L sealing cutter, widely used for lot production pipelining with high efficiency. The machine is equipped with auto film feeding & perforating device and adjustable product infeed conveying table in order to meet different requirements from different products.
Technical specifications
| Model | SEK-250 |
|---|---|
| Voltage (V/Hz) | 220V 50/60HZ |
| Power (W) | 1.4 |
| Speed (m/min) | 0~10 |
| Capacity | 0-30 |
| Tunnel L×W×H (mm) | 1200×450×220 |
| Air supply (MPa) | 0.5-0.8 |
| Dimensions L×W×H (mm) | 1700×880×1450 |
| Net weight (kg) | 300 |
| Load (kg) | 0-20 |
| Max. Sealing & Cutting Size (L×H) (mm) | 500×400 |
| Pack size (mm) | L≤400，W≤350，H≤150，W+H≤420 |
