Shrink Tunnel
Shrink Tunnel

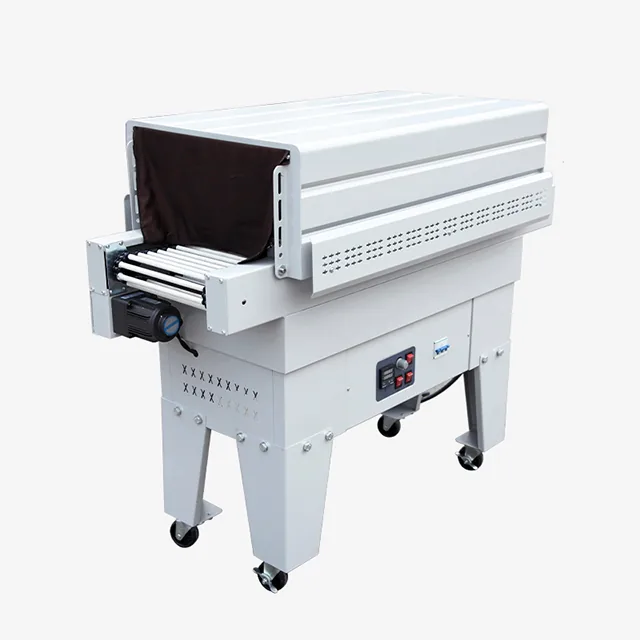

SilverSeal ref. SEK-180
The shrink tunnel runs at 0~10 m/min. Plan for a 1200×500×1050 mm footprint and 60 kg net on the floor. Set up with conveyor load 10.
- Voltage (V/Hz)
- 220/50 380/50(3PH) 220/60(3PH)
- Power (W)
- 5.1
- Speed (m/min)
- 0~10
- Dimensions L×W×H (mm)
- 1200×500×1050
- Net weight (kg)
- 60
Models in this series
13 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Power (W) | Speed (m/min) | Tunnel L×W×H (mm) | Dimensions L×W×H (mm) | Net weight (kg) | Conveyor load (kg) | Pack size (mm) | Conveying Speed (m/min) | Film (mm) | Infeed Conveyor Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

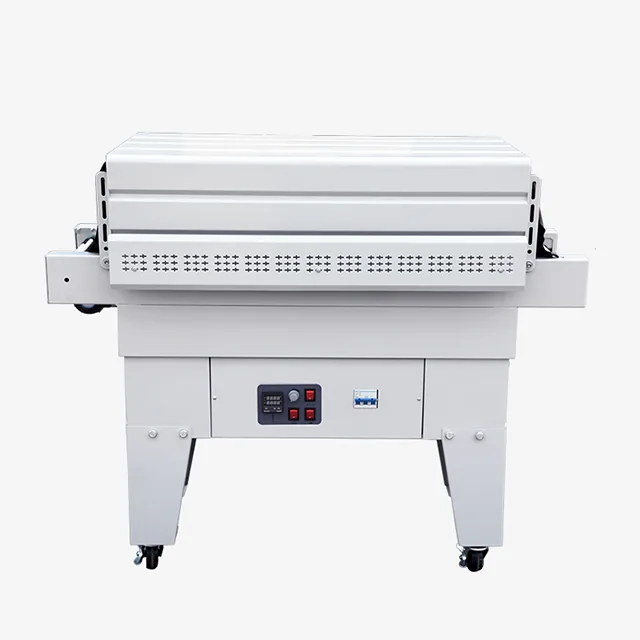

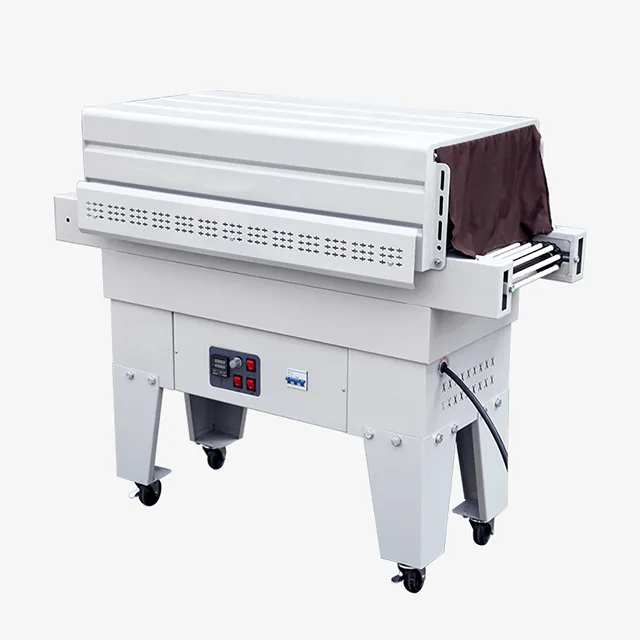

| SEK-180 | SEK-180 | 220/50 380/50(3PH) 220/60(3PH) | 5.1 | 0~10 | 900×300×(50-200) | 1200×500×1050 | 60 | 10 | — | — | — | — |
| SEK-185 | SEK-185 | 380/50(3PH) or 220/60(3PH) | 9 | 0-10 | 1000×450×250 | 1300×715×1455 | 185 | 10 | 400×200 | — | — | — |

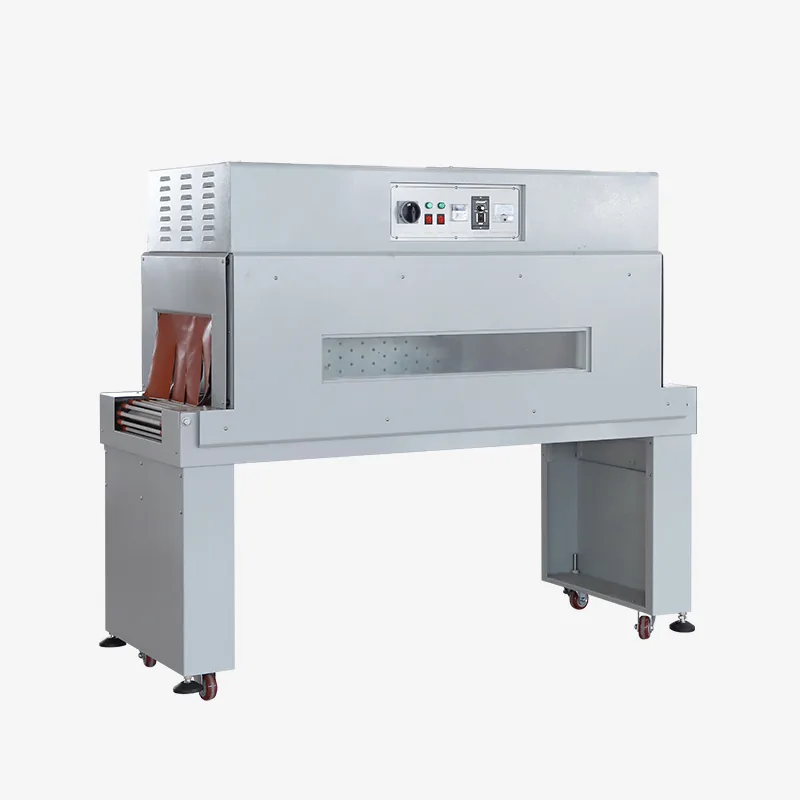

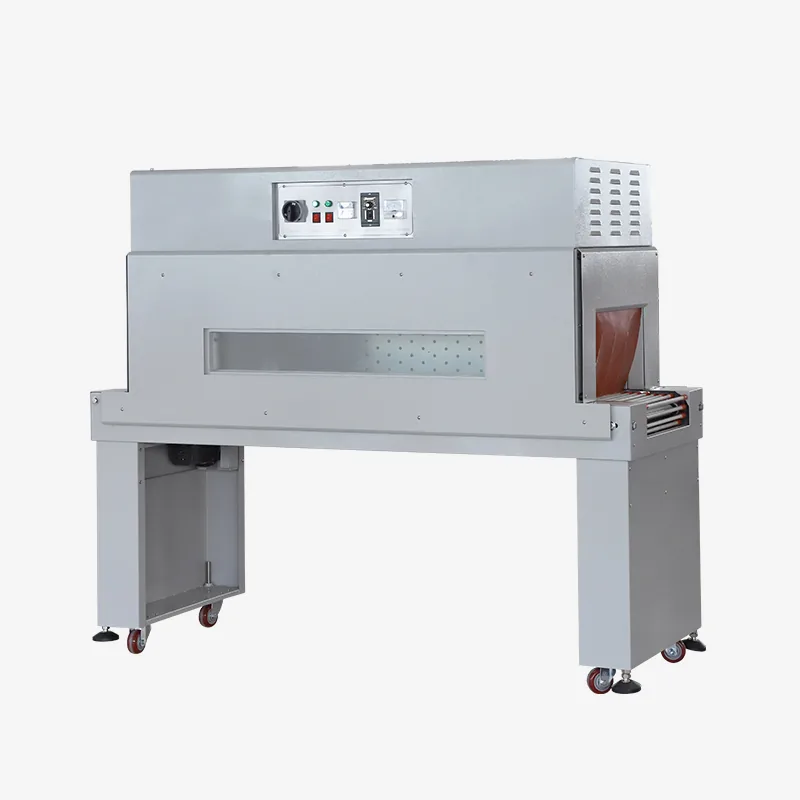

| SEK-190 | SEK-190 | 380/50(3PH) or 220/60(3PH) | 25 | 0-10 | 1227×450×250 | 1780×750×1380 | 240 | 10 | 400×200 | — | — | — |
| SEK-195 | SEK-195 | 380/50(3PH) or 220/60(3PH) | 10 | 0-10 | 1000×450×350 | 1300×715×1555 | 195 | 15 | 400×300 | — | — | — |

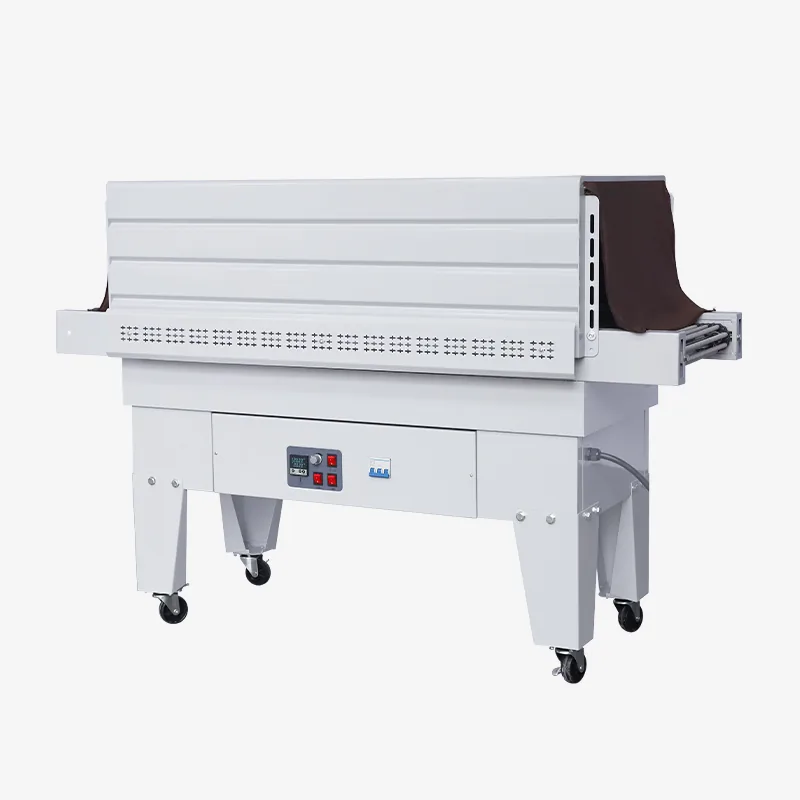

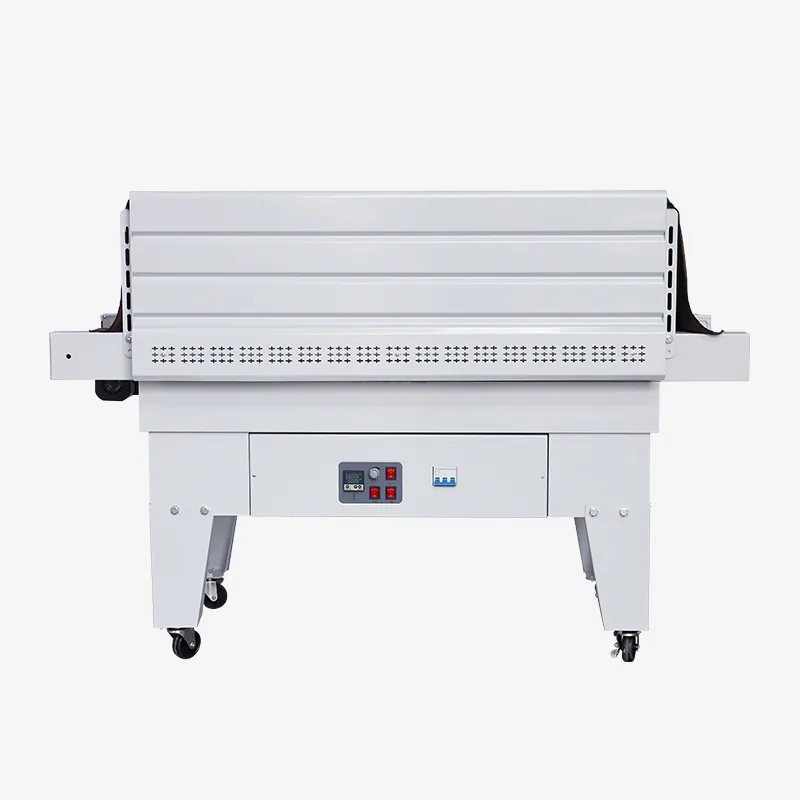

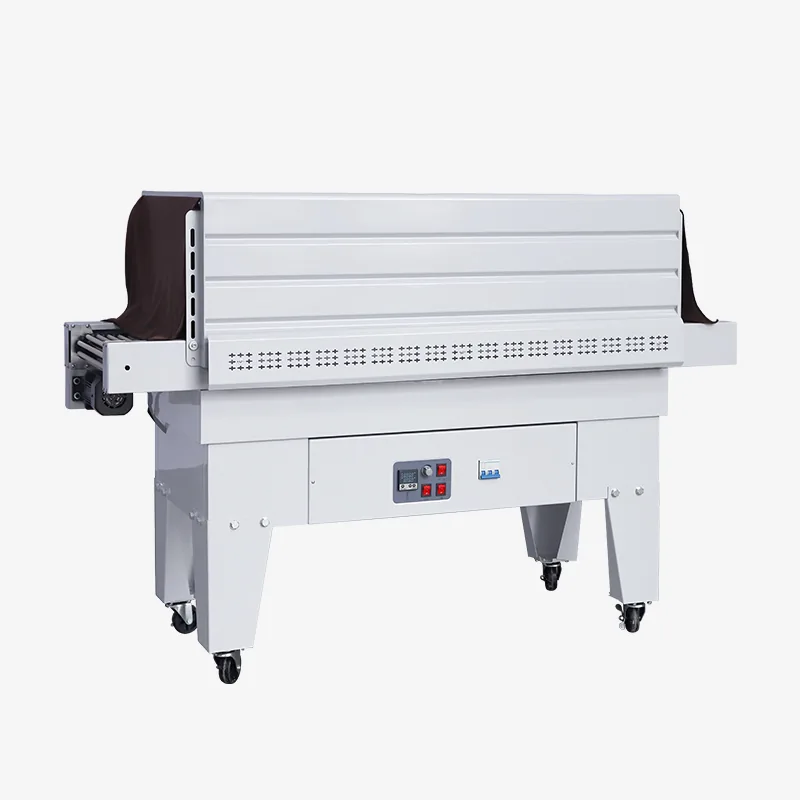

| SEK-200 | SEK-200 | 380/50(3PH) 220/60(3PH) | 9.6 | 0~10 | 1200×450×(50-350) | 1600×650×1200 | 120 | 30 | — | — | — | — |

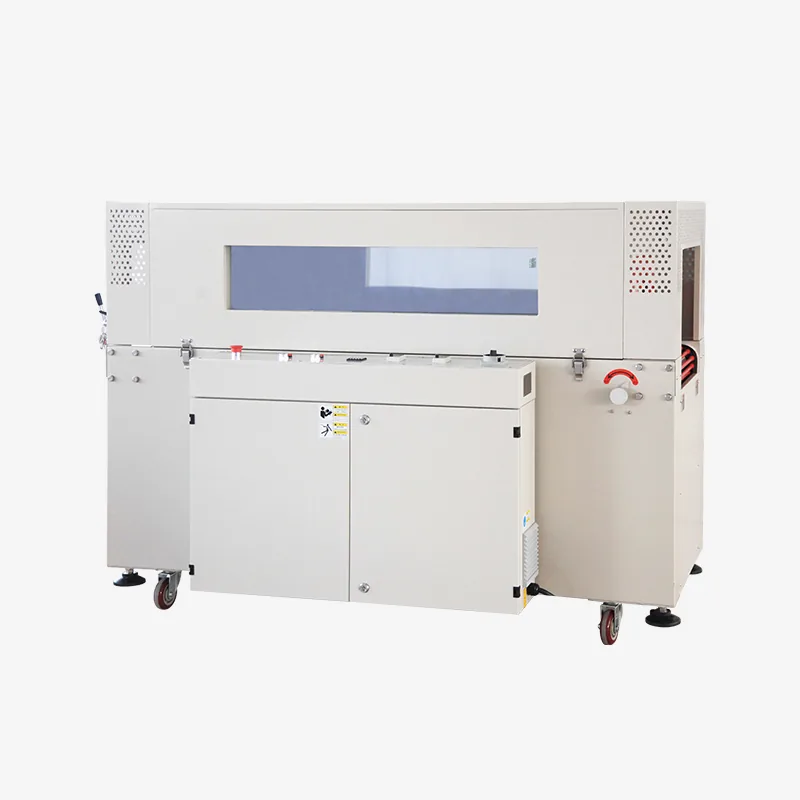

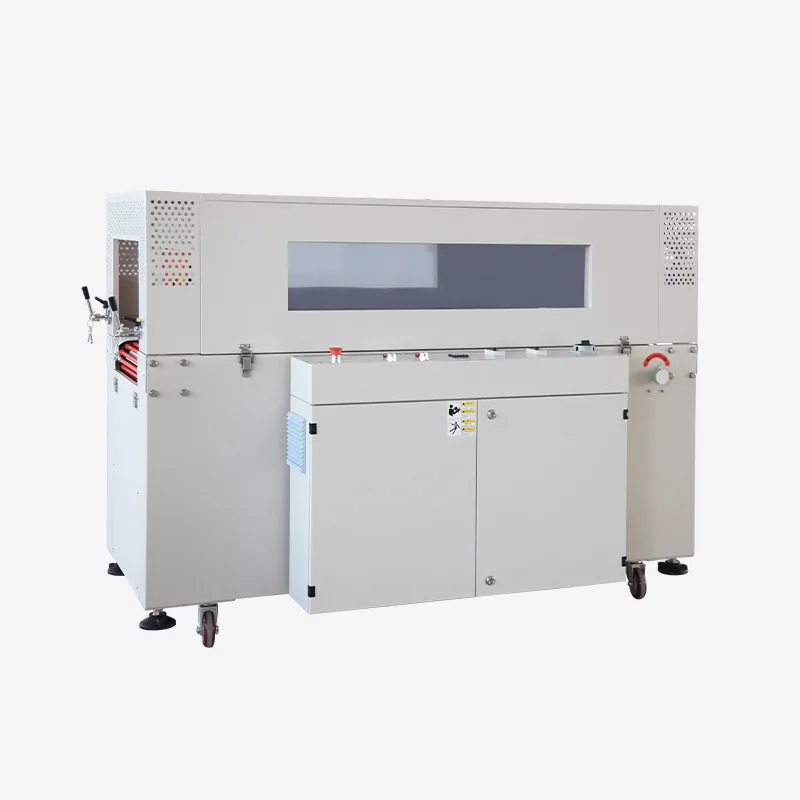

| SEK-205 | SEK-205 | 3 Phase 380/50 or 3 Phase 220/60 | 15.3 | 0~25 | 1500×500×300 | 1800×990×1300 | 300 | — | 400×250 | — | — | — |

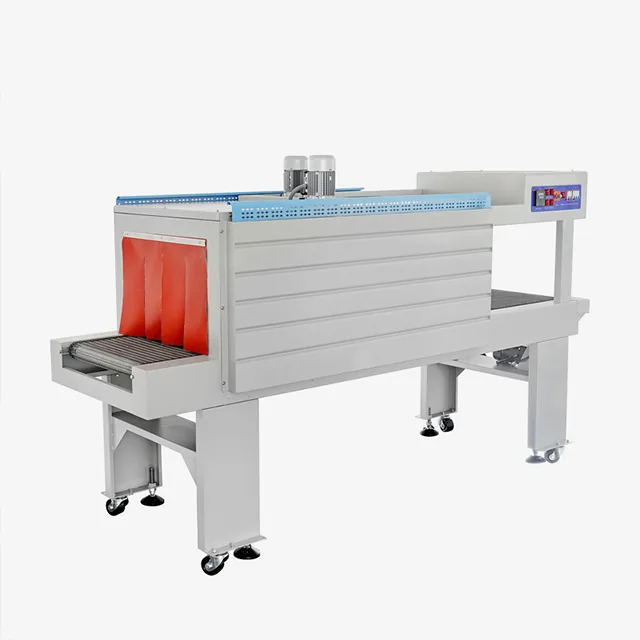

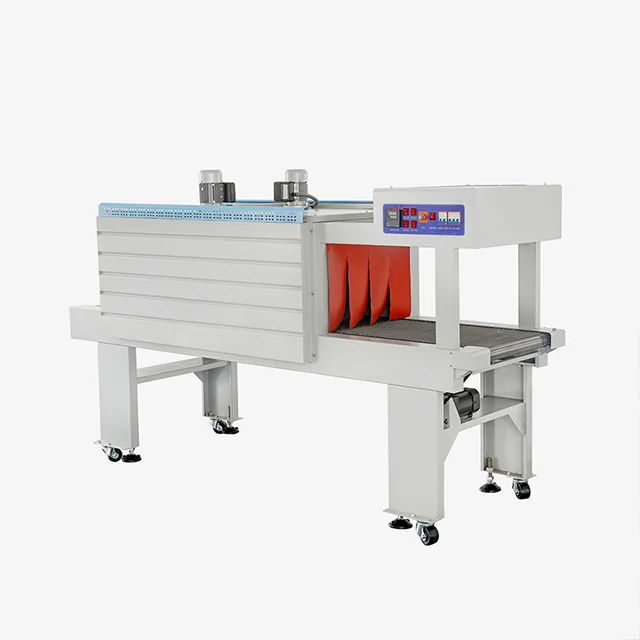

| SEK-210 | SEK-210 | 380/50(3P) 220/60(3P) | 23 | — | 1450×550×300 | 2550×850×1500 | 260 | 40 | — | 0~8 | — | — |
| SEK-215 | SEK-215 | 380/50(3P) 220/60(3P) | 27 | — | 2000×550×400 | 3100×850×1600 | 400 | 80 | — | 0~10 | — | — |
| SEK-220 | SEK-220 | 380/50(3P) 220/60(3P) | 23 | — | 1450×550×400 | 2550×850×1600 | 300 | 40 | — | 0~8 | — | — |
| SEK-225 | SEK-225 | 3 Phase 380/50 or 3 Phase 220/60 | 22 | 12 | 1800×600×400 | 4000×900×1700 | 560 | 40 | 450×350 | — | PE, PVC | 850±50 |
| SEK-230 | SEK-230 | 3 Phase 380/50 or 3 Phase 220/60 | 22 | 12 | 1800×600×500 | 4000×900×1800 | 580 | 40 | 450×450 | — | PE, PVC | 850±50 |

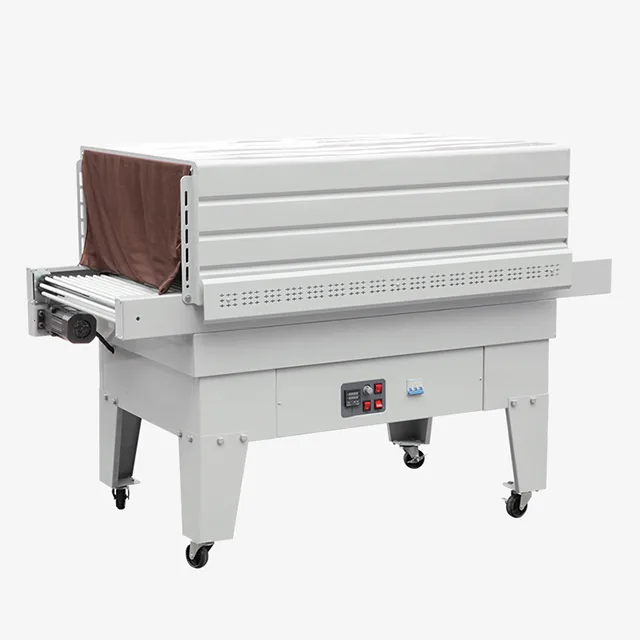

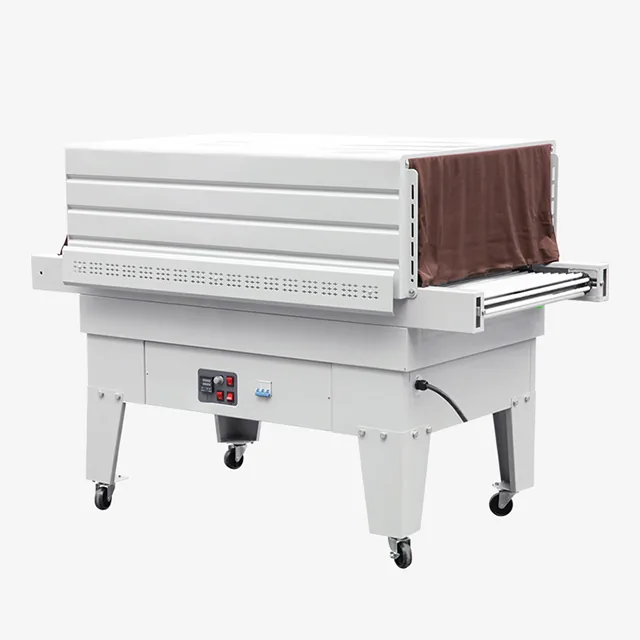

| SEK-235 | SEK-235 | 380/50(3PH) 220/60(3PH) | 9.6 | 0~10 | 1200×650×(50-350) | 1600×850×1200 | 150 | 30 | — | — | — | — |

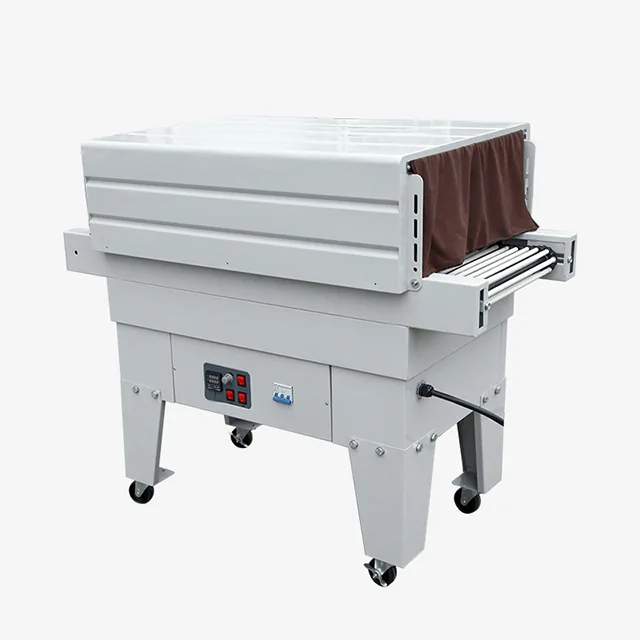

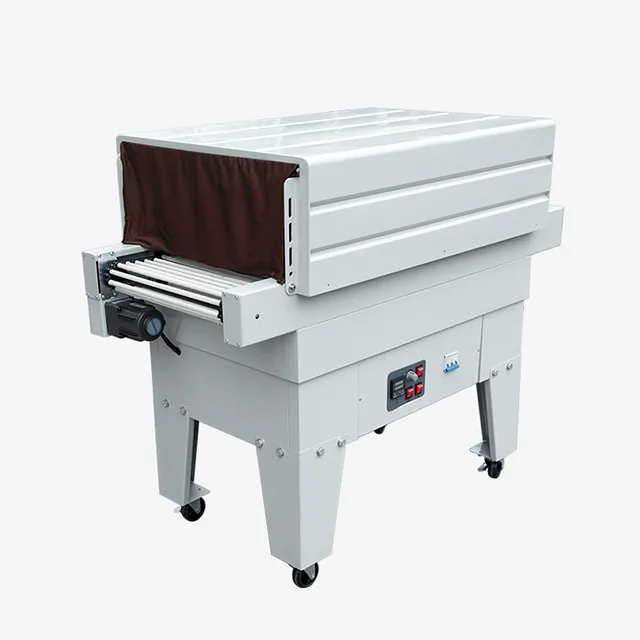

| SEK-260 | SEK-260 | 220/50 380/50(3PH) 220/60(3PH) | 6.5 | 0~10 | 900×450×(50-250) | 1200×650×1100 | 90 | 10 | — | — | — | — |
Technical specifications
| Model | SEK-180 |
|---|---|
| Voltage (V/Hz) | 220/50 380/50(3PH) 220/60(3PH) |
| Power (W) | 5.1 |
| Speed (m/min) | 0~10 |
| Tunnel L×W×H (mm) | 900×300×(50-200) |
| Dimensions L×W×H (mm) | 1200×500×1050 |
| Net weight (kg) | 60 |
| Conveyor load (kg) | 10 |
