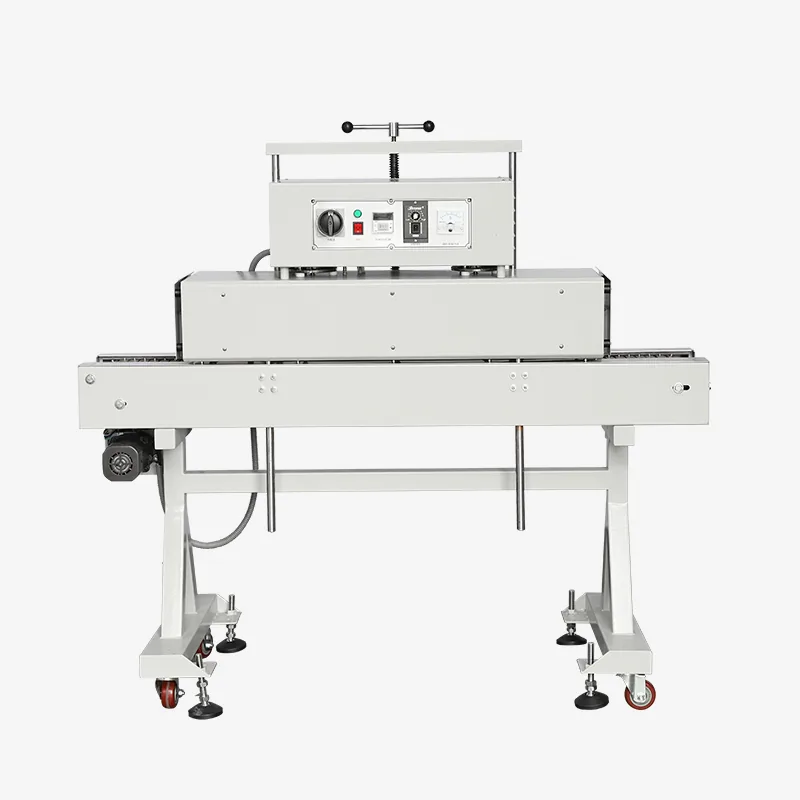

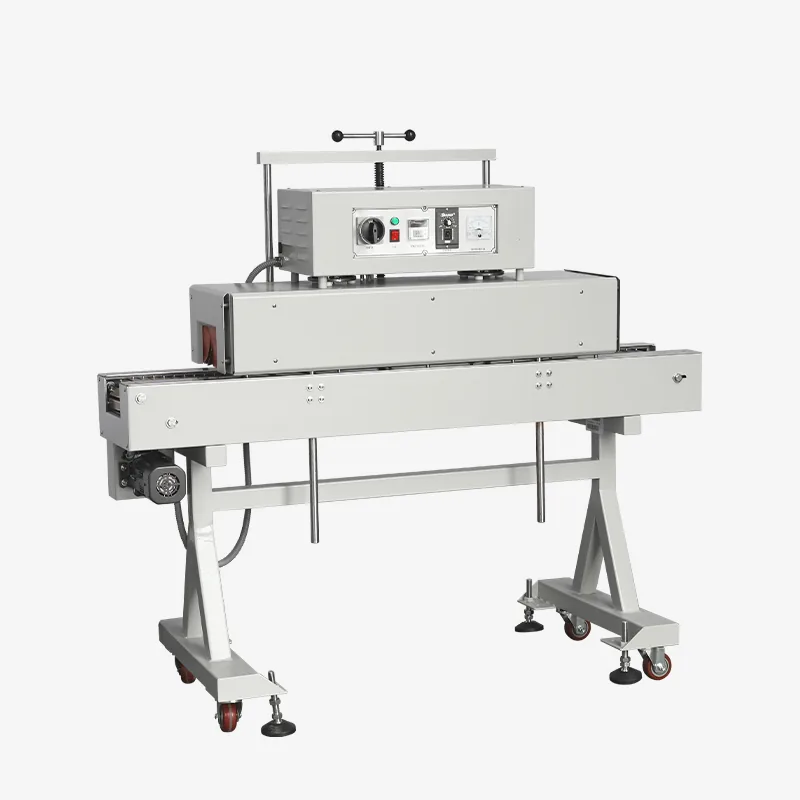

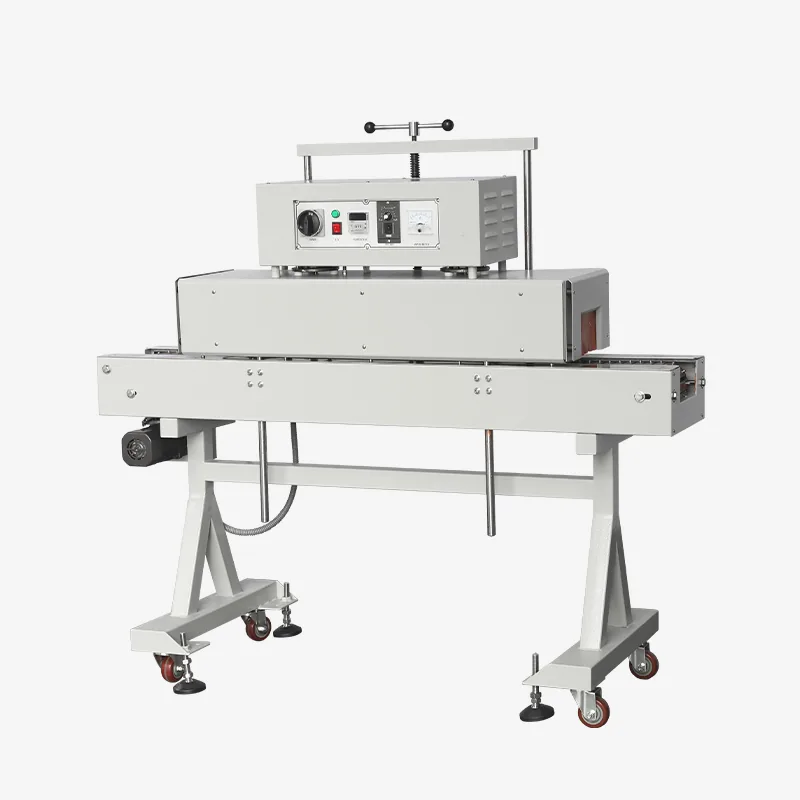

Label Shrink Tunnel
Label Shrink Tunnel
SilverSeal ref. SEK-120
A label shrink tunnel from the SilverSeal shrink & seal-cut range. Plan for 90kg net on the floor. Set up with conveying speed 0- 10m/min, max. packing diameter 120mm, max. packing height 400mm.
- Voltage (V/Hz)
- 380/50 (3P) or 220/60 (3P)
- Power (W)
- 7KW
- Dimensions L×W×H (mm)
- L1530*W500*H1450 mm
- Net weight (kg)
- 90kg
Overview
label shrink tunnel adopts hot air circulating shrinkage, shrinking for the body as well as the cap of bottles.
- Adopts imported parts and S/S heaters
- The conveying speed is controlled by a step-less electronic speed controller
- Only heat the cap of the bottle, ensures products quality inside the bottle
- Can meet all kinds of bottles just need to set and adjust the machine simply
- This item can be connected with the production line. Application:
Technical specifications
| Model | SEK-120 |
|---|---|
| Voltage (V/Hz) | 380/50 (3P) or 220/60 (3P) |
| Power (W) | 7KW |
| Dimensions L×W×H (mm) | L1530*W500*H1450 mm |
| Net weight (kg) | 90kg |
| Conveying Speed | 0- 10m/min |
| Max. Packing Diameter | 120mm |
| Max. Packing Height | 400mm |
