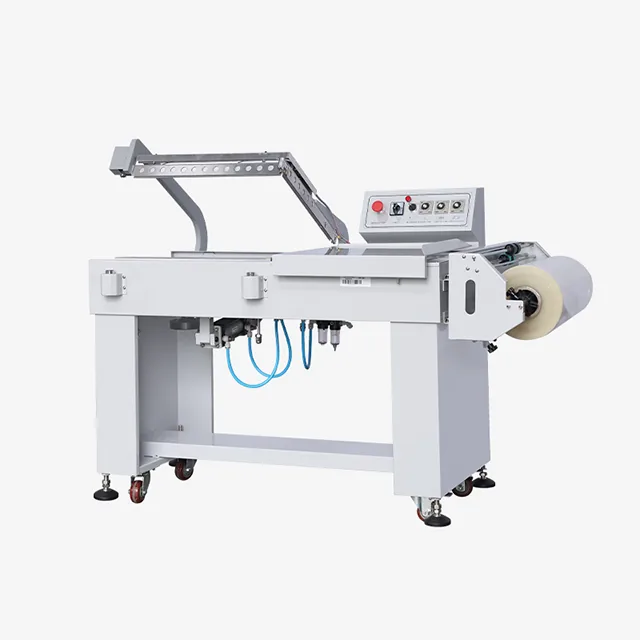

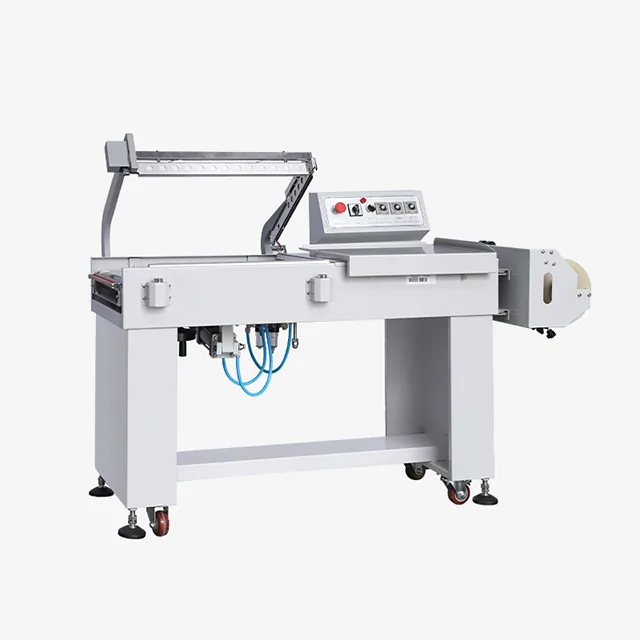

Semi-automatic L-Seal Cutting Machine
Semi-automatic L-Seal Cutting Machine
SilverSeal ref. SEK-150
It arrives wired for 220/50, fed from a 6-8 MPa air line. Plan for a 1560×757×1040 mm footprint and 135 kg net on the floor. Set up with max. sealing & cutting size (l×w) 500×450, pack size W+H<450，W<400.
- Voltage (V/Hz)
- 220/50
- Power (W)
- 1.2
- Capacity
- 800-1200
- Dimensions L×W×H (mm)
- 1560×757×1040
- Net weight (kg)
- 135
Overview
series semiautomatic L-seal cutting machine can convey the products automatically into shrink tunnel through conveying belt for shrink packaging after sealing & cutting. Equipped with shrink tunnel to reach higher working capacity.
- Conveyor belt height is adjustable via hand wheel
- Time relay that ensures accurate control of sealing & cutting times
- Electro-magnetic hold-down provides a more secure seal
- Sliding roll holder, fully adjustable for different sized rolls of film (max. width:550mm)
- Return cylinder equipped to control sealing & cutting frame
- Is equipped with the pneumatic mechanism. Application:
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Air supply (MPa) | Net weight (kg) |
|---|---|---|---|
| SEK-150 | SEK-150 | 6-8 | 135 |

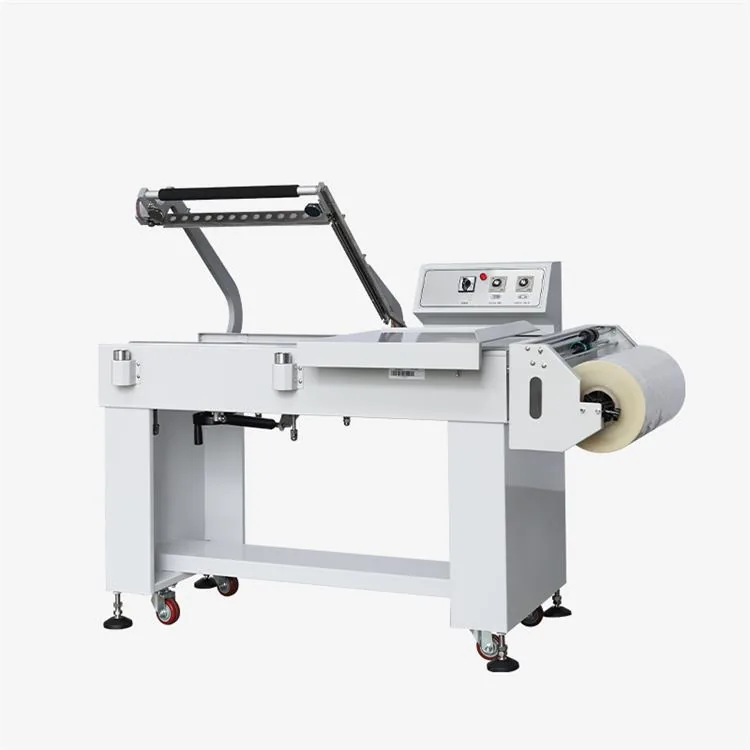

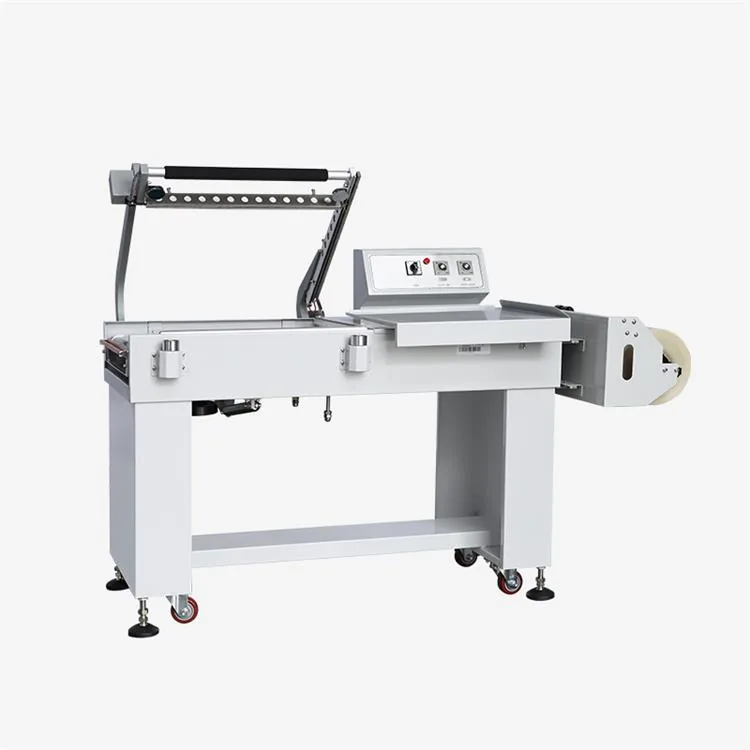

| SEK-270 | SEK-270 | — | 125 |
Technical specifications
| Model | SEK-150 |
|---|---|
| Voltage (V/Hz) | 220/50 |
| Power (W) | 1.2 |
| Capacity | 800-1200 |
| Air supply (MPa) | 6-8 |
| Dimensions L×W×H (mm) | 1560×757×1040 |
| Net weight (kg) | 135 |
| Max. Sealing & Cutting Size (L×W) (mm) | 500×450 |
| Pack size (mm) | W+H<450，W<400 |
