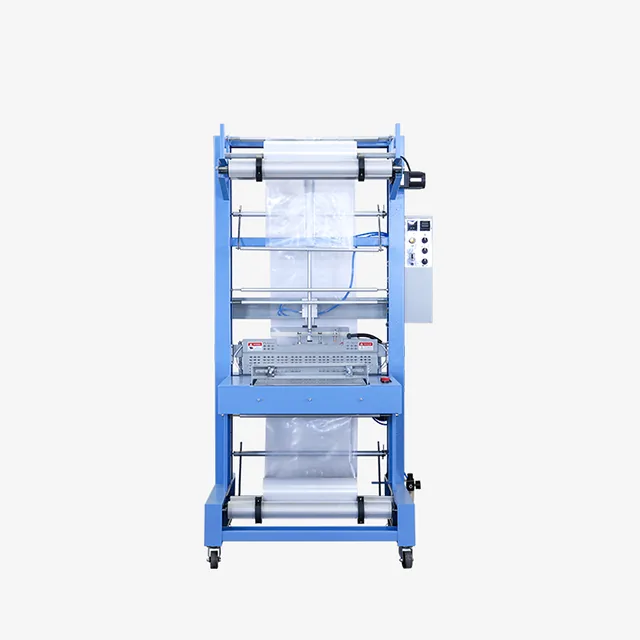

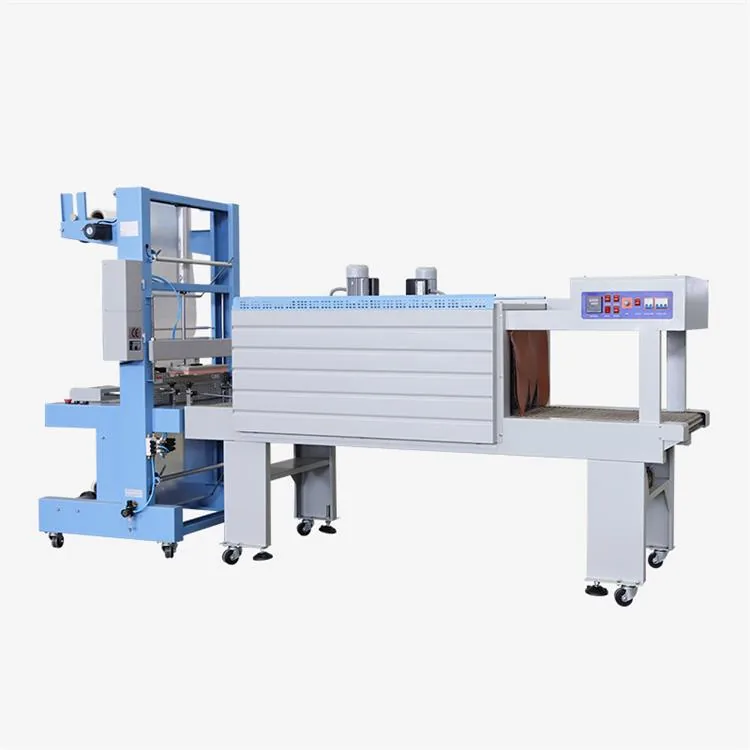

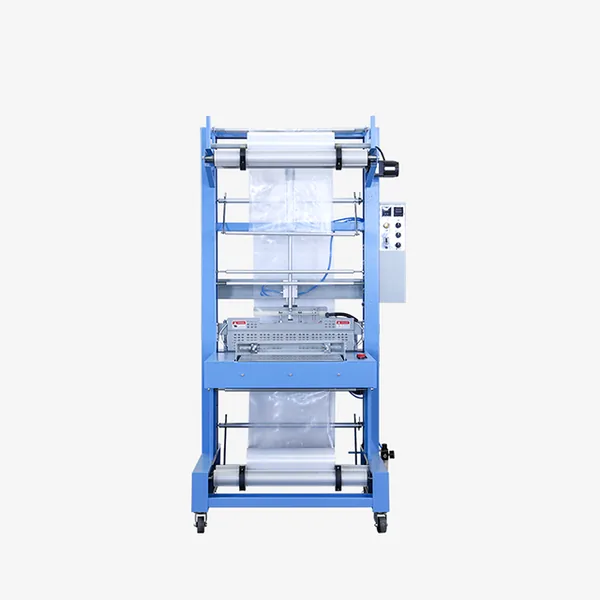

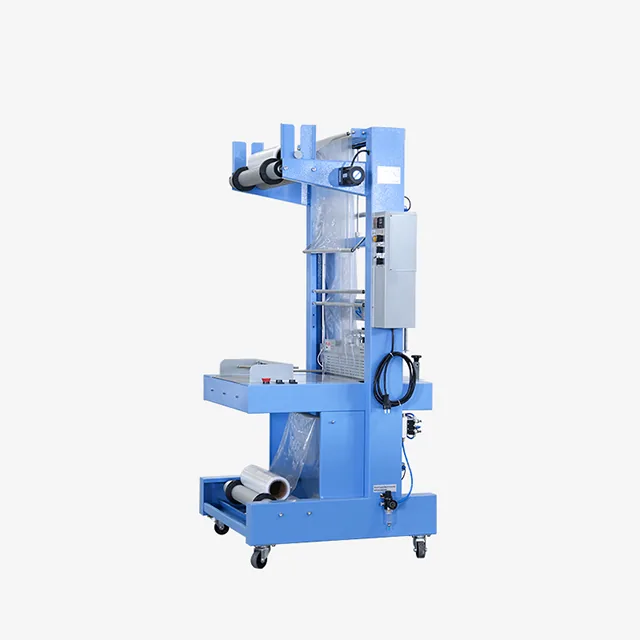

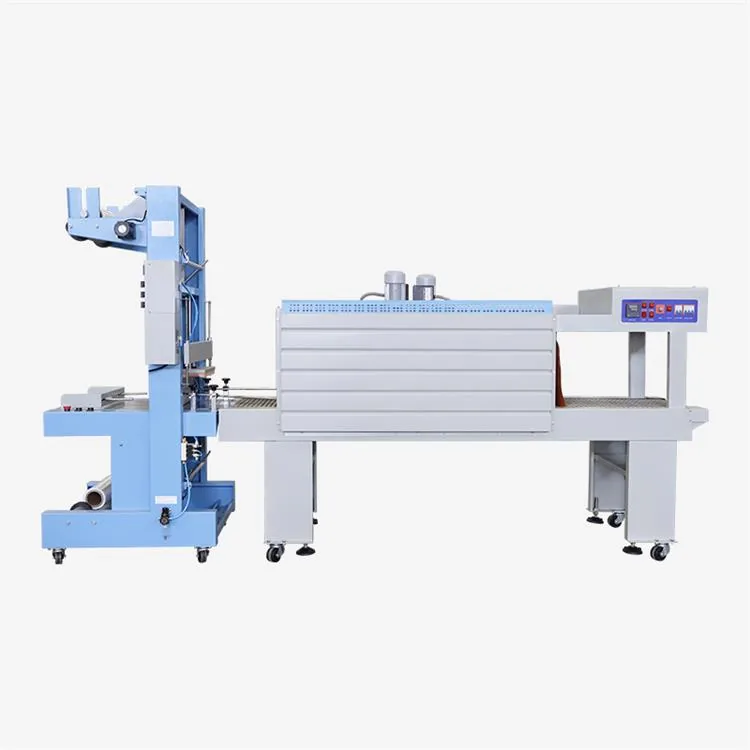

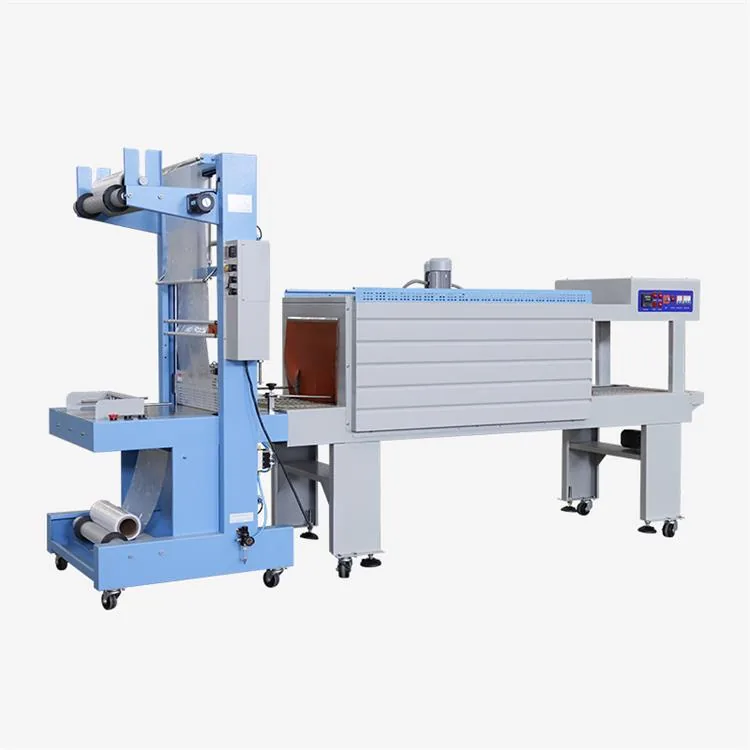

Semi Automatic Sleeve Sealing Machine with Shrink Tunnel
Semi Automatic Sleeve Sealing Machine with Shrink Tunnel
SilverSeal ref. SEK-145
The semi automatic sleeve sealing machine with shrink tunnel works a 1450×550×400 mm chamber. It arrives wired for AC 220/50 110/60, fed from a 5-7 MPa air line. Plan for a 925×1040×1920 mm footprint and 300 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 1.5
- Dimensions L×W×H (mm)
- 925×1040×1920
- Net weight (kg)
- 300
Overview
can be fed manually or pneumatically. When the sealing & cutting cycle is complete, the product is discharged into the shrink tunnel automatically. Features: The machine is used to shrink package single and multiple products. Application: Ideal solution for many industries, such as printing, pharmacy, floor, chinaware, beverage, beer, etc. It's suitable for all kinds of shrink films such as PVC, PE, etc. This kind of shrink tunnel is designed in hot-wind & upper-cyclone structure, it is suitable for heat shrinkable film such as PVC, PE etc., specially for PE. Features: Intelligence temperature control and strong turbine motor are adopted. Stainless steel mesh type conveyor and roller type conveyor are available. Application: series shrink tunnel are suitable for packing single large object or combined object consisting of several small articles.
Technical specifications
| Model | SEK-145 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 1.5 |
| Tunnel L×W×H (mm) | 1450×550×400 |
| Air supply (MPa) | 5-7 |
| Dimensions L×W×H (mm) | 925×1040×1920 |
| Net weight (kg) | 300 |
| Conveying Speed (m/min) | 0~8 |
| Conveyor load (kg) | 40 |
| Max. Sealing Length (mm) | 650 |
| Pack size (mm) | 550×400×380 |
