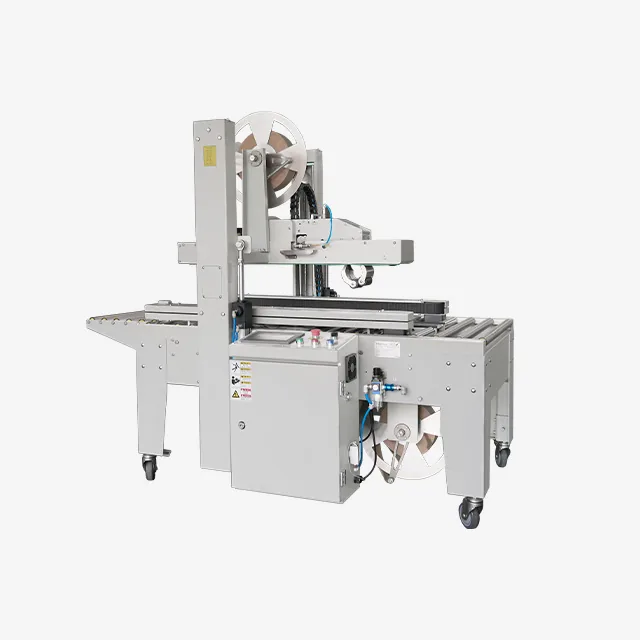

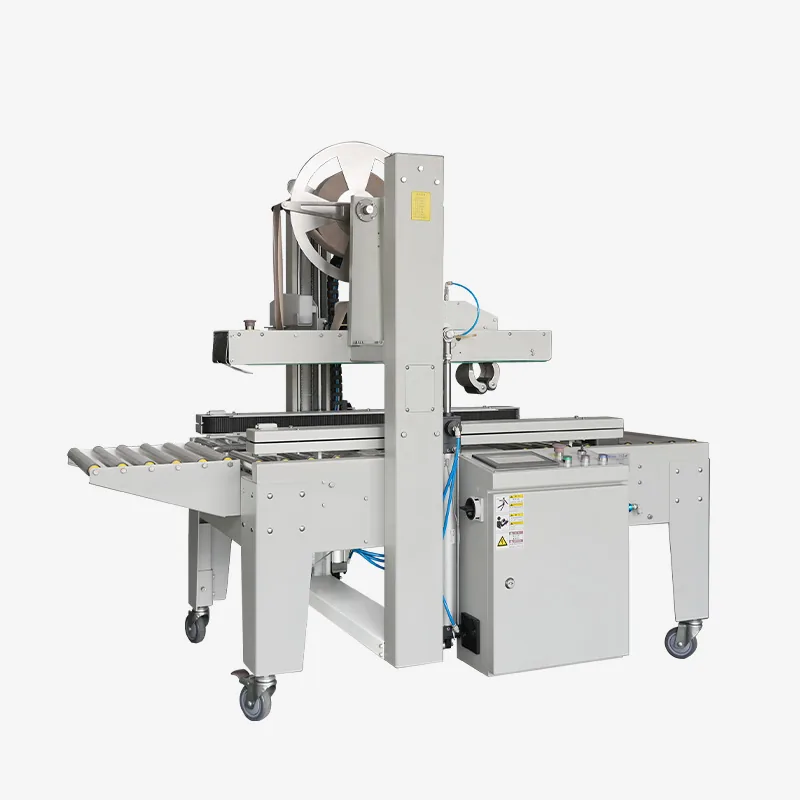

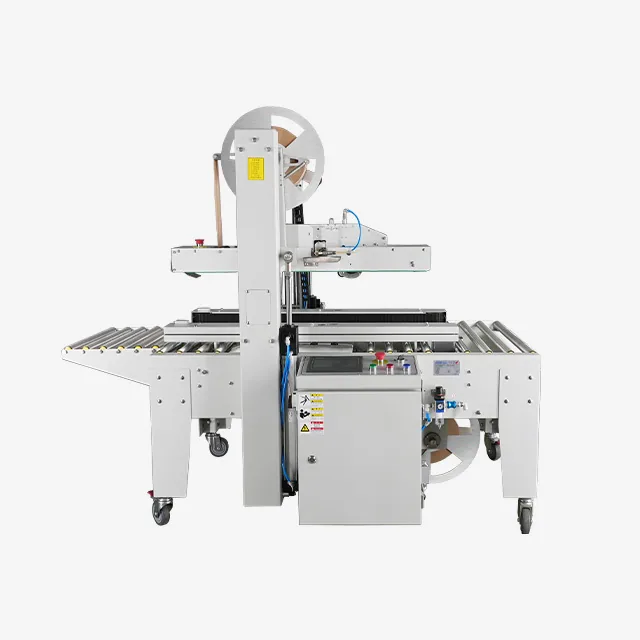

Semi automatic Carton Sealer
Semi automatic Carton Sealer
SilverSeal ref. SEC-170
It is the largest semi automatic carton sealer we list, at 299 kg. It arrives wired for AC 220/50 110V/60. Set up with gross power（w） 600, max.carton for sealing (l*w*h) ∞*500*500, min.carton for sealing (l*w*h) 170*170*130 mm.
- Voltage (V/Hz)
- AC 220/50 110V/60
- Power (W)
- 0.5
- Dimensions L×W×H (mm)
- 1510*1115*(1970-2090)
- Net weight (kg)
- 299
Overview
About Water-actived Carton Sealer Pneumatic Random Eco-Friendly Water-actived Tape Carton Sealing Machine uses water active tape to seal the box, green, economic, fast, easy to adjust. Mainly suitable for carton sealing packaging, can not only single operation, also can be used with the assembly line. Water-actived Carton Sealer Feature: 1. Pneumatically adapt to various carton sizes, it have two mode: 1) Semi-automatic mode: With locking function, single specification carton sealing efficiency is higher. 2) Fully automatic mode: Adaptive sealing of cartons of different specifications,without manual adjustment. 2. High Speed: Fast sealing speed 20m/min 3. Applicable tape width 48-75mm | Maximum tape diameter 420mm | Tape length 48~90mm adjustable 4. Touch screen control, you can choose to turn off or on the upper and lower sealing functions 5. Use water-activated wet kraft paper, the packaging material is green and environmentally friendly.
Technical specifications
| Model | SEC-170 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110V/60 |
| Power (W) | 0.5 |
| Dimensions L×W×H (mm) | 1510*1115*(1970-2090) |
| Net weight (kg) | 299 |
| Gross Power（W） | 600 |
| Material for Tape | Water-activated kraft Paper (Max Dia.420mm) （The marking machine uses glue on the inside of the tape, and needs to be customized when glue is on the outside） |
| Max.Carton for Sealing (L*W*H) (mm) | ∞*500*500 |
| Min.Carton for Sealing (L*W*H) (mm) | 170*170*130 mm |
| Table Height (mm) | 720~890 |
| Tape Specification (mm) | 48~75 |
| The Length Of Head Tape (mm) | 45~90 |
| Transport Speed (M/MIN) | 20(around 15 boxes/min) |
