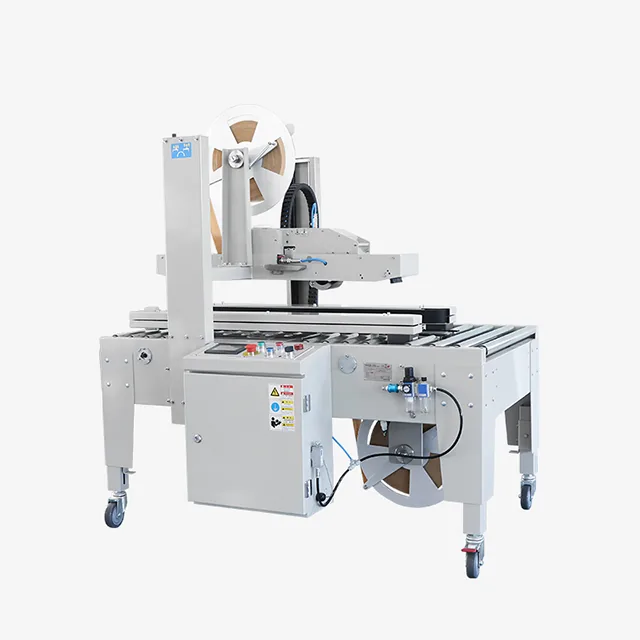

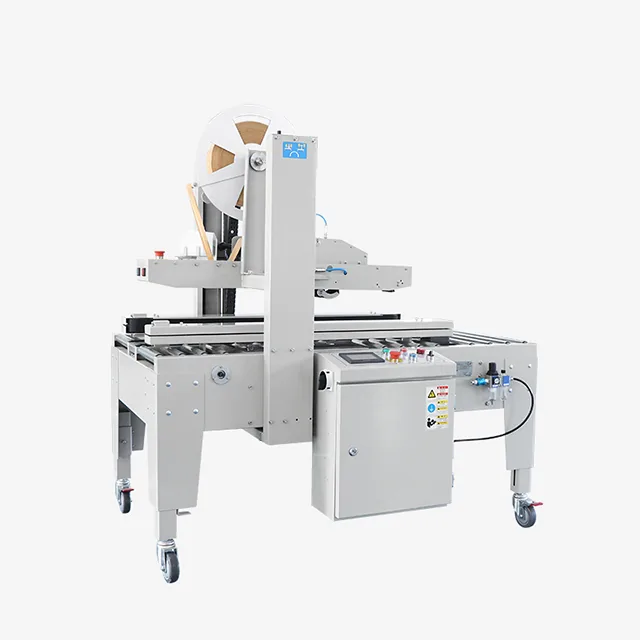

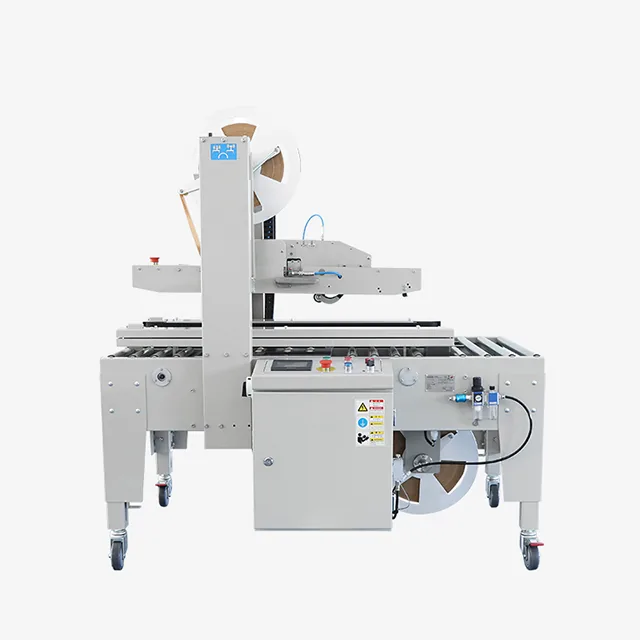

Semi automatic Carton Sealer
SilverSeal ref. SEC-165
The semi automatic carton sealer runs at 20 m/min, draws 700 W. It sits mid-range among the 4 semi automatic carton sealers we list (230 kg), between the SEC-145 and SEC-170 units. It arrives wired for AC 220/50 110/60 1P.
- Voltage (V/Hz)
- AC 220/50 110/60 1P
- Power (W)
- 700
- Speed (m/min)
- 20
- Dimensions L×W×H (mm)
- 1510x1115x(1970-2090)
- Net weight (kg)
- 230
Overview
Description Wet Adhesive Paper Carton Sealer uses water active tape to seal the box, green, economic, fast, easy to adjust. Mainly suitable for carton sealing packaging, can not only single operation, also can be used with the assembly line. The tension of the conveyor belt sealing tape is adjustable, suitable for soft and hard cartons. The front cover, side cover and back cover of the carton fold in automatically, quickly and smoothly. Driven by two sides of the belt, the upper and lower sealing heads are sealed at the same time or the upper sealing heads are sealed at the same time, suitable for continuous sealing of cartons with the same specifications. Application ●Applicable Industries: Garment shops, building material shops, manufacturing. ●Application: Food, beverage, general goods, pharma products, process industries products, etc. ●Packaging material: Kraft paper with reinforced. What are the advantages that could bring to the users? 1.Water-activated tape carton sealer seals cartons using kraft paper tape, it is more environmentally friendly. Comparing to manual or small water-activated kraft paper dispenser, could be adopted in the packing line with higher production 3.Sealing cartons with water-activated kraft paper with reinforced could be more solid in sealing realization than BOPP tape. 4. keeps a speed of 20m/min which is two times faster than other water-activated tape carton sealers in the market. 5. adopts PLC from Omron and touch-screen from WEINVIEW, well-known international brands meanwhile the machine keeps a competitive price in the market.
Technical specifications
| Model | SEC-165 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 1P |
| Power (W) | 700 |
| Speed (m/min) | 20 |
| Dimensions L×W×H (mm) | 1510x1115x(1970-2090) |
| Net weight (kg) | 230 |
| Length of the Overlap on Sides (mm) | 48-90 |
| Max. Diameter of the Tape (mm) | 420 |
| Pack size (mm) | Unlimitedx500x600 |
| Suitable Tape | Water activity kraft paper ( The marking machine uses glue on the inside of the tape, and needs to be customized when glue is on the outside ) |
| Table Height (mm) | 700-820 |
| Tape Width (mm) | 48-75 |
