Heat Seal Machine
Heat Seal Machine

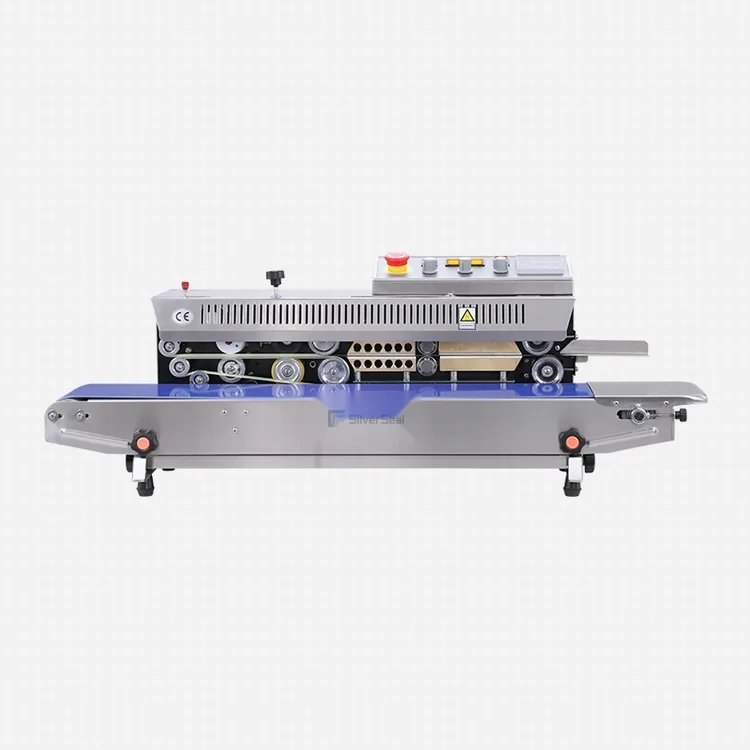

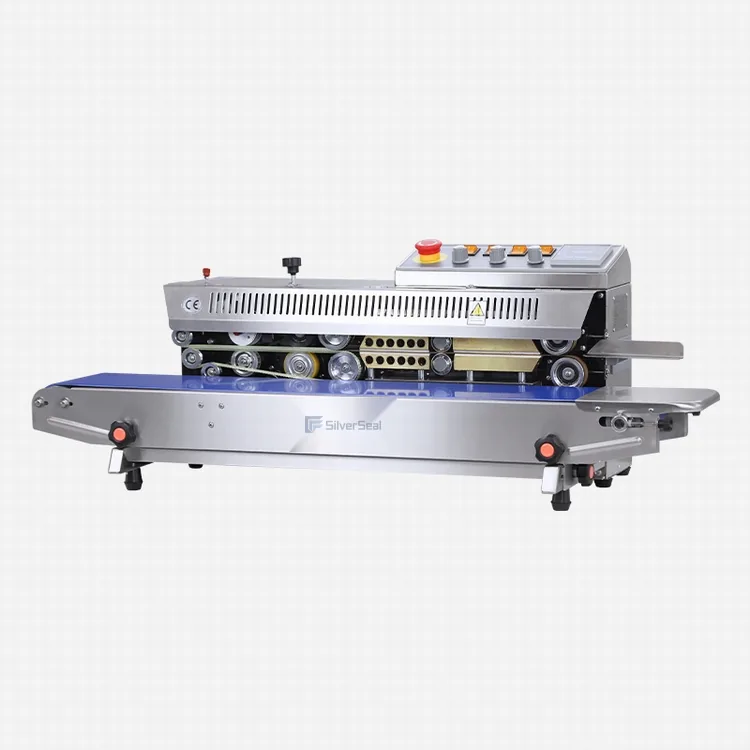

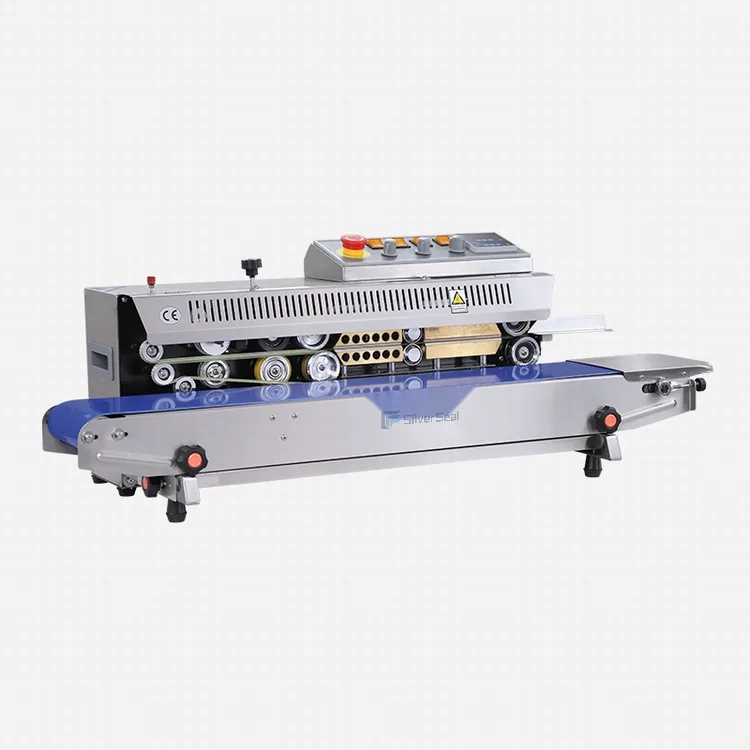

SilverSeal ref. SEB-415
A heat seal machine from the SilverSeal sealing range. Plan for a 954×390×345mm footprint on the floor. Set up with sealing gap adjustment 10-40mm.
- Dimensions L×W×H (mm)
- 954×390×345mm
Overview
series is available in three models: horizontal model, vertical model, and floor-standing model. The machine can seal all kinds of heat-sealable materials, which adopts a constant temperature control system and step-less speed adjusting transmission mechanism. The machine works with a solid-ink coder to print the colored labels while sealing. The coder is able to print at high speed with instant dry and highly legible letters that have good adhesion properties. The printing wheel in the machine can be used for both R arrange and T arrange of types. For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT).
- Reliable performance
- Simple operation
- Convenient maintenance
- Wide range of application
- Constant temperature control system
- Stepless speed regulation
- With printing function
- Various color ink wheels are selectable
- Counting device is optional Application:
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Dimensions L×W×H (mm) |
|---|---|---|
| SEB-415 | SEB-415 | 954×390×345mm |

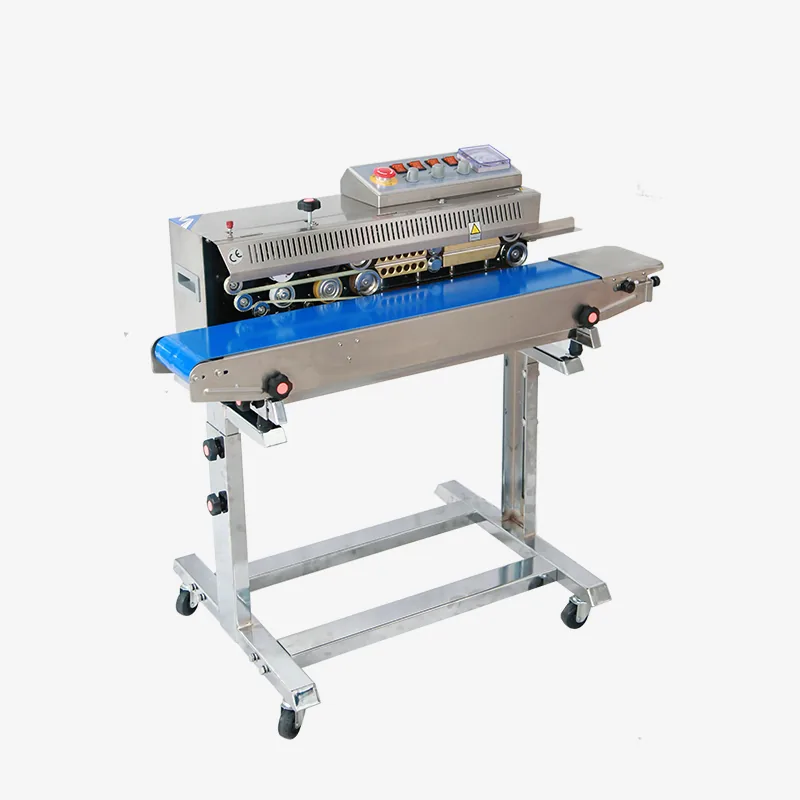

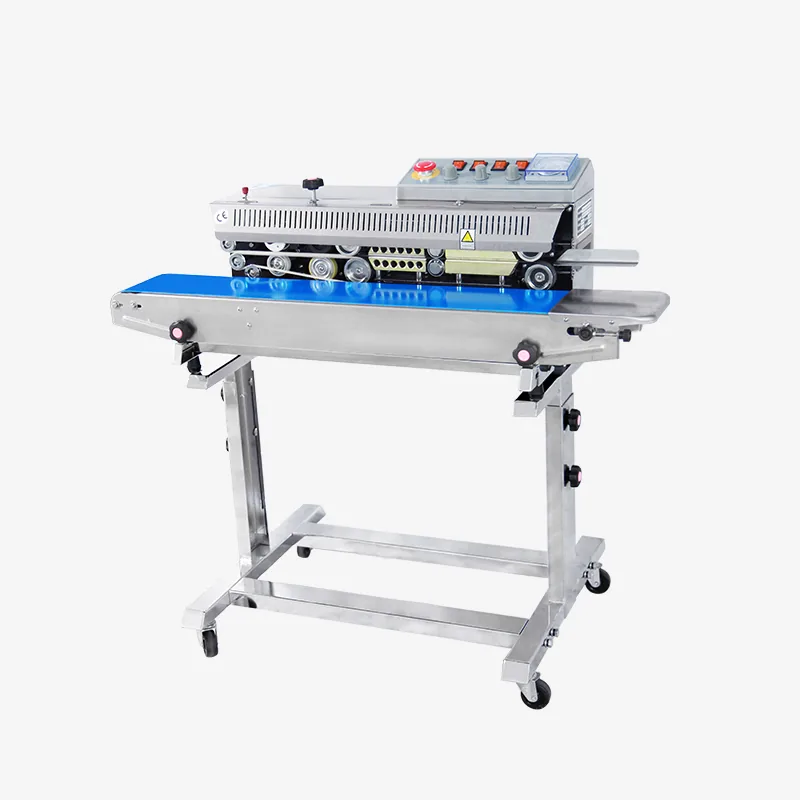

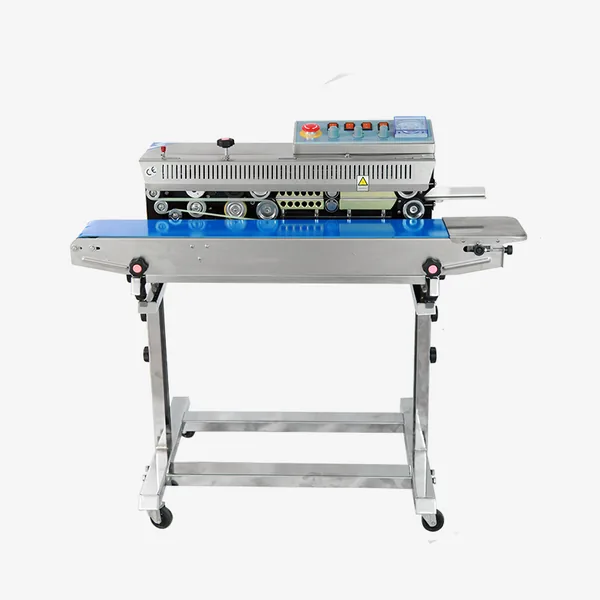

| SEB-425 | SEB-425 | 954×555×900mm |
Technical specifications
| Model | SEB-415 |
|---|---|
| Dimensions L×W×H (mm) | 954×390×345mm |
| Coder | Solid-ink coder prints colored labels while sealing; two lines (18PT) or three lines (10.5PT) in R arrange |
| Control system | Constant temperature control, stepless speed adjusting transmission |
| Sealing gap adjustment | 10-40mm |
