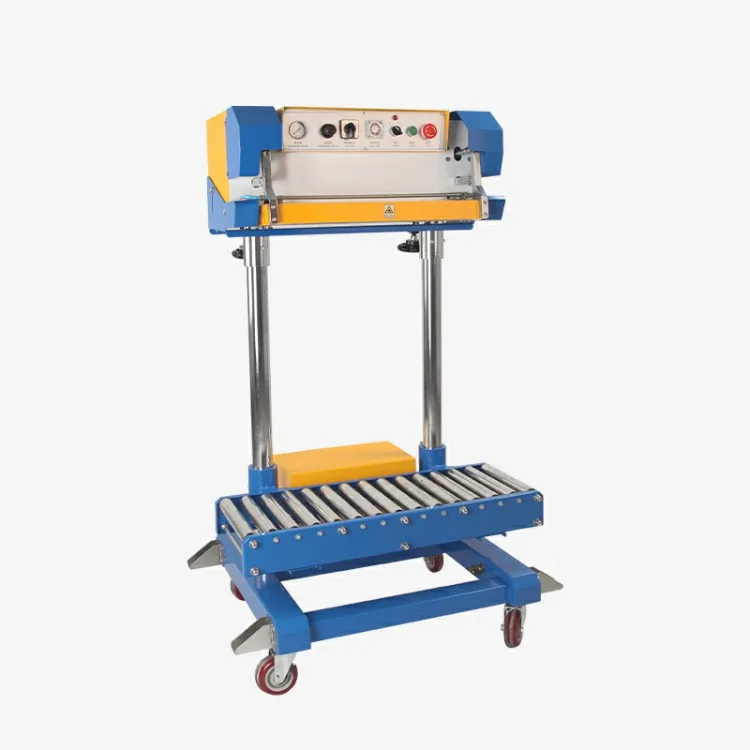

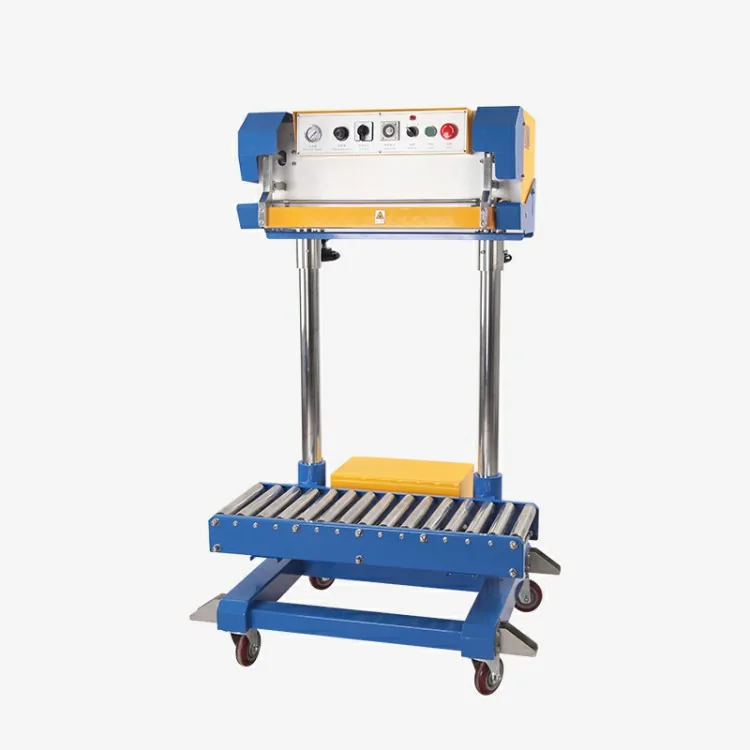

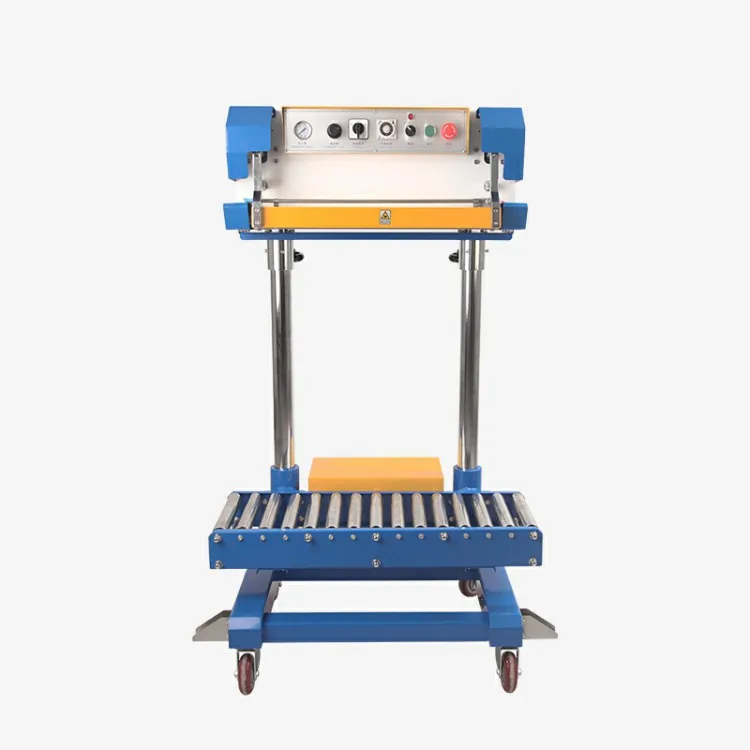

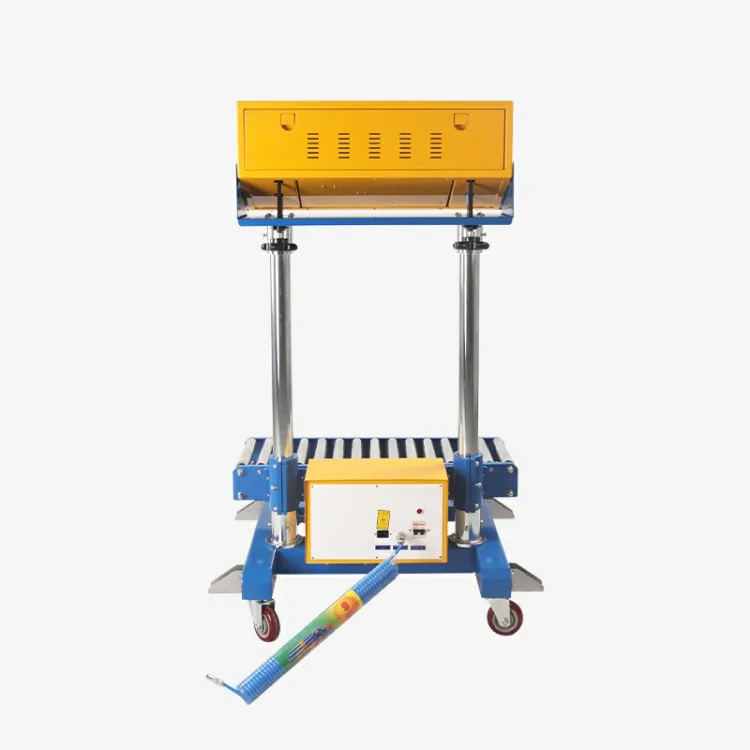

Pneumatic Sealer
Pneumatic Sealer
SilverSeal ref. SEB-370
The pneumatic sealer seals a 10 mm band. It arrives wired for AC 220/50 110/60. Plan for a 905×690×1430 mm footprint and 103 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Sealing power (W)
- 500(800)
- Sealing width (mm)
- 10
- Dimensions L×W×H (mm)
- 905×690×1430
- Net weight (kg)
- 103
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Air supply (MPa) | Dimensions L×W×H (mm) | Net weight (kg) | Adjustable Angle of Pressing Head (°) | Max. Package Sealing load (mm) | Sealing centre distance (mm) | Adjustable angle of Pressing Head (°) |
|---|---|---|---|---|---|---|---|---|
| SEB-370 | SEB-370 | 0.5(Equipped by User) | 905×690×1430 | 103 | 20 | 150-800 | 1150 | — |
| SEB-375 | SEB-375 | 0.5(Equipped by user) | 910×780×1780 | 84 | — | 200-750 | 900-1400 | 20 |
Technical specifications
| Model | SEB-370 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Sealing power (W) | 500(800) |
| Sealing width (mm) | 10 |
| Sealing length (mm) | 600、800、1000 |
| Air supply (MPa) | 0.5(Equipped by User) |
| Dimensions L×W×H (mm) | 905×690×1430 |
| Net weight (kg) | 103 |
| Adjustable Angle of Pressing Head (°) | 20 |
| Film (mm) | ≤0.18 |
| Max. Package Sealing load (mm) | 150-800 |
| Max. Sealing Load (kg) | 50 |
| Sealing centre distance (mm) | 1150 |
