SEB-300
1 / 2
Induction Sealer
Induction Sealer
SilverSeal ref. SEB-320
The induction sealer runs at 2-12 m/min, draws 2000W. Plan for a 1150×600×400 mm footprint on the floor. Set up with sealing power 2000W, bottle height 40-300, housing material Paint.
- Power (W)
- AC 220/50
- Sealing power (W)
- 2000W
- Speed (m/min)
- 2-12
- Dimensions L×W×H (mm)
- 1150×600×400
Overview
The sealing range of the machine is adjustable, and with either large or small sealing surface, and get the ideal sealing quality and efficiency. In case of the equipment failure of the machine in the course of work, the conveyor automatically stops working, to realize the function of isolating the products sealed and those unsealed. The conveyor belt adopts electronic stepless speed adustment, and during the sealing process can based on voltage and current changes make speed adjustment in a timely manner, in order to achieve the best sealing quality. In this machine,the height of sensor head adopts eletric adjustment,capable of sealing the objects within the range of 40-300mmin height. It has supply and voltage meter and sealing ameter, so that is can make timely adjustments when voltage and current fails to meet normal job requirements, to ensure the sealing quality.
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Dimensions L×W×H (mm) | Bottle Height (mm) | Housing material | Sealing Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|

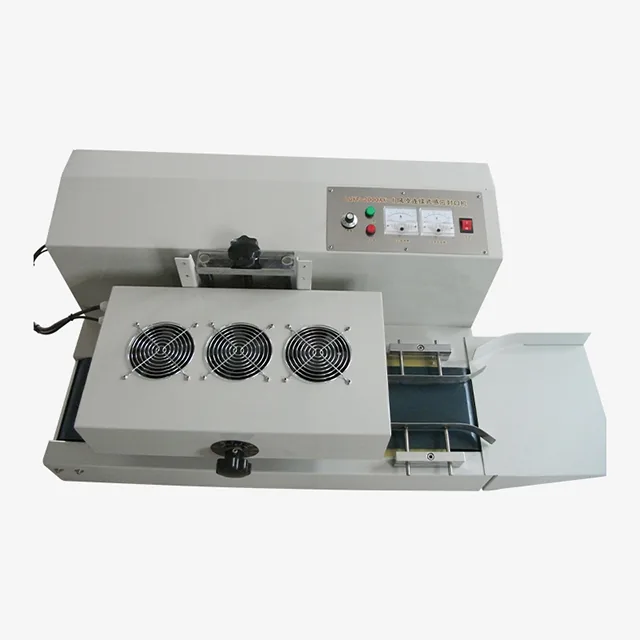

| SEB-320 | SEB-320 | 1150×600×400 | 40-300 | Paint | Φ20-φ130(The best diameter is Φ30-φ120) | 40 |

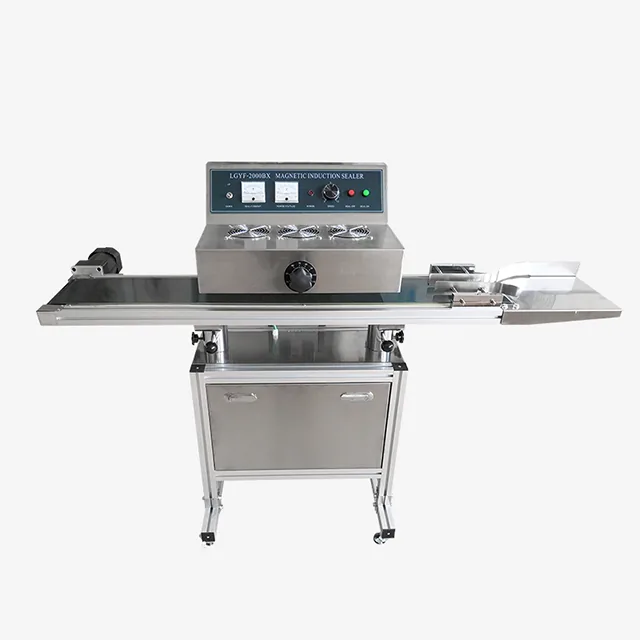

| SEB-325 | SEB-325 | 1550×550×1350 | 40-400 | Paint housing | Φ20-φ130(The best Diameter isΦ30-φ120) | 70 |
Technical specifications
| Model | SEB-320 |
|---|---|
| Power (W) | AC 220/50 |
| Sealing power (W) | 2000W |
| Speed (m/min) | 2-12 |
| Dimensions L×W×H (mm) | 1150×600×400 |
| Bottle Height (mm) | 40-300 |
| Housing material | Paint |
| Housing protection grade | IP2I |
| Load of conveyor (kg) | ≤20 |
| Sealing Diameter (mm) | Φ20-φ130(The best diameter is Φ30-φ120) |
| Weight (kg) | 40 |
