SEA-100
1 / 3
Carton Sealer

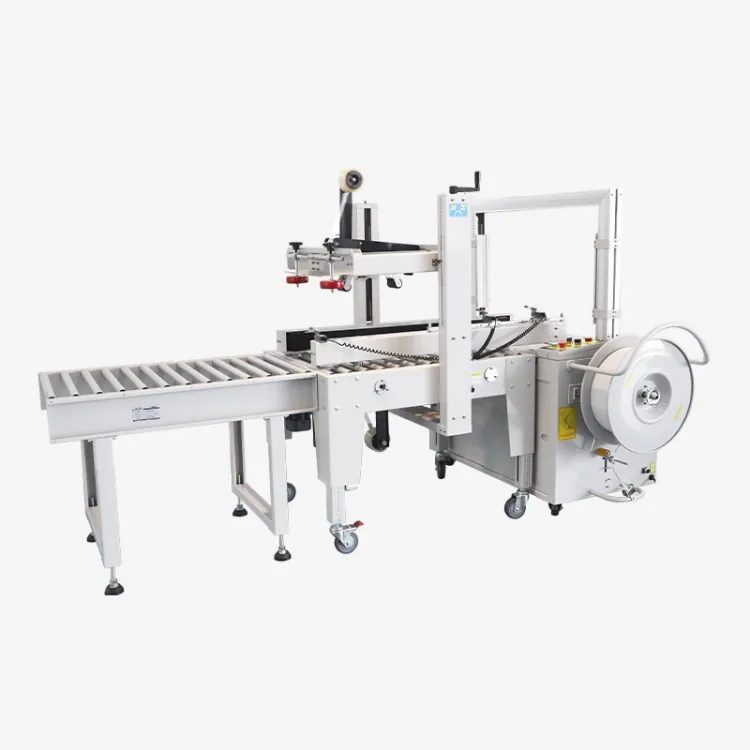

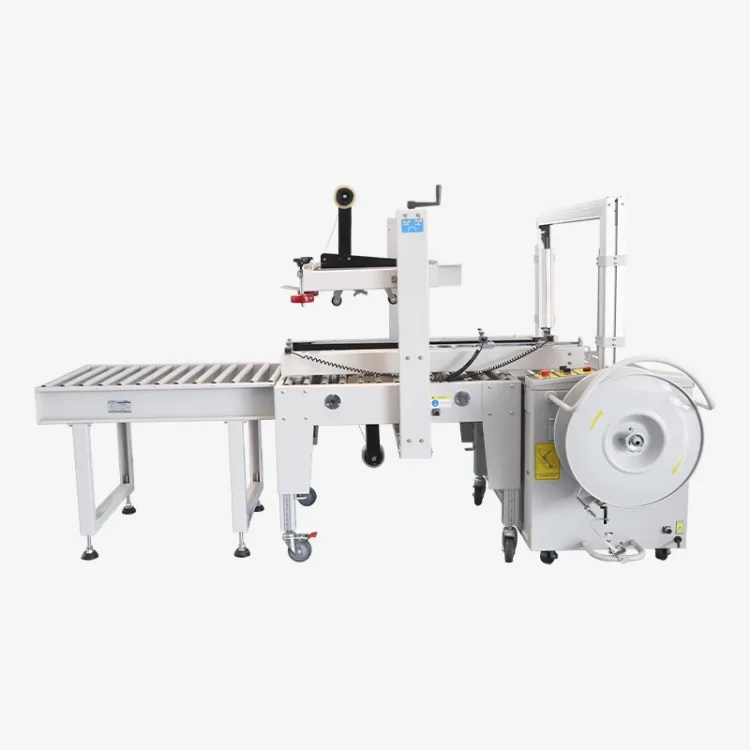

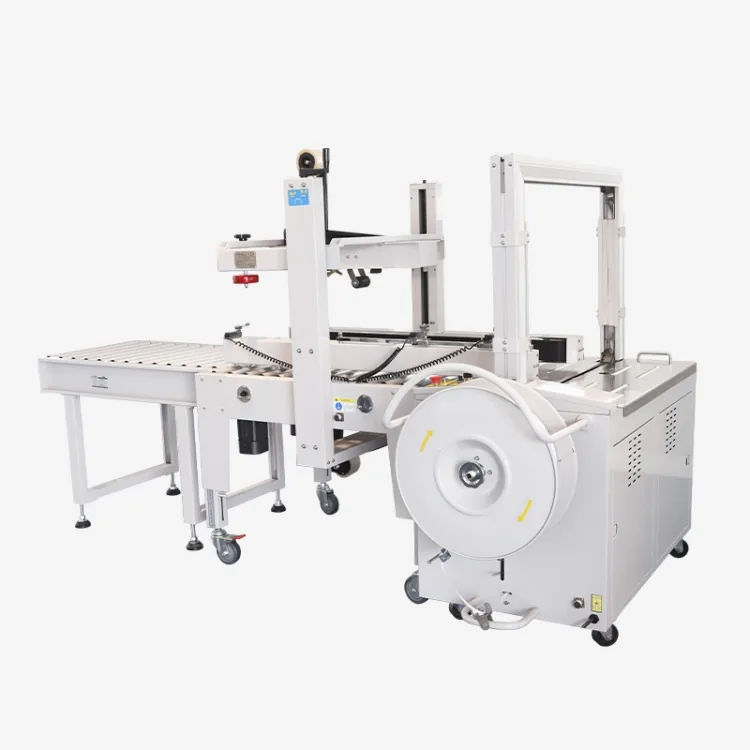

Automatic Carton Sealing Strapping Packaging Line
SilverSeal ref. SEA-310
The automatic carton sealing strapping packaging line draws 1050 W. It arrives wired for Three-phase AC 380/50. Plan for 425 kg net on the floor.
- Voltage (V/Hz)
- Three-phase AC 380/50
- Power (W)
- 1050
- Net weight (kg)
- 425
Technical specifications
| Model | SEA-310 |
|---|---|
| Voltage (V/Hz) | Three-phase AC 380/50 |
| Power (W) | 1050 |
| Net weight (kg) | 425 |
| Assembly line speed (m/min) | 20 |
| Available Strapping Belt | Plastic strapping belt, width 9~15mm, thickness 0.5~1.1mm |
| Height of worktop (mm) | 750 |
| Maximum carton size (L×W×H) | 600×500×500mm |
| Minimum carton size (L×W×H) | 300×130×180mm |
| Outline size (L×W×H) (mm) | 2650×1420×1565 |
| Sealing tape | BOPP, PVC tape, water-free adhesive tape; width 48, 60, 76mm (optional) |
| Strapping unit (KZ 8060 series) | Works with 9-15mm PP belt without part replacement (9mm needs lower right guide rail assembly); reaches optimal packing state 60s after startup; ~2.5s per bale cycle; PLC-controlled |
| Throughput (pcs/h) | 600 |
