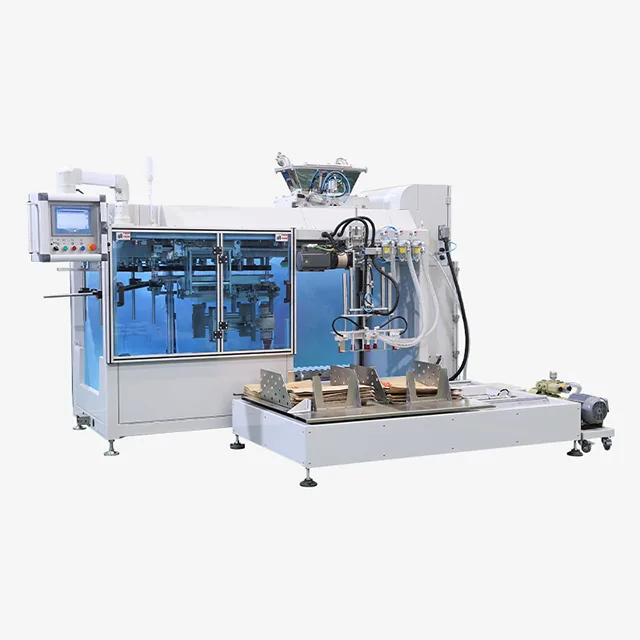

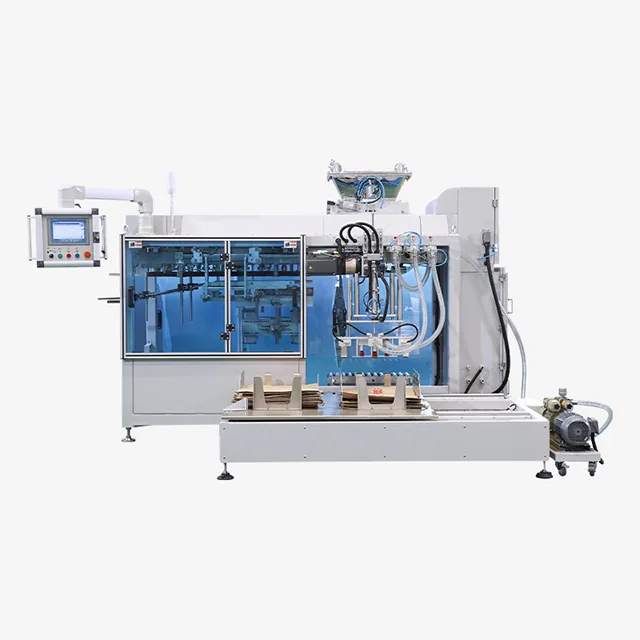

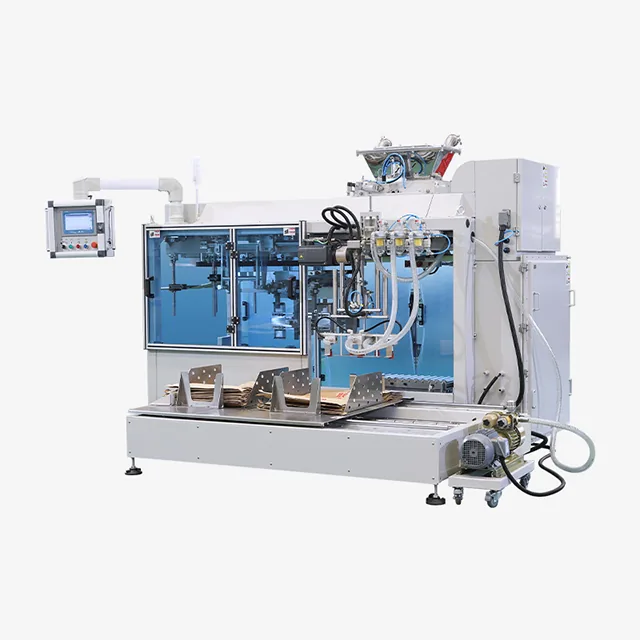

Bag Placer
Bag Placer
SilverSeal ref. SEA-115
It arrives fed from a 0.4-0.6 Mpa air line. Set up with air extracting speed 22.5, overall power 3, weight to fill 20-50.
- Voltage (V/Hz)
- (3 Phases) /50
- Capacity
- 400
Overview
Bag Placer. The whole machine is consisted of bag storage platform, bag taking mechanism, bag opening mechanism, sleeving mechanism, bag shaking mechanism, bag holding mechanism, machine frame and control box. After placing the bag in the bag storage platform, start the machine, the bag taking mechanism would abstract the bag, the taking action is fulfilled by the bag is swinged 90 degree. Then, the process would be bag opening, sleeving and filling, in the end, the bag would be sent to the conveyor, and the bag mouth would be clamped to sealing unit.
- Stable performance
- Automatic fault identification
- Simple operation
- Convenient maintenance
- Easily integrated with scales
- Placing speeds up to 300 bags/hours
- Fast adjustable to different bag sizes without tools
- Fully assembled and tested before shipment
- Available for production line Application:

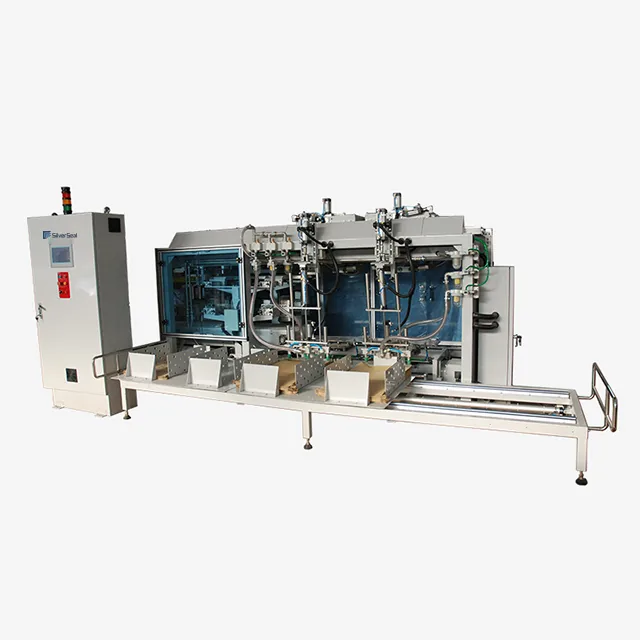

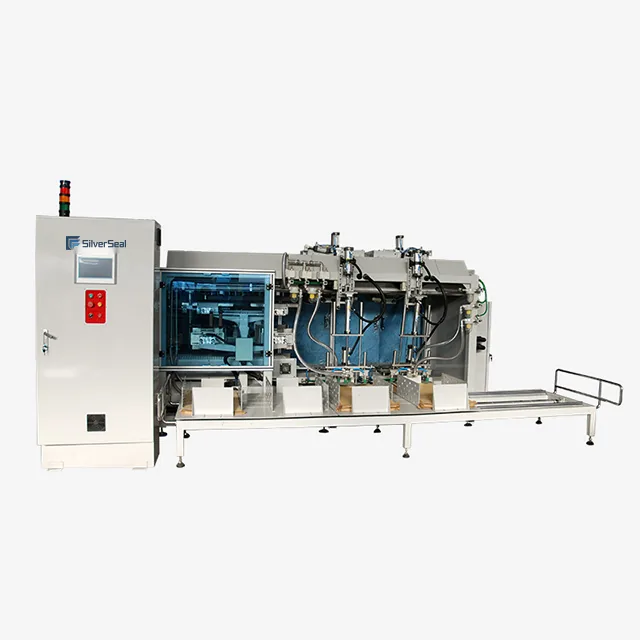

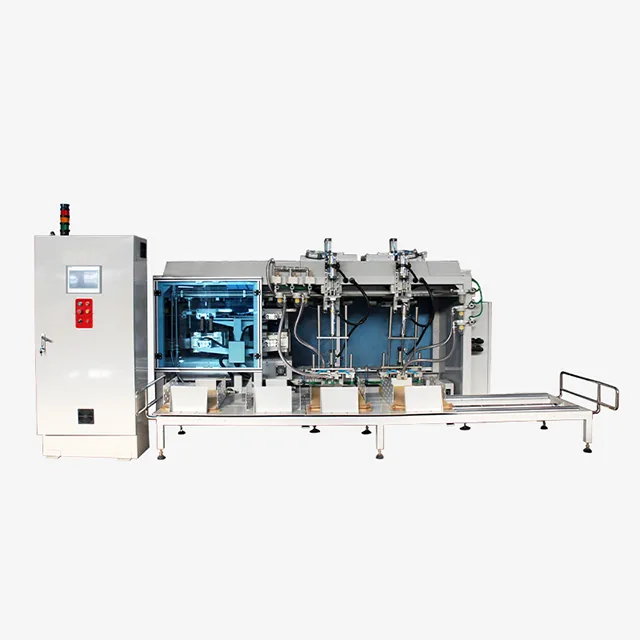

Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Capacity | Air extracting speed (m³/h) | Overall power (KW) |
|---|---|---|---|---|
| SEA-115 | SEA-115 | 400 | 22.5 | 3 |
| SEA-125 | SEA-125 | 600 | 45 | 7 |
Technical specifications
| Model | SEA-115 |
|---|---|
| Voltage (V/Hz) | (3 Phases) /50 |
| Capacity | 400 |
| Air extracting speed (m³/h) | 22.5 |
| Air supply pressure (Mpa) | 0.4-0.6 |
| Overall power (KW) | 3 |
| Weight to fill (kg) | 20-50 |
