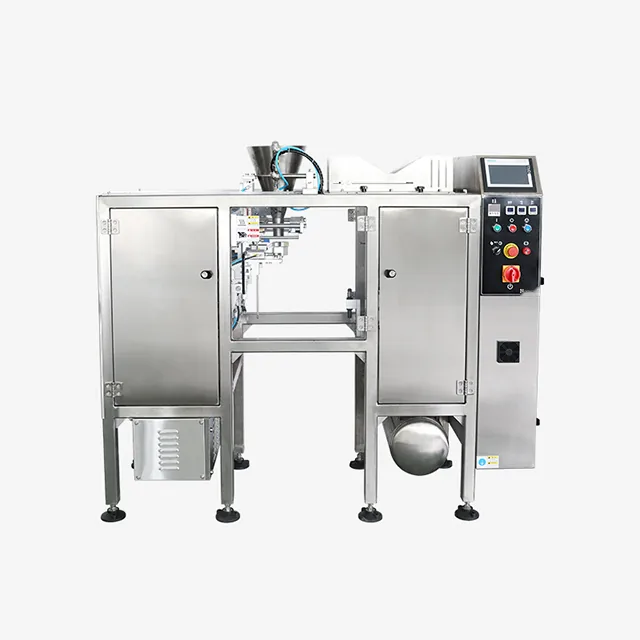

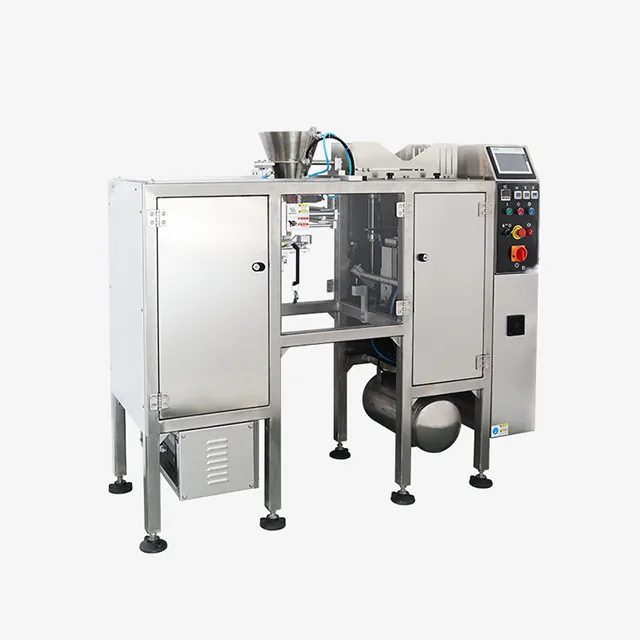

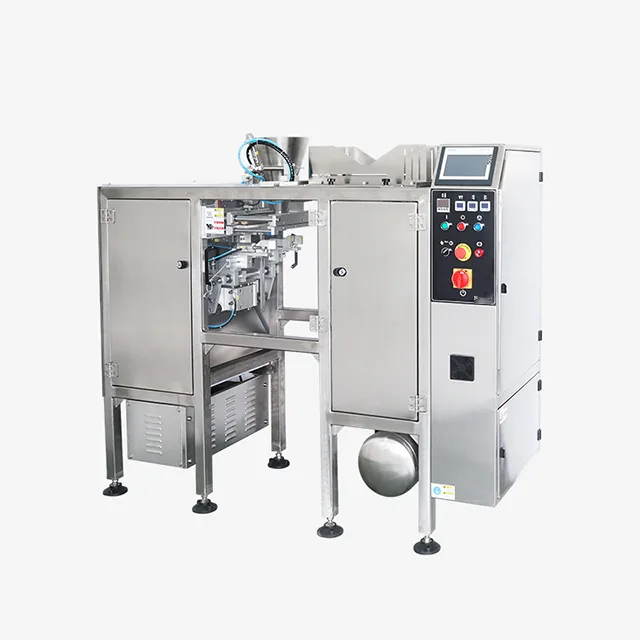

Bag Placer
Bag Placer
SilverSeal ref. SEA-100
The bag placer seals a 10 mm band, draws 500 W. It arrives wired for AC 220/50, fed from a 0.65 MPa air line, holding 0-300 °C. Plan for 315 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50
- Sealing power (W)
- 500
- Sealing width (mm)
- 10
- Net weight (kg)
- 315
Overview
The mini-doypack packaging machine is characterized in compact structure and easy operation. series adopt bag magazine at the top which is adjustable. It enables one single machine to satisfy the packaging demand of various bag shapes and sizes. Adopt PLC control, driven by cylinder, low error rate and easy maintenance. Equipped with a variety of electric induction components to ensure smooth operation and accurate packing. Equipped with vacuum pump for vacuuming function.
- Stable performance and long life-using
- Simple operation
- Convenient maintenance
- PLC control
- Compact single station

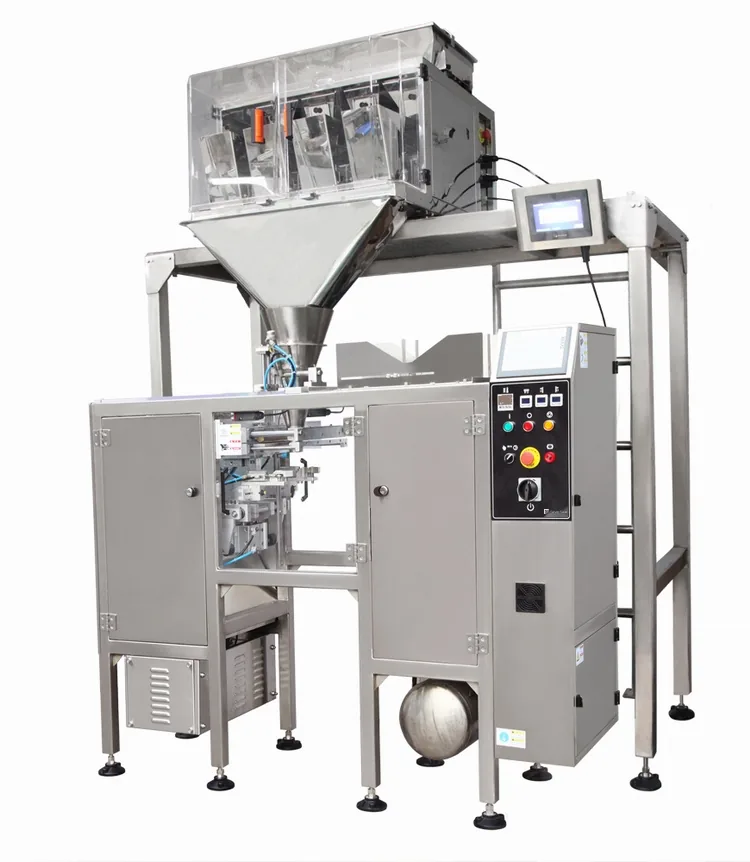

- Available for production line Application:
Technical specifications
| Model | SEA-100 |
|---|---|
| Voltage (V/Hz) | AC 220/50 |
| Sealing power (W) | 500 |
| Output | 6-15 (three side sealing/doypack w/o zipper) | 5-8 (doypack with zipper) | 6-15 (accordion/M-fold bag) |
| Sealing width (mm) | 10 |
| Temperature range (°C) | 0-300 |
| Air supply (MPa) | 0.65 |
| Dimensions L×W×H (mm) | 1827×676×1611 (three side sealing/accordion); 1827×676×1656 (doypack with zipper) |
| Net weight (kg) | 315 |
| Bag size (mm) | 100≤width≤300, 100≤length≤430 (three side sealing/doypack w/o zipper); 100≤width≤300,100≤length≤430 (doypack with zipper); 80≤width≤300,100≤length≤430 (accordion bag) |
| Suitable bag type | Three side sealing / Doypack (without zipper) | Doypack (with zipper) | Accordion bag (M fold bag) |
