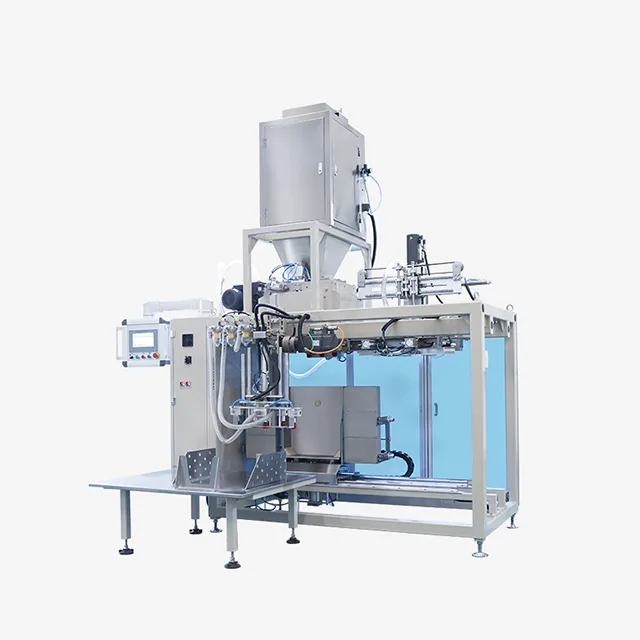

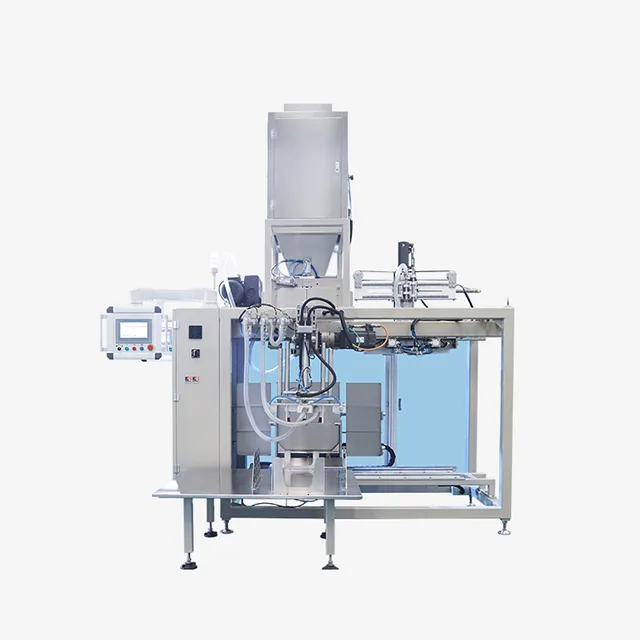

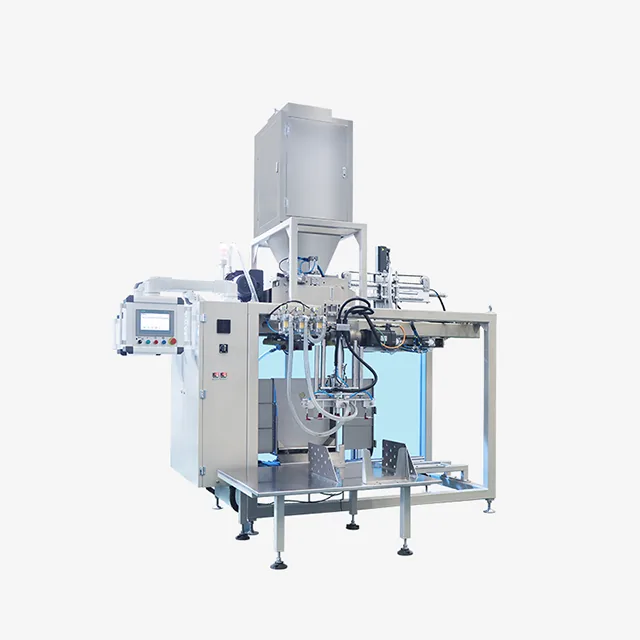

Bag Placer
Bag Placer
SilverSeal ref. SEA-120
The bag placer seals a 8–15 mm band. It arrives fed from a 0.6 MPa air line. Set up with vacuum pump 22.5, bag material Aluminium foil bag/PE bag/PP bag, sealing style Direct sealing.
- Power (W)
- 3.5
- Capacity
- ≤120
- Sealing width (mm)
- 8--15
Overview
automatic bag placing vacuum sealing packing machine automatic bag placing vacuum sealing packing machine can automatically complete a series of operations including bag taking, bagging, bagging, vacuuming, forming and sealing. It can be used with a packaging scale and seamlessly connected to the production line. It can not only save labor and realize unmanned production, but also save production costs. This machine has a compact structure and occupies less space, which is suitable for factories with smaller sites. Products'.
- Stable performance
- Automatic fault identification
- Simple operation
- Convenient maintenance
- Easily integrated with scales
- Fast adjustable to different bag sizes without tools
- Fully assembled and tested before shipment
Technical specifications
| Model | SEA-120 |
|---|---|
| Power (W) | 3.5 |
| Capacity | ≤120 |
| Sealing width (mm) | 8--15 |
| Vacuum pump (m³/h) | 22.5 |
| Air supply (MPa) | 0.6 |
| Bag material | Aluminium foil bag/PE bag/PP bag |
| Sealing style | Direct sealing |
| Suitable bag size (L×W) (mm) | (800-900)×(500-560) |
| Suitable products | Granule or Tablet with 15-30kg |
