Automatic Strapping Machine
Automatic Strapping Machine
SilverSeal ref. SET-110
The automatic strapping machine draws 850 W. It arrives wired for AC 380/50 220/60 3Phase. Plan for a 1750×650×1790 mm footprint and 350 kg net on the floor.
- Voltage (V/Hz)
- AC 380/50 220/60 3Phase
- Power (W)
- 850
- Dimensions L×W×H (mm)
- 1750×650×1790
- Net weight (kg)
- 350
Overview
Robust, durable, efficient. Lubrication free operation. Special strap guide system design allows for a wider range of straps, reducing cost. PLC controls. Auto re-feed function. Solid-state relay output system assures longer use life. Variable interval between cycles. Instant heating, quick & secure strapping. For integration into conveyor system or as stand alone machine. is ideally suited for the products that are large, heavy, dusty or easy to leak out, especially marine products.
Models in this series
3 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Output | Dimensions L×W×H (mm) | Net weight (kg) | Max. Strapping Size (L×H) (mm) | Strapping Force (V/hz) (N) | Width of Strap Used (mm) | Table height (mm) | Max.Loading Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|

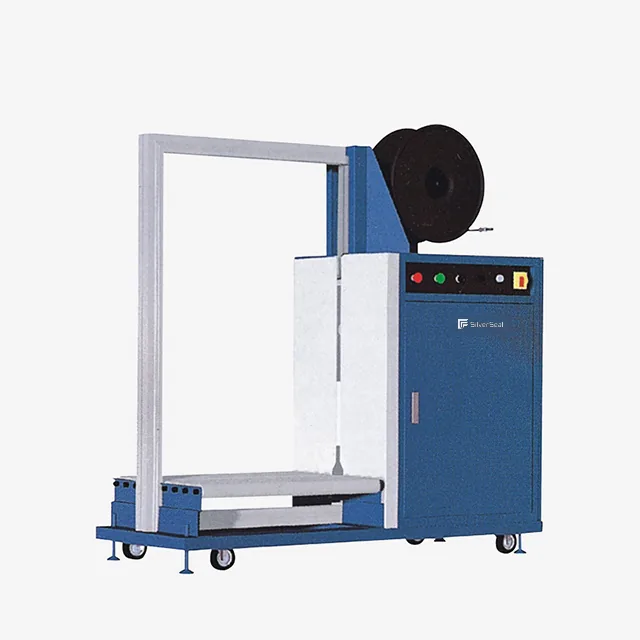

| SET-110 | SET-110 | 850 | ≤ 2.6 | 1750×650×1790 | 350 | 800×1200 | 25-750 (Adjustable) | Plastic strap 9-15, thickness 0.5-1.1 | — | — |

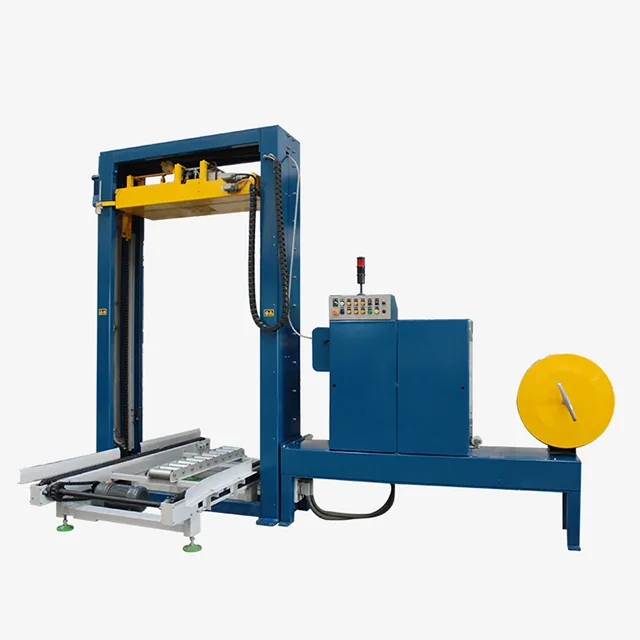

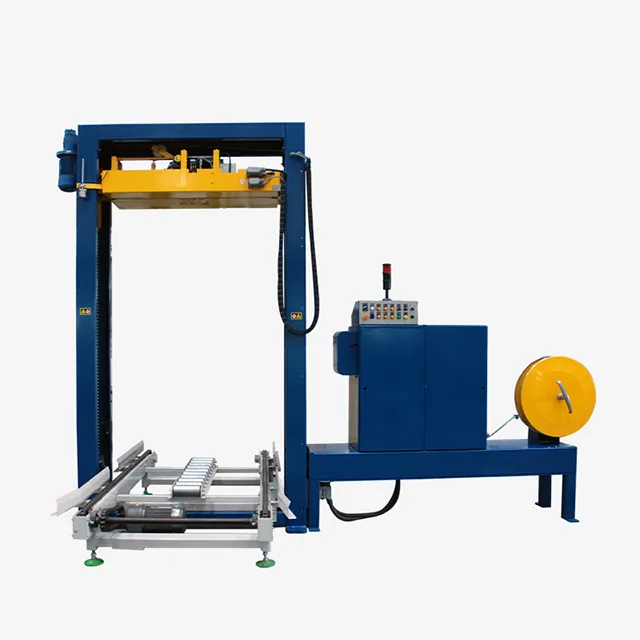

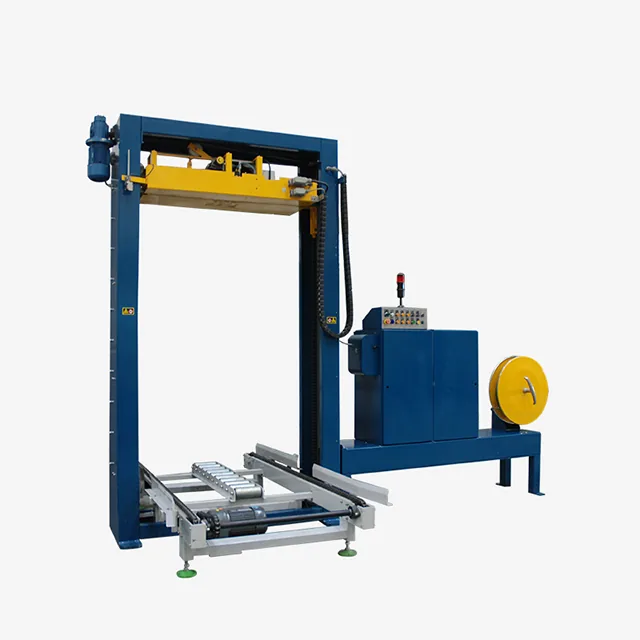

| SET-115 | SET-115 | 1000 | ≤15-30 | 3500×650×3045 | 380 | 1000×2000 (Standard) | 25-900 (Adjustable) | Plastic strap 9-15, thickness 0.6-1.1 | — | — |

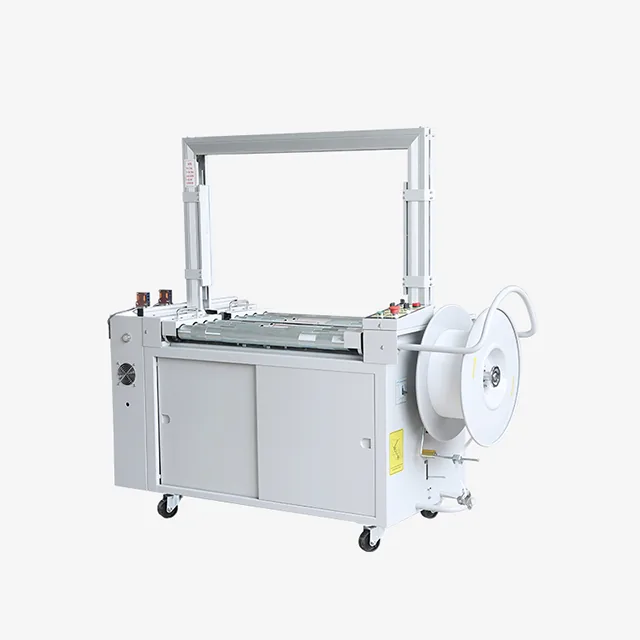

| SET-120 | SET-120 | 1100 | ≤ 2.5 | 1580×620×1470 | 300 | 740*600 | 25-700 (Adjustable) | Plastic strap 9-15, thickness 0.5-1.1 | 750 | 50 |
Technical specifications
| Model | SET-110 |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 850 |
| Output | ≤ 2.6 |
| Dimensions L×W×H (mm) | 1750×650×1790 |
| Net weight (kg) | 350 |
| Max. Strapping Size (L×H) (mm) | 800×1200 |
| Strapping Force (V/hz) (N) | 25-750 (Adjustable) |
| Width of Strap Used (mm) | Plastic strap 9-15, thickness 0.5-1.1 |
