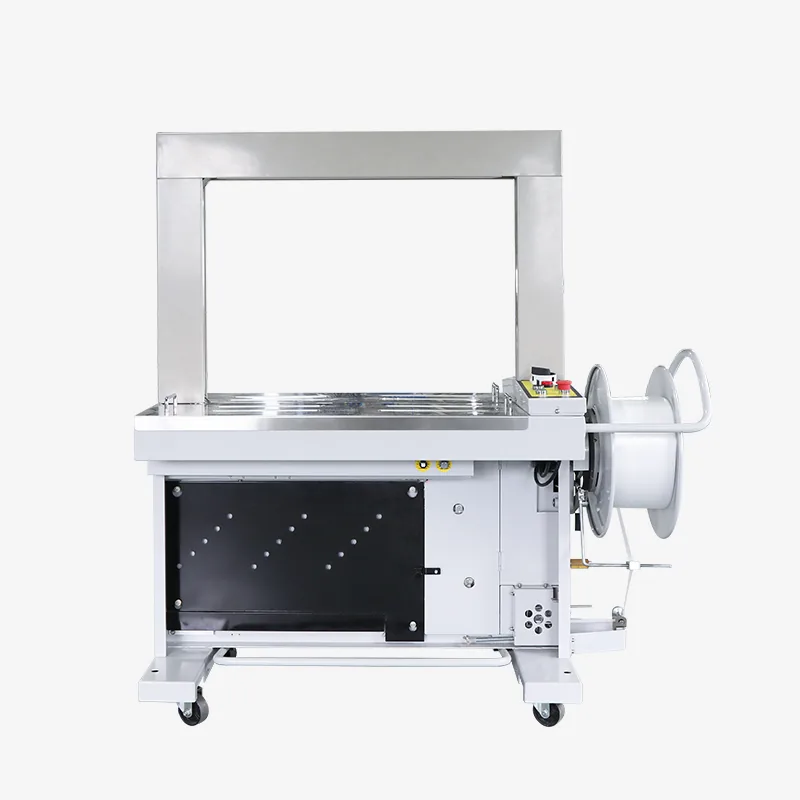

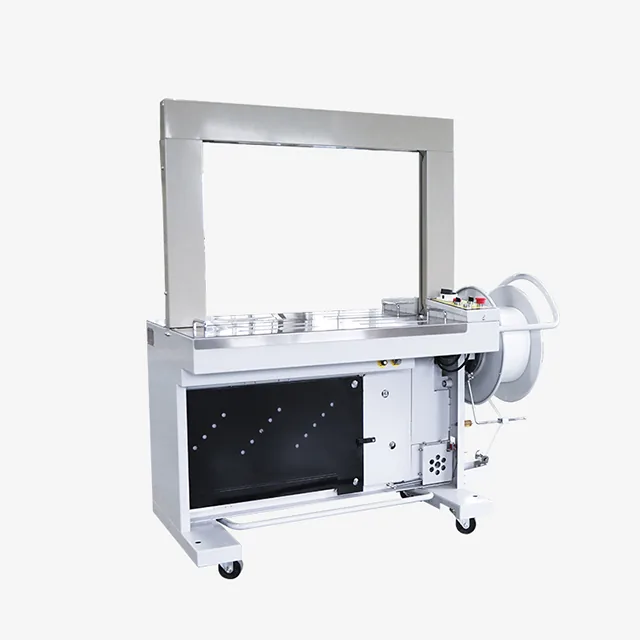

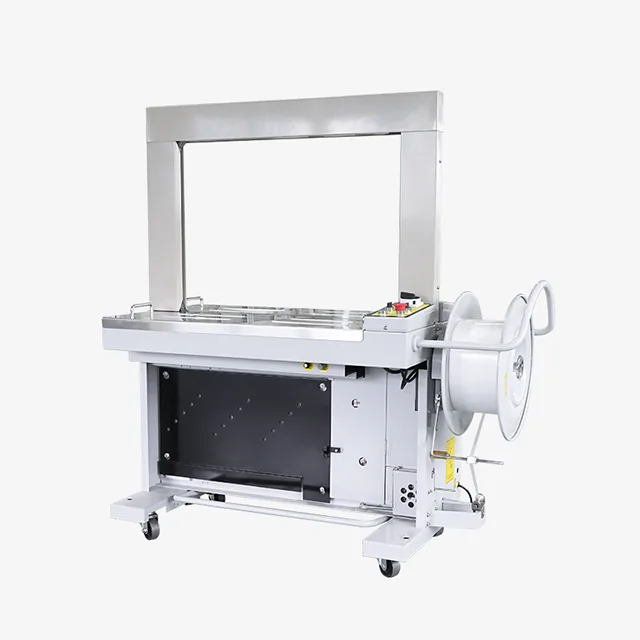

Automatic Strapping Machine
Automatic Strapping Machine
SilverSeal ref. SET-100
The automatic strapping machine draws 1000 W. It arrives wired for AC 380/50 220/60 3Phase. Plan for a 1400×620×1470 mm footprint and 190 kg net on the floor.
- Voltage (V/Hz)
- AC 380/50 220/60 3Phase
- Power (W)
- 1000
- Dimensions L×W×H (mm)
- 1400×620×1470
- Net weight (kg)
- 190
Overview
series high-table automatic strapping machineadopt film, durable, efficient KZ mechanism as main body, human-machine interface, PLC and fully digital manipulation to ensure easy size changeover and stable running. Due to special design of strap feeding and withdrawal track, more straps are applicable and packing cost is lowered greatly,Oil-free maintenance, firm strapping, high speed and long use life. It can be single-unit operation or equipped onto the production line.
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Power (W) | Output | Table height (mm) | Dimensions L×W×H (mm) | Net weight (kg) | Bundle Size (Maximum) (W×H) (mm) | Max.Loading Weight (kg) | Strapping Force (V/hz) (N) | Suitable For Plastic Bag (mm) | Frame Dimensions (W× H) (mm) | Max Load Capacity (kg) | Strapping Pattern | Strapping Tape Requirements (mm) | Strapping Tension (kg) | Working Table Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SET-100 | SET-100 | AC 380/50 220/60 3Phase | 1000 | ≤ 2.5 | 750 | 1400×620×1470 | 190 | 700*600/800*500 | 30 | 25-700 (Adjustable) | Machine Packaging Hand Width 9-15, thickness 0.5-1.1 | — | — | — | — | — | — |
| SET-105 | SET-105 | 1PH 220/50-60 | 0.65 | ≤2 | — | 1400×620×1500 | 140 | — | — | — | — | 780×580 | 30 | Strapping Methods:Parallel Strapping,Momentary Strapping Continuous Strapping,Foot-Pedal Activated Strapping | Strapping Tape Width 9-12mm Thickness 0.5-0.7mm | 0-50(Momentary) | 750 |
Technical specifications
| Model | SET-100 |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/60 3Phase |
| Power (W) | 1000 |
| Output | ≤ 2.5 |
| Table height (mm) | 750 |
| Dimensions L×W×H (mm) | 1400×620×1470 |
| Net weight (kg) | 190 |
| Bundle Size (Maximum) (W×H) (mm) | 700*600/800*500 |
| Max.Loading Weight (kg) | 30 |
| Strapping Force (V/hz) (N) | 25-700 (Adjustable) |
| Suitable For Plastic Bag (mm) | Machine Packaging Hand Width 9-15, thickness 0.5-1.1 |
