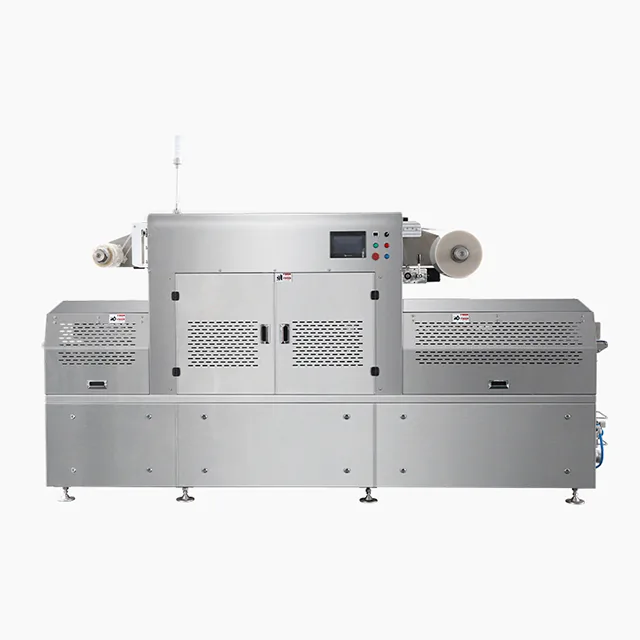

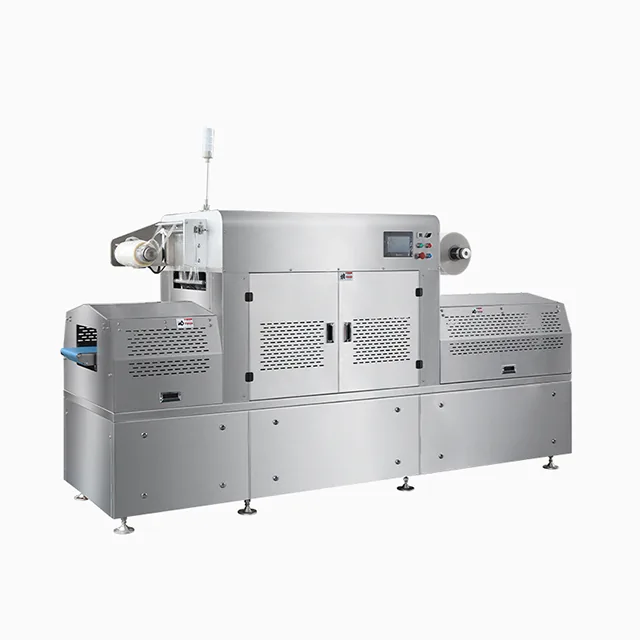

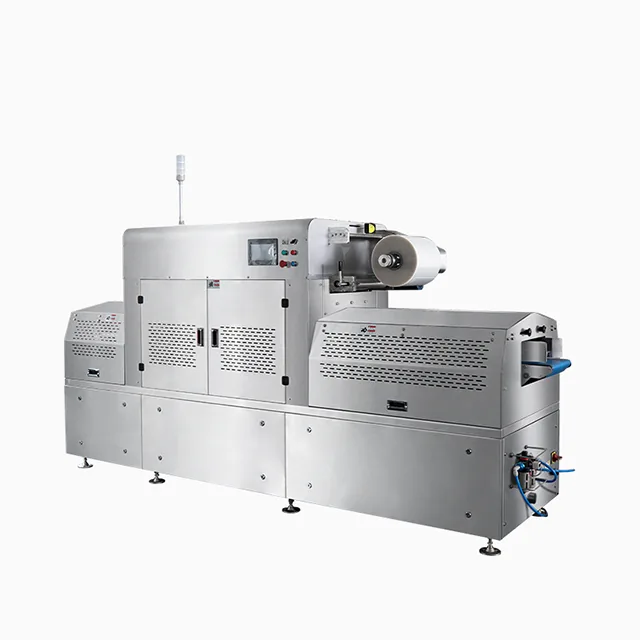

Tray Vacuum Packaging Machine
SilverSeal ref. SES-290
It arrives wired for 380/50 3P. Set up with film 76, gas replacement ratio Over 99.5, infeed and out feed conveyors height from floor 850.
- Voltage (V/Hz)
- 380/50 3P
- Power (W)
- 9 (exclude vacuum pump)
- Dimensions L×W×H (mm)
- 3280X910X1620
Overview
One-line tray sealer tray sealer machine perfect for packaging small to medium-sized items. Designed with advanced technology, the makes packaging your products a breeze. Its affordability makes it an ideal choice for businesses of any size. If you're in search of a reliable, efficient, and cost-effective Tray Vacuum Packaging Machine, the is the solution you've been looking for. Elevate your packaging processes with 's expertise. It is suitable for sealing various PP and PE pallets, and can automatically complete vacuuming, inflation, sealing, film cutting and other processes.series pallet modified atmosphere packaging machine is a new general packaging machine with automatic vacuuming, modified atmosphere packaging, sealing, printing (optional), film cutting and other functions. The working principle of the pallet vacuum inflation packaging machine is to replace the air in the bag with a protective mixed gas, effectively inhibiting the food spoilage caused by the growth and reproduction of bacteria (microorganisms), thereby extending the shelf life or shelf life of the food.
Technical specifications
| Model | SES-290 |
|---|---|
| Voltage (V/Hz) | 380/50 3P |
| Power (W) | 9 (exclude vacuum pump) |
| Capacity | 4-5 (MAP packing, with 360m3/h vacuum pump) |
| Dimensions L×W×H (mm) | 3280X910X1620 |
| Film (mm) | 76 |
| Gas Replacement Ratio (%) | Over 99.5 |
| Infeed and Out feed Conveyors Height from Floor (mm) | 850 |
| Max. Film Roll Outer Diameter (mm) | 300 |
| Max. Film Width (mm) | 350 |
| Max. Tray Height of Standard Machine (mm) | 80 |
| Tray Size (mm) (LXW) | Max. 280X170 (4 trays/cycle) Min. 180X100 (6 trays/cycle) |
| Working Pressure ( MPa ) | 0.6-0.8(Clean, dry, continuous air source) |
