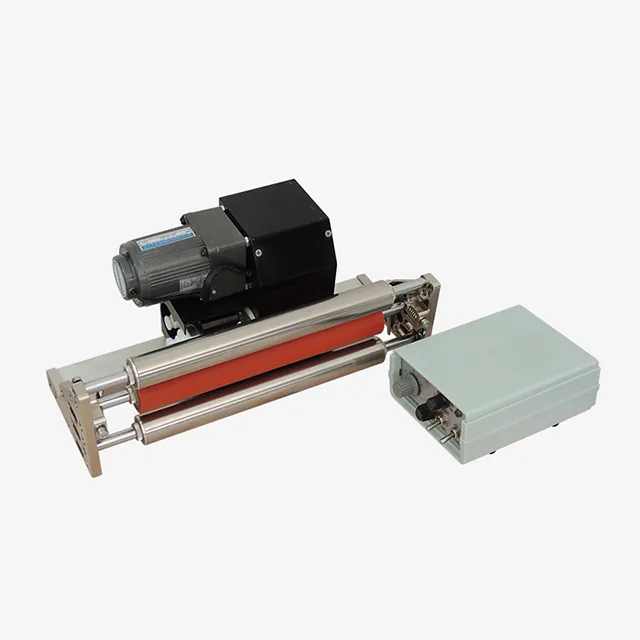

Lock-and-Follow Coding Machine
Lock-and-Follow Coding Machine
SilverSeal ref. SEM-120
The lock-and-follow coding machine draws 150 W. It arrives wired for AC 220/50 110/60. Set up with max. printing speed 300, size of character (height) 2×1.5(8PT) 2.5×2(9PT) 3×3(10.5PT), size of solid-ink roller ф35×32.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 150
Overview
Lock-And-Follow Solid-Ink Coding Machine adopts stepper motor, steady in quality, long usage life. Automatically trace the packing speed and the print speed can keep pace with the packing speed. Removable print head and special word change structure, the characters easy to install and replace. With dual-use print wheel, suitable for R type and T type arrangement. It is suitable for all kinds of horizontal and vertical continuous packing machines to automatic print production date, lot number and other related information.
- Reliable performance
- Simple operation
- Convenient maintenance
- Cost-effective Application:
- Reliable performance
- Simple operation
- Convenient maintenance
- Cost-effective Application:
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model |
|---|---|
| SEM-120 | SEM-120 |
| SEM-125 | SEM-125 |
Technical specifications
| Model | SEM-120 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 150 |
| Max. Printing Line 180°printing wheel 120°printing wheel 90°printing wheel | T type(10.5PT):11 lines (Max. 10 characters/line) R type(10.5PT):8 lines (Max. 11 characters/line) T type(10.5PT):7 lines (Max. 10 characters/line) R type(10.5PT):8 lines (Max. 7 characters/line) T type(10.5PT):4 lines (Max. 10 characters/line) R type(10.5PT):8 lines (Max. 4 characters/line) |
| Max. Printing Speed (Pcs/min) | 300 |
| Size of Character (height) (mm) | 2×1.5(8PT) 2.5×2(9PT) 3×3(10.5PT) |
| Size of Solid-ink Roller (mm) | ф35×32 |
