Sealing Cutter

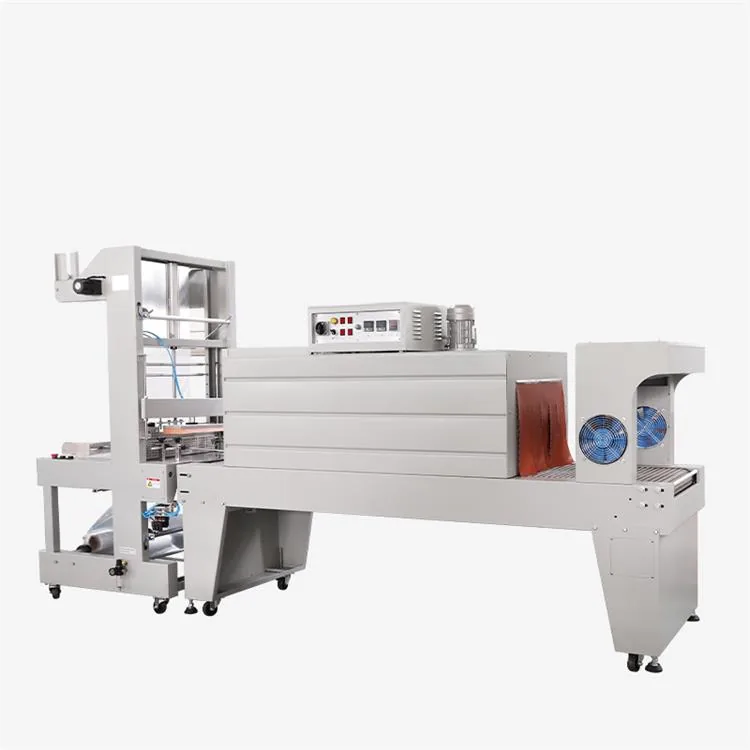

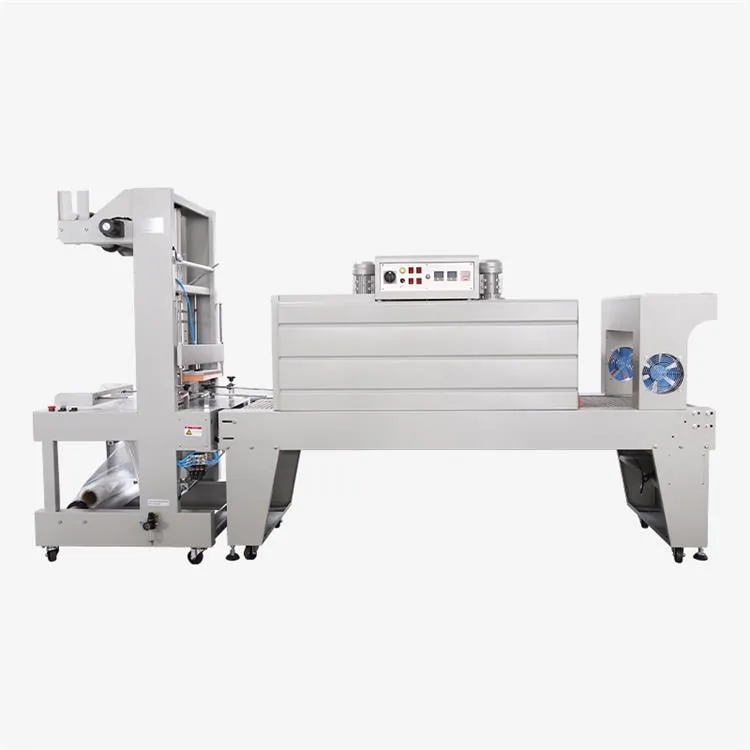

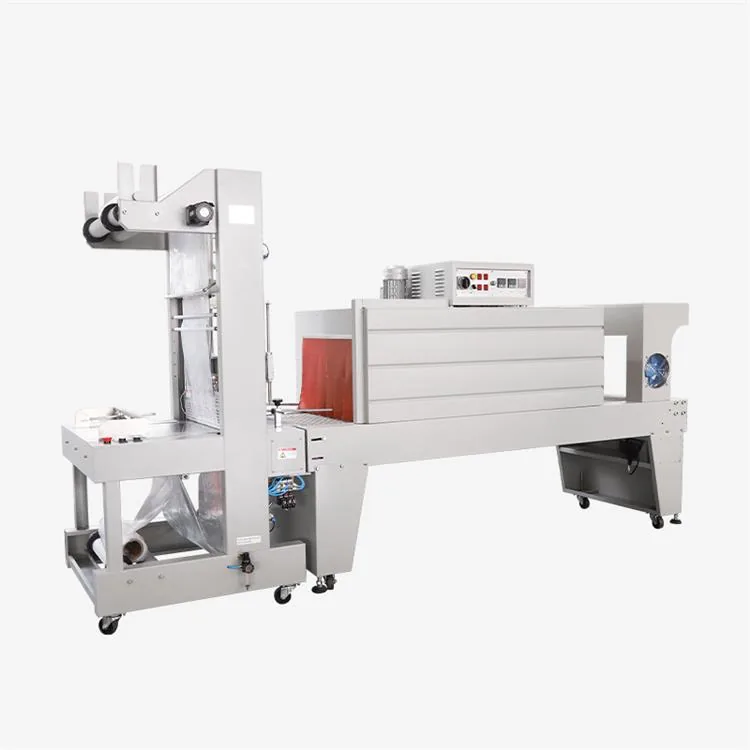

Semi Automatic Sleeve Sealing Machine
SilverSeal ref. SEK-265
The semi automatic sleeve sealing machine works a 1500×600×400 mm chamber, draws 18.5 W. It arrives wired for AC 380/50 220/60 3 Phase, holding 150-250 °C. Plan for a 3500×860×2000 mm footprint and 520 kg net on the floor.
- Voltage (V/Hz)
- AC 380/50 220/60 3 Phase
- Power (W)
- 18.5
- Dimensions L×W×H (mm)
- 3500×860×2000
- Net weight (kg)
- 520
Overview
semiautomatic sleeve sealing machine can be fed manually or pneumatically. When the sealing & cutting cycle is complete, the product is discharged into the shrink tunnel automatically.
- The machine is used to shrink package single and multiple products
Technical specifications
| Model | SEK-265 |
|---|---|
| Voltage (V/Hz) | AC 380/50 220/60 3 Phase |
| Power (W) | 18.5 |
| Output | 8-10 |
| Tunnel L×W×H (mm) | 1500×600×400 |
| Temperature range (°C) | 150-250 |
| Dimensions L×W×H (mm) | 3500×860×2000 |
| Net weight (kg) | 520 |
| Compressed Air (Lt/min) | 60 |
| Maximum Film Width (mm) | 600 |
| Pack size (mm) | 520×320×350 |
| Sealing & Cutting Length (mm) | 650 |
| Sealing Time Setting (S) | 1.5-3 |
| Suitable Film Thickness (μm) | PE 40-80 |
