Down-Paper type Horizontal Packaging Machine
Down-Paper type Horizontal Packaging Machine
SilverSeal ref. SEH-135
It arrives wired for AC 220/50 220/60. Plan for a 3920×670×1320 mm footprint and 600 kg net on the floor. Set up with bag size 65-190 or 120-280, film Max.250, height of product Max.40.
- Voltage (V/Hz)
- AC 220/50 220/60
- Power (W)
- 2.4
- Dimensions L×W×H (mm)
- 3920×670×1320
- Net weight (kg)
- 600
Models in this series
3 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Dimensions L×W×H (mm) | Net weight (kg) | Film (mm) |
|---|---|---|---|---|---|

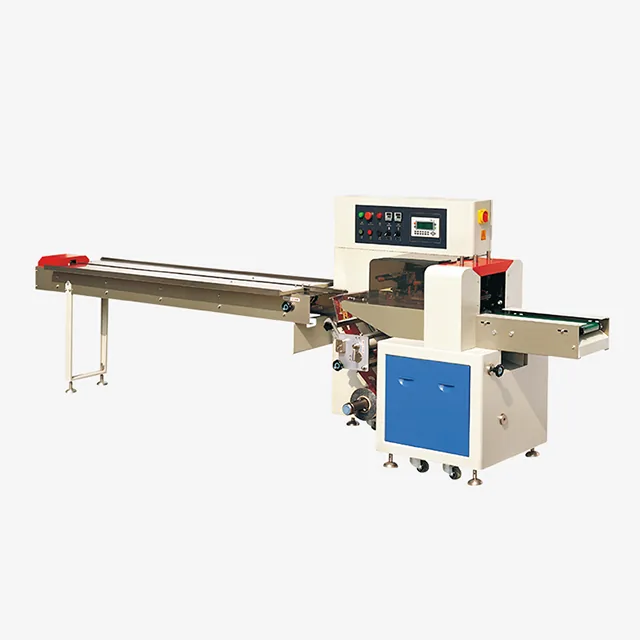

| SEH-135 | SEH-135 | 2.4 | 3920×670×1320 | 600 | Max.250 |

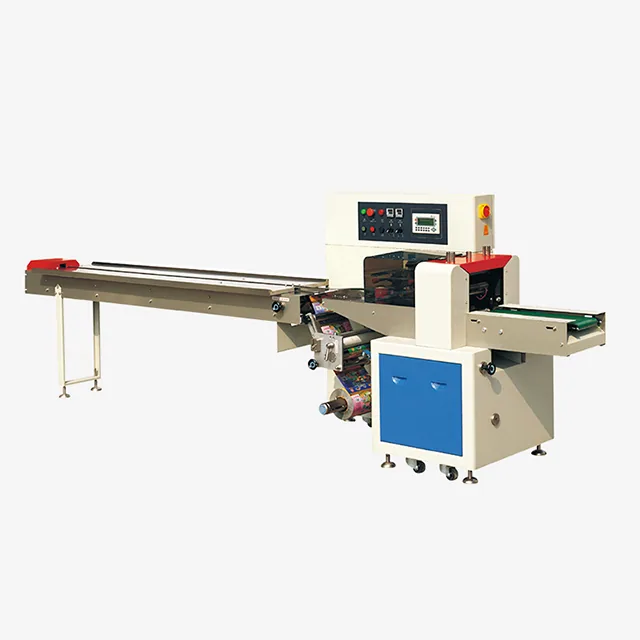

| SEH-140 | SEH-140 | 2.8 | 4020×720×1320 | 680 | Max.350 |

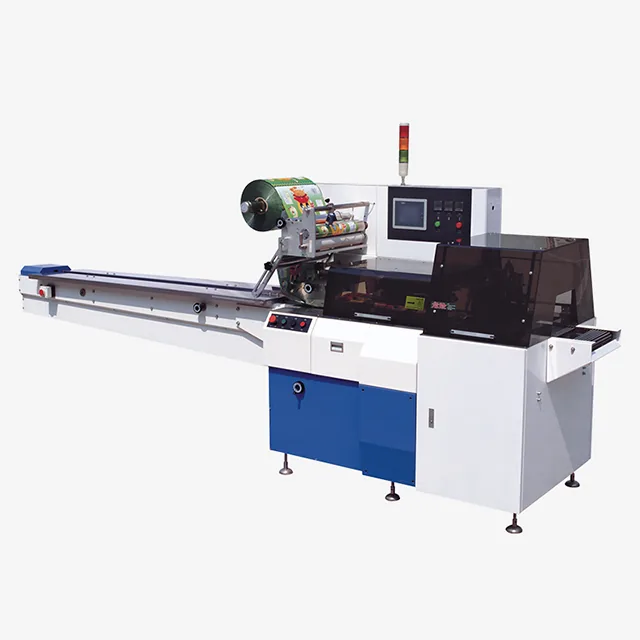

| SEH-145 | SEH-145 | 2.8 | 4020×800×1450 | 900 | Max.450 |
Technical specifications
| Model | SEH-135 |
|---|---|
| Voltage (V/Hz) | AC 220/50 220/60 |
| Power (W) | 2.4 |
| Output | 40-230 |
| Dimensions L×W×H (mm) | 3920×670×1320 |
| Net weight (kg) | 600 |
| Bag size (mm) | 65-190 or 120-280 |
| Film (mm) | Max.250 |
| Height of Product (mm) | Max.40 |
