SEA-165
1 / 4
Carton Sealing Strapping Packaging Line
Carton Sealing Strapping Packaging Line
SilverSeal ref. SEA-150
The carton sealing strapping packaging line runs at 20 m/min, draws 1050 W. It arrives wired for AC 380/50. Plan for a 2650×1900×1600 mm footprint and 485 kg net on the floor.
- Voltage (V/Hz)
- AC 380/50
- Power (W)
- 1050
- Speed (m/min)
- 20
- Dimensions L×W×H (mm)
- 2650×1900×1600
- Net weight (kg)
- 485
Models in this series
4 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Speed (m/min) | Tape width (mm) | Table height (mm) | Dimensions L×W×H (mm) | Net weight (kg) | Available Strapping Belt (mm) | Pack size (mm) | Productive Capacity (pcs/h) | Air supply (MPa) | Packing Material (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

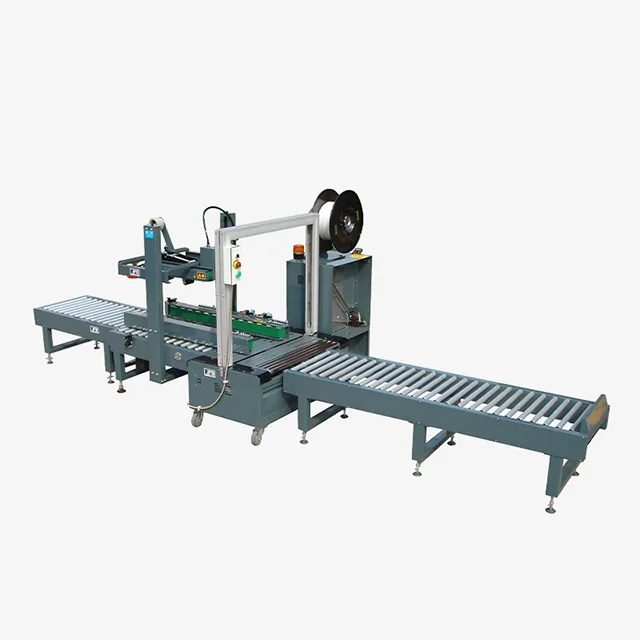

| SEA-150 | SEA-150 | 1050 | 20 | BOPP, PVC adhesive tape, water-free adhesive tape width 48 、 60 、 76mm （ Optional ） | 450 | 2650×1900×1600 | 485 | plastic strapping belt ， width10-13 thickness0.5~1.1 | 600×500×500 | 600 | — | — |

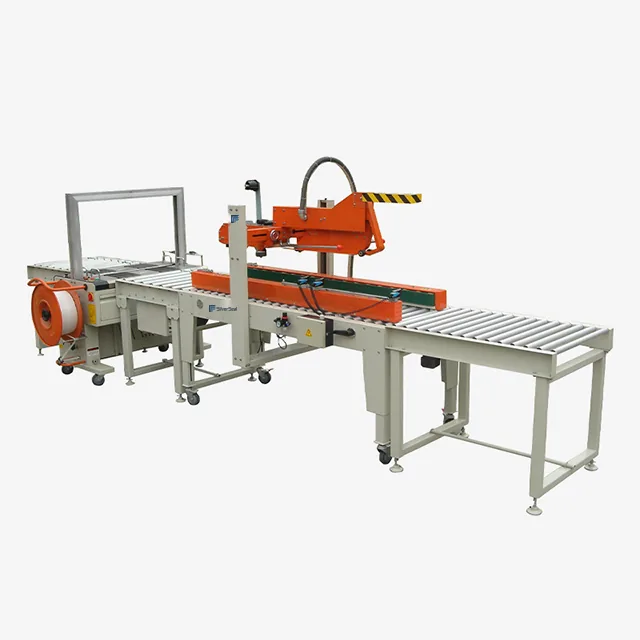

| SEA-155 | SEA-155 | 1700 | 20 | BOPP, PVC adhesive tape, water-free adhesive tape width 48 60 76mm （ Optional ） | 750 | 6650×1420× 1565 | 655 | plastic strapping belt ， width9~15 thickness0.5~1.1 | 600×500×500 | 600 | 2/3 litres at 5 bars | — |

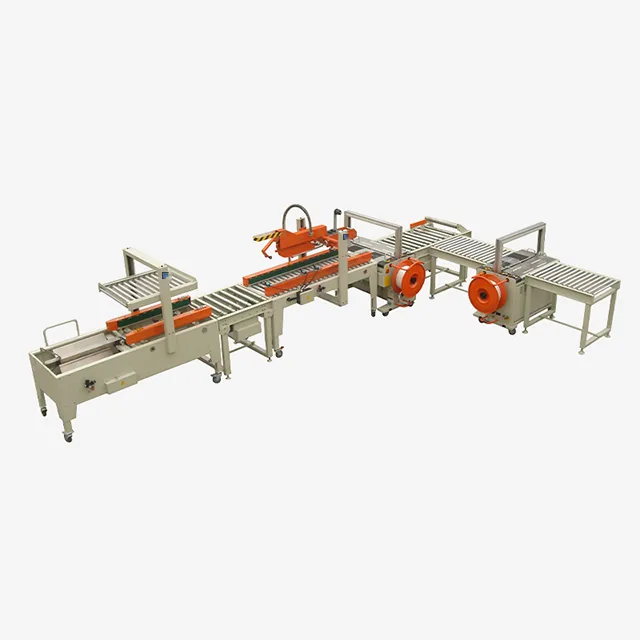

| SEA-160 | SEA-160 | 4100 | 200 | BOPP, PVC adhesive tape, water-free adhesive tape width 48 、 60 、 76mm （ Optional ） | 750 | 7850×3500× 1700 | 950 | plastic strapping belt ， width9~15 thickness0.5~1.1 | 500×400×450 | 600 | 2/3 litres at 5 bars | — |

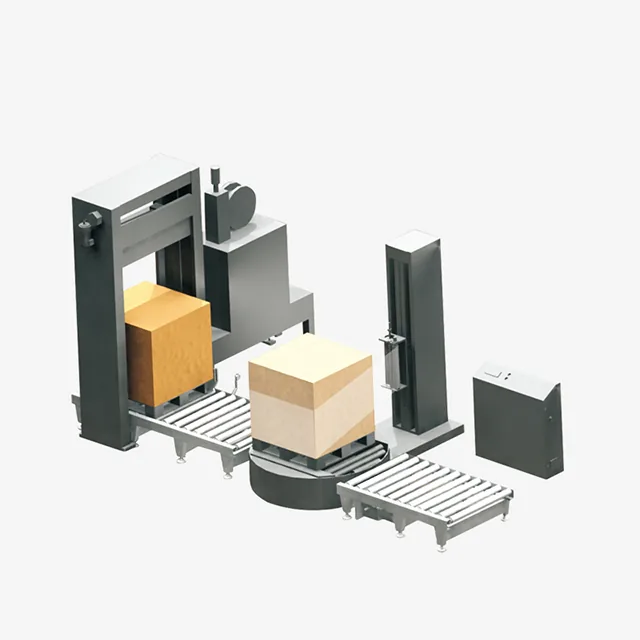

| SEA-190 | SEA-190 | 5300 | 9.5 | — | 400 | 5790x3500x3045 | — | 12-15mm in width, 0.7-1.1mm in thickness | 1000x1000x1800 | 40 | — | stretch film. width 500mm |
Technical specifications
| Model | SEA-150 |
|---|---|
| Voltage (V/Hz) | AC 380/50 |
| Power (W) | 1050 |
| Speed (m/min) | 20 |
| Tape width (mm) | BOPP, PVC adhesive tape, water-free adhesive tape width 48 、 60 、 76mm （ Optional ） |
| Table height (mm) | 450 |
| Dimensions L×W×H (mm) | 2650×1900×1600 |
| Net weight (kg) | 485 |
| Available Strapping Belt (mm) | plastic strapping belt ， width10-13 thickness0.5~1.1 |
| Pack size (mm) | 600×500×500 |
| Productive Capacity (pcs/h) | 600 |
