Box Erecting Machine

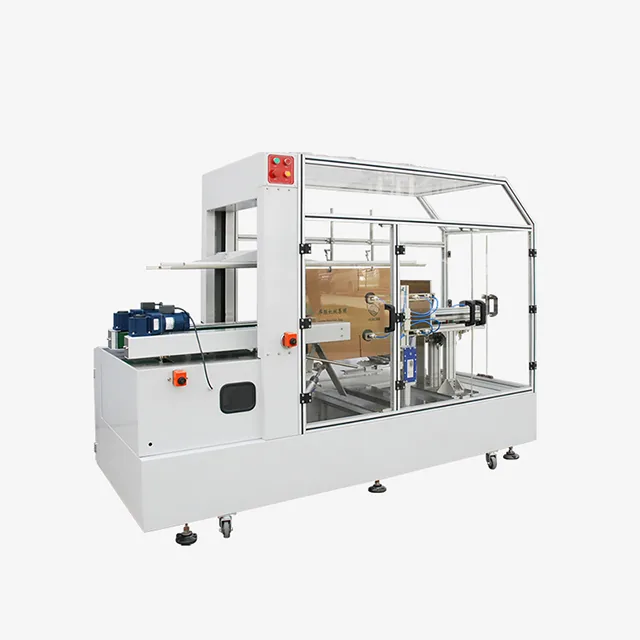

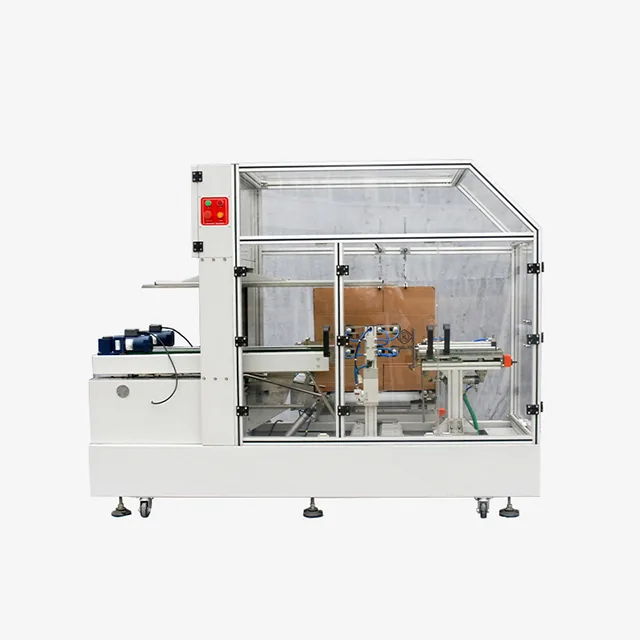

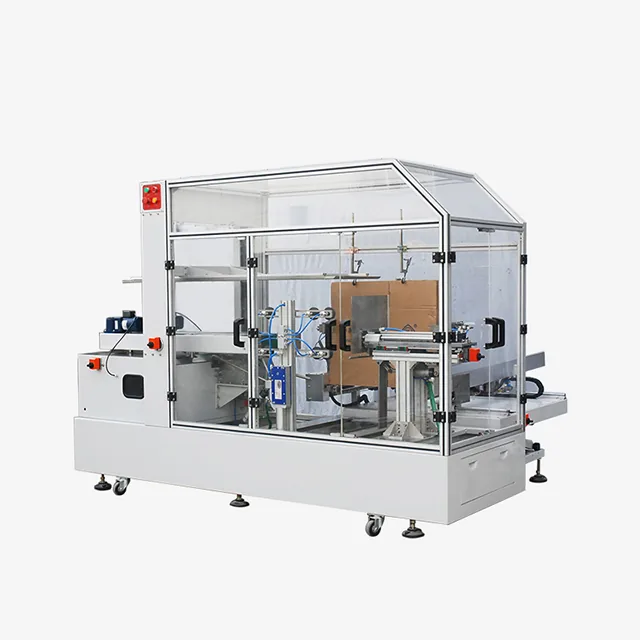

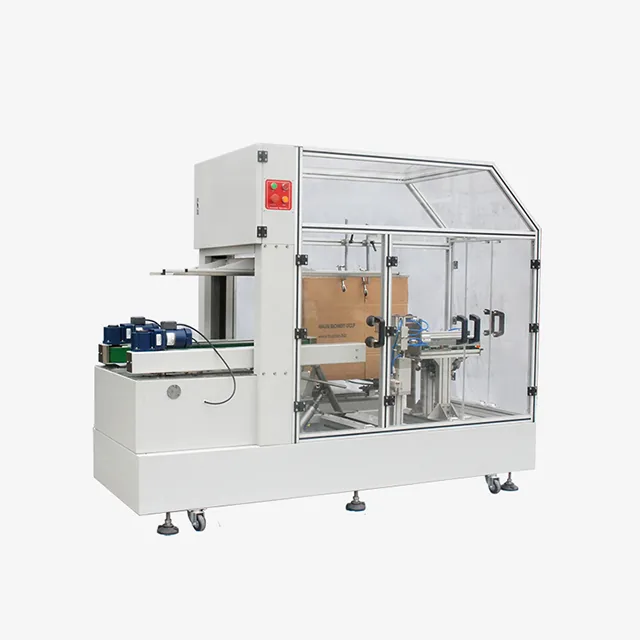

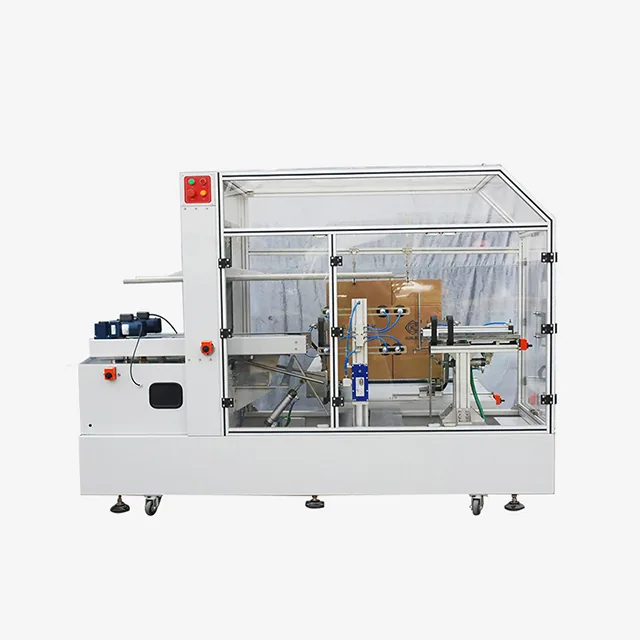

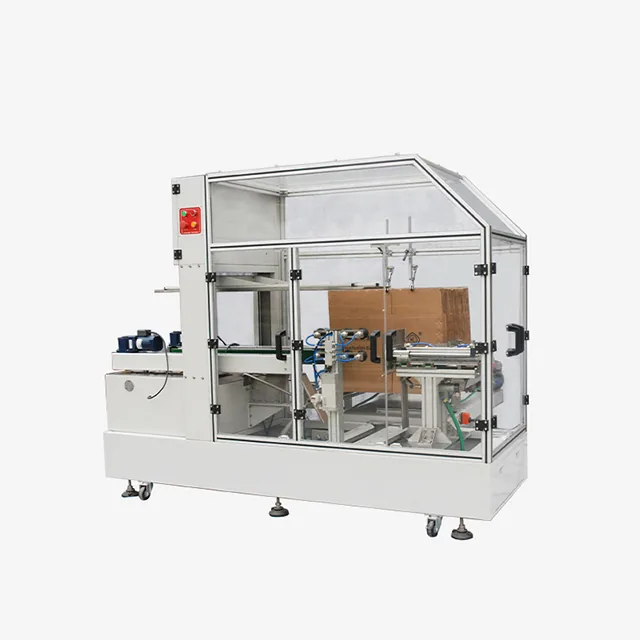

Box Erecting Machine
SilverSeal ref. SEA-140
The box erecting machine draws 800 W. It arrives wired for AC 380/50 3 phase, fed from a 0.5-0.6 Kpa air line. Set up with applicable tape size Tape roll dia. ≤350, tape width 48 or 60(standard) or 76, applicable tape type BOPP, PVC, Kraft adhesive tape, external size (l×w×h) 2650×2400×1800.
- Voltage (V/Hz)
- AC 380/50 3 phase
- Power (W)
- 800
- Capacity
- ≤8
Overview
Automatic Case Erector a utomatically complete carton erecting, rectangle forming, bottom flaps folding and tape sealing. Easily adjusted for application to cartons in different sizes. Vertical storage,cartons can be added at any time without stopping the machine. By efficiently and consistently erecting carton, automatic packing equipment can provide increased production and labor savings.
- Stable performance and long life-using
- Simple operation
- Convenient maintenance
- Steel and stainless steel both types
- Cutter Safety system
- Advanced photoelectricity induction control system
- Available for production line Application:
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Capacity | External size (L×W×H) (mm) | Height of vacuum device (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| SEA-140 | SEA-140 | AC 380/50 3 phase | ≤8 | 2650×2400×1800 | 800+(0-30) | 550 |
| SEA-295 | SEA-295 | AC 380/50 220/60 3 phase | ≤10 | 2300×2300×1850 | 700+(0-30) | 500 |
Technical specifications
| Model | SEA-140 |
|---|---|
| Voltage (V/Hz) | AC 380/50 3 phase |
| Power (W) | 800 |
| Capacity | ≤8 |
| Air supply pressure (Kpa) | 0.5-0.6 |
| Applicable tape size (mm) | Tape roll dia. ≤350, tape width 48 or 60(standard) or 76 |
| Applicable tape type | BOPP, PVC, Kraft adhesive tape |
| External size (L×W×H) (mm) | 2650×2400×1800 |
| Height of vacuum device (mm) | 800+(0-30) |
| Weight (kg) | 550 |
