SEV-100
1 / 2
Vertical Packaging Machine

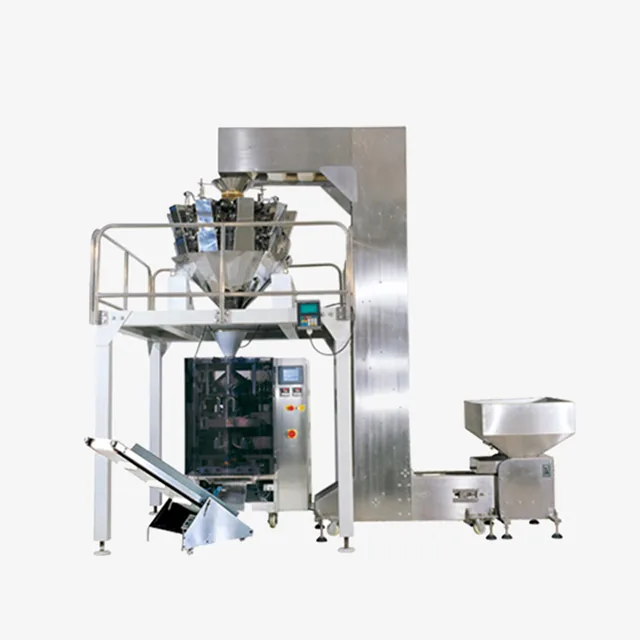

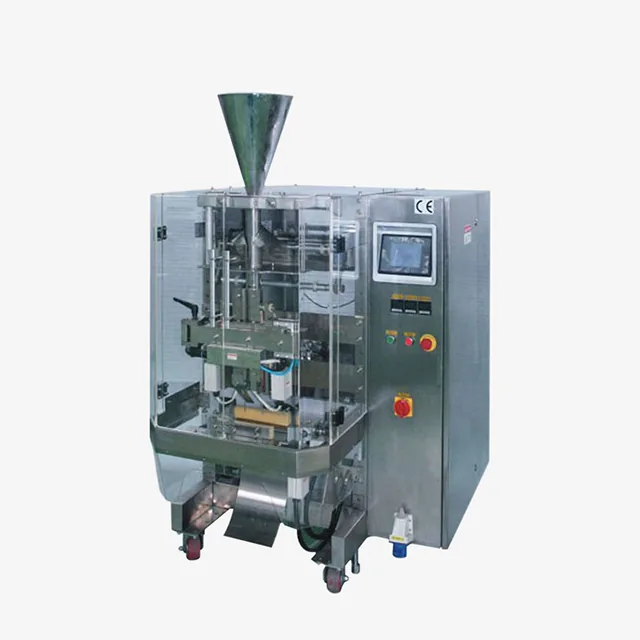

Automatic Vertical Form
SilverSeal ref. SEV-305
Set up with bag size 100-600mm, film 560-900mm (maximum), machine size 2305 x 1685 x 2725mm.
- Power (W)
- 220V, 50/60H,3kW
Overview
High precision, high efficiency No damage to the material Equipped with safety protection, conform to firm' safety; Use PLC control servo electrical double-pull or single pull membrane structure, super touch screen structure drives the control center; maximize the whole machine's control precision, reliability and intelligentized level. HLWP automatic weighing packaging machine is used to pack fragile bulk materials with requirement of high counting precision such as puffed food, potato chip, crispy rice, jelly, candy, pistachio, apple slice, rice dumplings and pharma etc.
Technical specifications
| Model | SEV-305 |
|---|---|
| Power (W) | 220V, 50/60H,3kW |
| Output | 10-20bags/minute (according to the product conditions) |
| Bag size (mm) | 100-600mm |
| Film (mm) | 560-900mm (maximum) |
| Machine size (L x W x H) | 2305 x 1685 x 2725mm |
| Machine weight | 1200Kg |
| Range of measurement | 1-25L |
