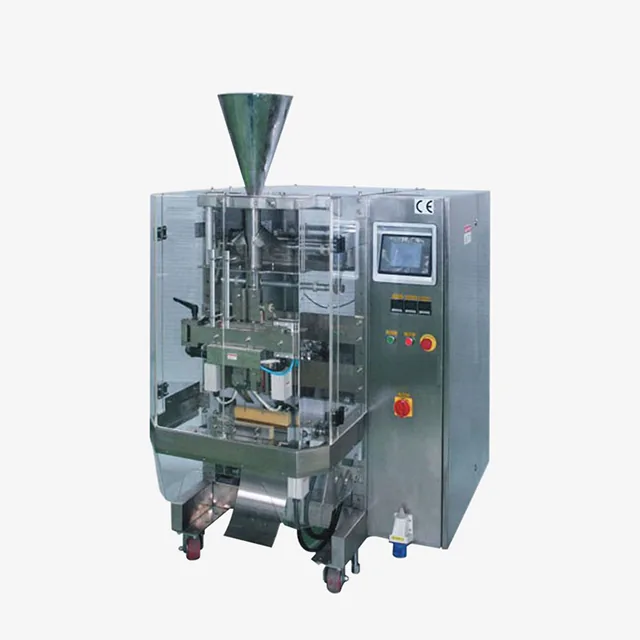

Weighing Packing Machine
Weighing Packing Machine
SilverSeal ref. SEV-270
Set up with bag size 80-280mm, film 150-420mm (maximum), machine size 1390 x 1155 x 1800mm.
series Automatic Vertical Form and Seal Machine is combined with a weighing machine and sealing machine. The weighing, blanking, packaging, and cutting processes are controlled by micro-computer. S o the packaging will be smooth. Various kinds of bags, it could provide the hang hole bag, link bag and more.Double-servo devices, vacuum film feeding devices, hole-punching device, link bag devices. With double transporting devices, angle fold devices and retainer devices, function more perfect. With auto warning protection function to minimize loss. Standard positioning with imported servo film transporting system and mark sensor, super excellent capability for complete machine, perfect packaging. Longitudinal sealing is used by four sides with hot sealing type, bag is more beautiful and shape stabilization.
- Power (W)
- 220V, 50/60H,2.8kW
Models in this series
4 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Output | Bag size (mm) | Film (mm) | Machine size (L x W x H) | Range of measurement | Machine weight |
|---|---|---|---|---|---|---|---|---|
| SEV-270 | SEV-270 | 220V, 50/60H,2.8kW | 10-40bags/minute (according to the product conditions) | 80-280mm | 150-420mm (maximum) | 1390 x 1155 x 1800mm | 150ml-1500ml | — |
| SEV-275 | SEV-275 | 220V, 50/60H,3kW | 10-40bags/minute (according to the product conditions) | 80-350mm | 250-520mm (maximum) | 1492 x 1255x 2184mm | 150ml-2000ml | — |
| SEV-280 | SEV-280 | 220V, 50/60H,3kW | 10-30bags/minute (according to the product conditions) | 80-420mm | 260-680mm (maximum) | 1590 x 1500x 2408mm | 150ml-2000ml | — |
| SEV-285 | SEV-285 | 220V, 50/60H,3kW | 10-20bags/minute (according to the product conditions) | 100-600mm | 560-900mm (maximum) | 2305 x 1685 x 2725mm | 1-25L | 1200Kg |
Technical specifications
| Model | SEV-270 |
|---|---|
| Power (W) | 220V, 50/60H,2.8kW |
| Output | 10-40bags/minute (according to the product conditions) |
| Bag size (mm) | 80-280mm |
| Film (mm) | 150-420mm (maximum) |
| Machine size (L x W x H) | 1390 x 1155 x 1800mm |
| Range of measurement | 150ml-1500ml |
