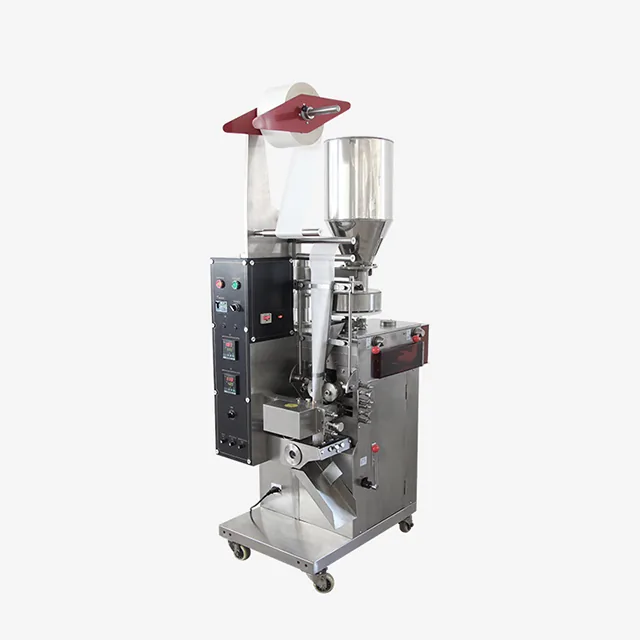

Tea Bag Packaging Machine
Tea Bag Packaging Machine
SilverSeal ref. SEV-260
The tea bag packaging machine draws 1300 W. It arrives wired for AC 220/50 110/60. Plan for a 930×720×1850 mm footprint and 280 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 1300
- Capacity
- 1.5-40
- Dimensions L×W×H (mm)
- 930×720×1850
- Net weight (kg)
- 280
Overview
series Automatic Tea Bag Packaging Machine is combined with a weighing machine and sealing machine. So it can can automatically run through the full cycle of installed functions, including measuring, bag forming, filling, thread-attaching, tagging, sealing, cutting, etc. The weighing, blanking, packaging, and cutting processes are controlled by micro-computer. S o the packaging will be smooth.
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Voltage (V/Hz) | Power (W) | Capacity | Dimensions L×W×H (mm) | Net weight (kg) | Bag size (mm) | Thread Length (mm) | Output | Bag type | Feeding system | Inner bag size | Length of the thread | Outer bag size | Package range | Packing material | Product name | Tag size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEV-260 | SEV-260 | AC 220/50 110/60 | 1300 | 1.5-40 | 930×720×1850 | 280 | 50-110 | 160 | — | — | — | — | — | — | — | — | — | — | — |

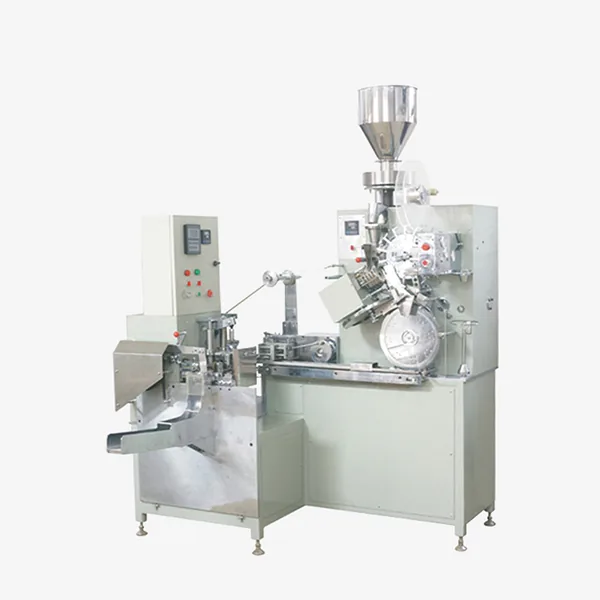

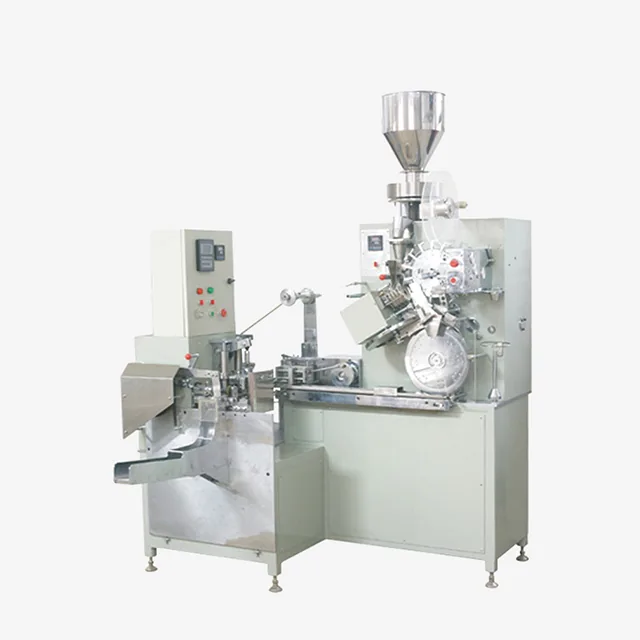

| SEV-265 | SEV-265 | — | 220V, 50HZ, 3.7KW | — | 1250*700*1800mm | — | — | — | 40-60bags/min | 3 side sealing | Volumetric cup filler | L:50-70mm , W:40-80mm | 155mm | L:70-120mm , W:60-90mm | 3-15ml | Paper/Plastic, Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag | Automatic Tea Bag Packing Machine with Thread, Tag and Outer Envelope | L:20-24mm ,W:40-55mm | 500KG |
Technical specifications
| Model | SEV-260 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 1300 |
| Capacity | 1.5-40 |
| Dimensions L×W×H (mm) | 930×720×1850 |
| Net weight (kg) | 280 |
| Bag size (mm) | 50-110 |
| Thread Length (mm) | 160 |
