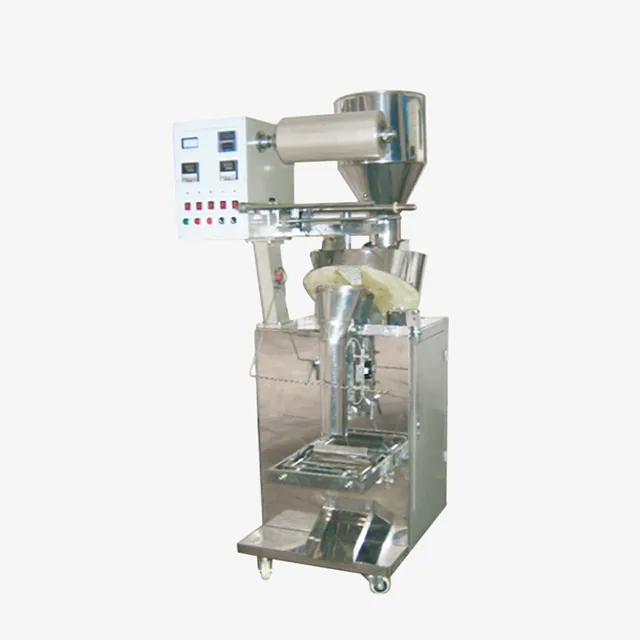

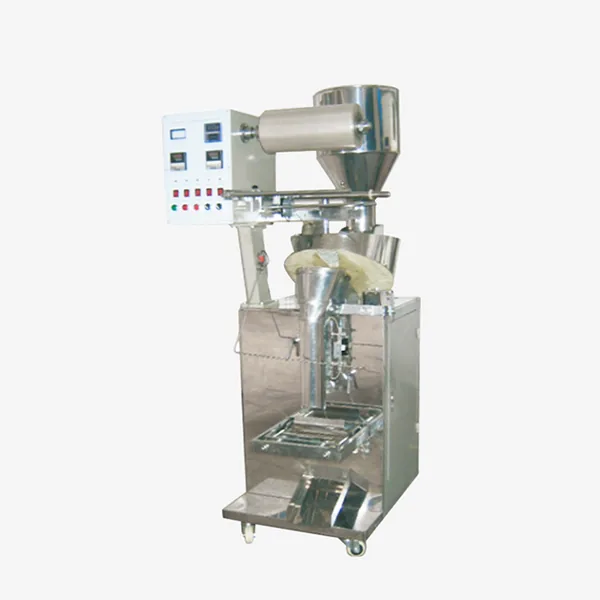

Tablet Packing Machine
Tablet Packing Machine
SilverSeal ref. SEV-240
The tablet packing machine draws 1700 W. It arrives wired for AC 220/50 110/60. Plan for a 1060×720×1870 mm footprint and 400 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 1700
- Capacity
- 30-150
- Dimensions L×W×H (mm)
- 1060×720×1870
- Net weight (kg)
- 400
Overview
Description: series Automatic Pill Packaging Machine is widely used to pack tablets or pills in the fields of food, daily process industries, pharma, agricultural process industries etc. It is suitable for heat sealable compound materials such as single Paper/PE, Cellophane/PE, Aluminum foil /PE, BOPP/PE, Nylon/PE etc.
Models in this series
4 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Capacity | Dimensions L×W×H (mm) | Net weight (kg) | Bag size (mm) |
|---|---|---|---|---|---|---|
| SEV-240 | SEV-240 | 1700 | 30-150 | 1060×720×1870 | 400 | 80-150 |
| SEV-245 | SEV-245 | 1300 | 0.5-20 | 930×720×1870 | 350 | 35-85 |
| SEV-250 | SEV-250 | 1500 | 5-40 | 930×720×1870 | 350 | 50-100 |
| SEV-255 | SEV-255 | 1500 | 50-500 | 1150×850×1970 | 400 | 50-220 |
Technical specifications
| Model | SEV-240 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 1700 |
| Capacity | 30-150 |
| Dimensions L×W×H (mm) | 1060×720×1870 |
| Net weight (kg) | 400 |
| Bag size (mm) | 80-150 |
