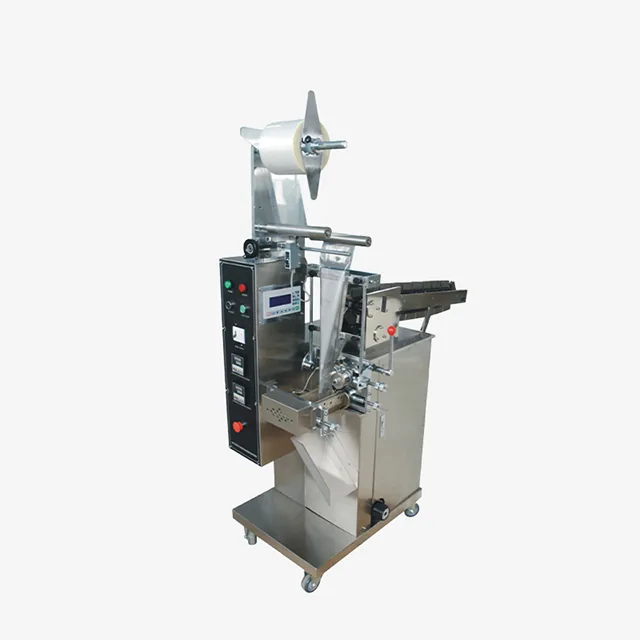

Packaging Machine With Chain Hopper
Packaging Machine With Chain Hopper
SilverSeal ref. SEV-170
The packaging machine with chain hopper draws 1700 W. It arrives wired for AC 220/50 110/60. Plan for a 1150×600×1780 mm footprint and 400 kg net on the floor.
- Voltage (V/Hz)
- AC 220/50 110/60
- Power (W)
- 1700
- Capacity
- 35-70
- Dimensions L×W×H (mm)
- 1150×600×1780
- Net weight (kg)
- 400
Models in this series
3 sizes share this build. The table shows only what changes between them.
| Reference | Model | Power (W) | Capacity | Dimensions L×W×H (mm) | Net weight (kg) | Bag size (mm) |
|---|---|---|---|---|---|---|
| SEV-170 | SEV-170 | 1700 | 35-70 | 1150×600×1780 | 400 | 80-150 |
| SEV-175 | SEV-175 | 1300 | 50-90 | 1140×600×1780 | 350 | 50-110 |
| SEV-180 | SEV-180 | 1750 | 25-50 | 1150×900×1950 | 500 | 30-150 |
Technical specifications
| Model | SEV-170 |
|---|---|
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 1700 |
| Capacity | 35-70 |
| Dimensions L×W×H (mm) | 1150×600×1780 |
| Net weight (kg) | 400 |
| Bag size (mm) | 80-150 |
