SES-325
1 / 8

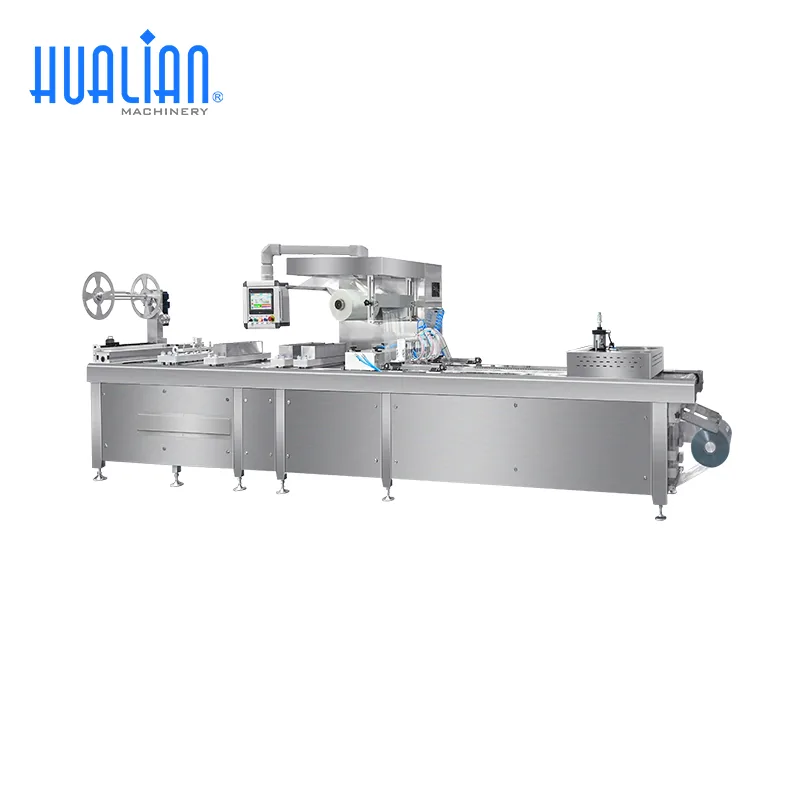

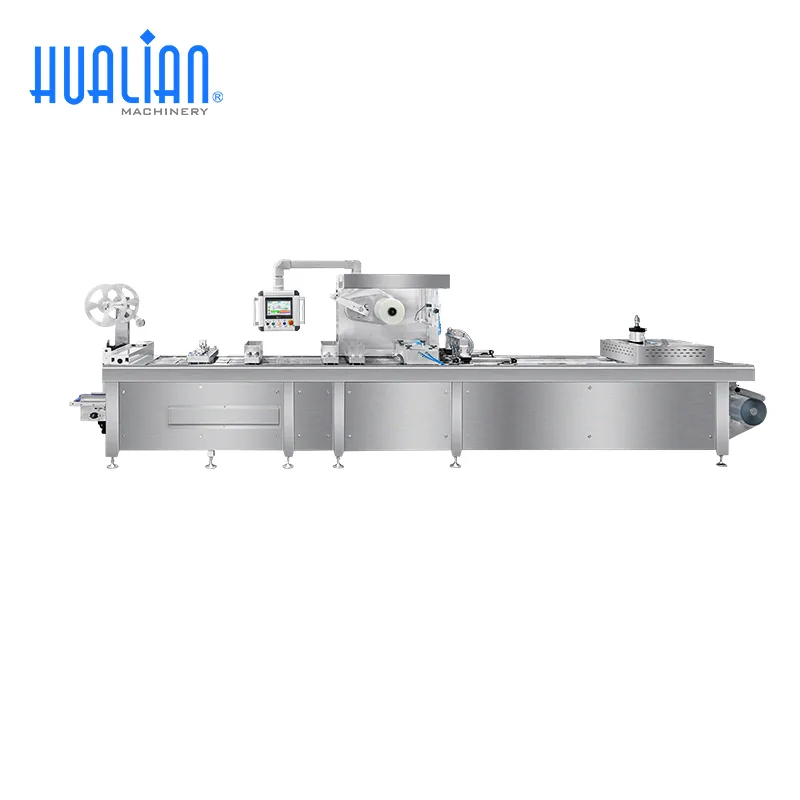

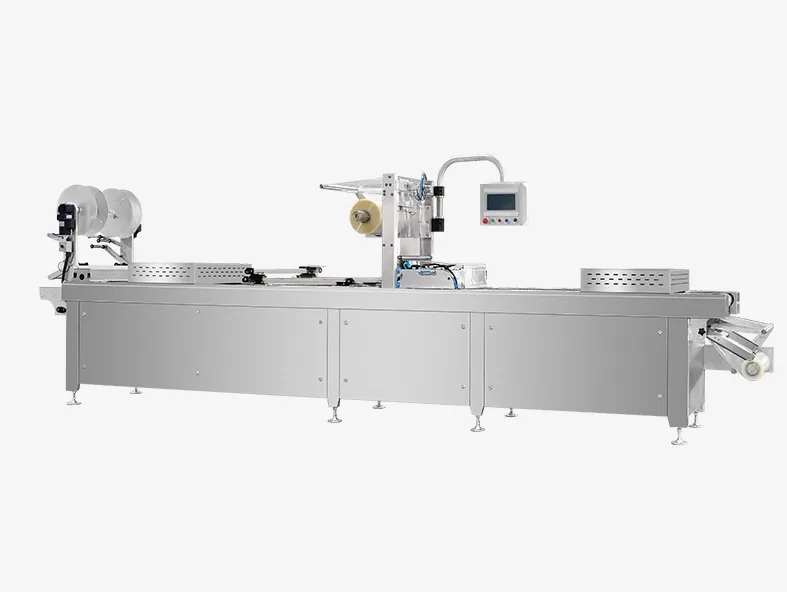

Vacuum Packaging Machine
Automatic High-output Map Thermoforming Vacuum Packaging
SilverSeal ref. SES-340
It arrives wired for 380V/50HZ 3P, fed from a 0.6-0.8 MPa air line. Set up with sealing power 2-4KW, bottom film width 422, cooling method water-cooled.
- Voltage (V/Hz)
- 380V/50HZ 3P
- Sealing power (W)
- 2-4KW
- Chamber L×W×H (mm)
- 384*(200-400)
Overview

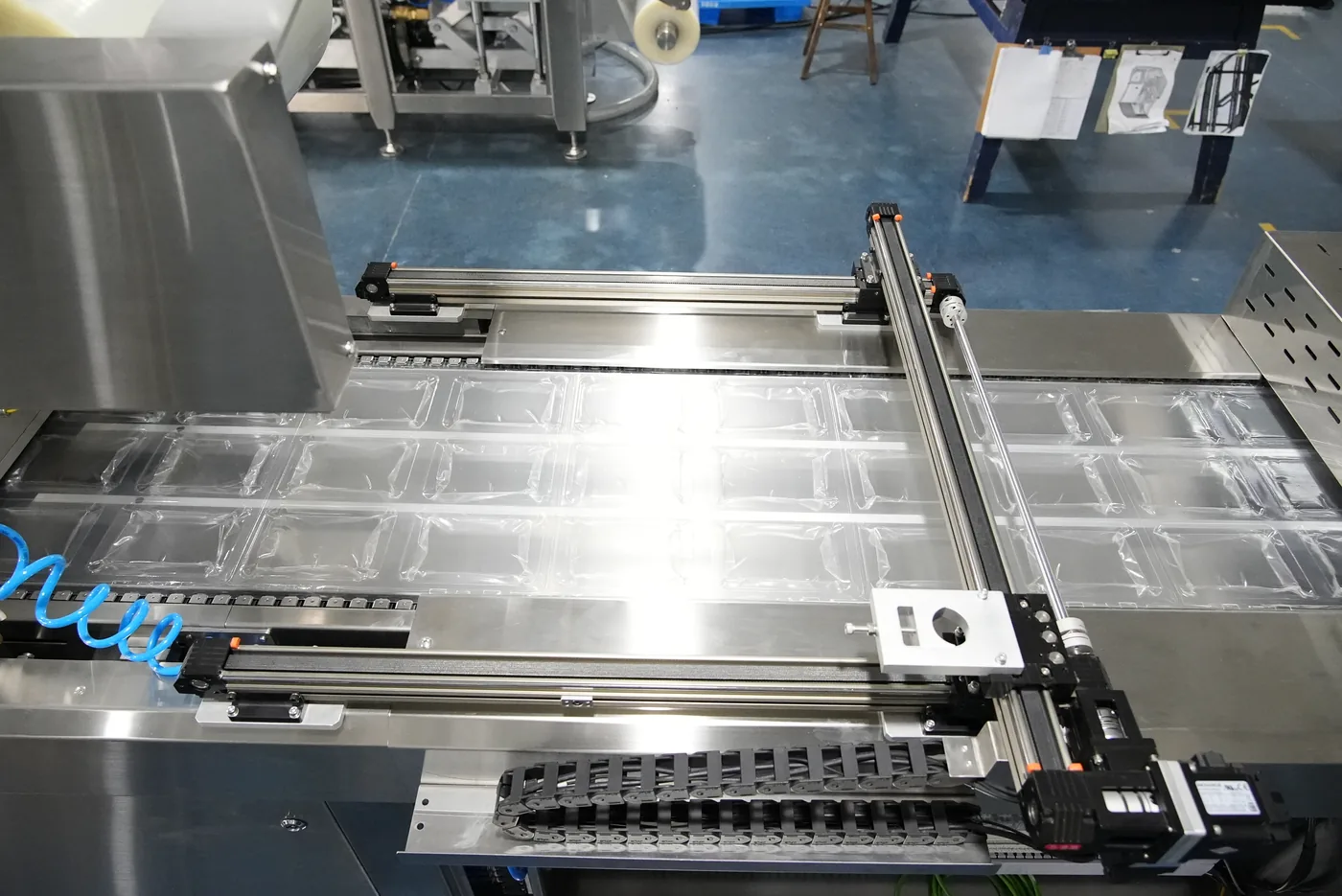

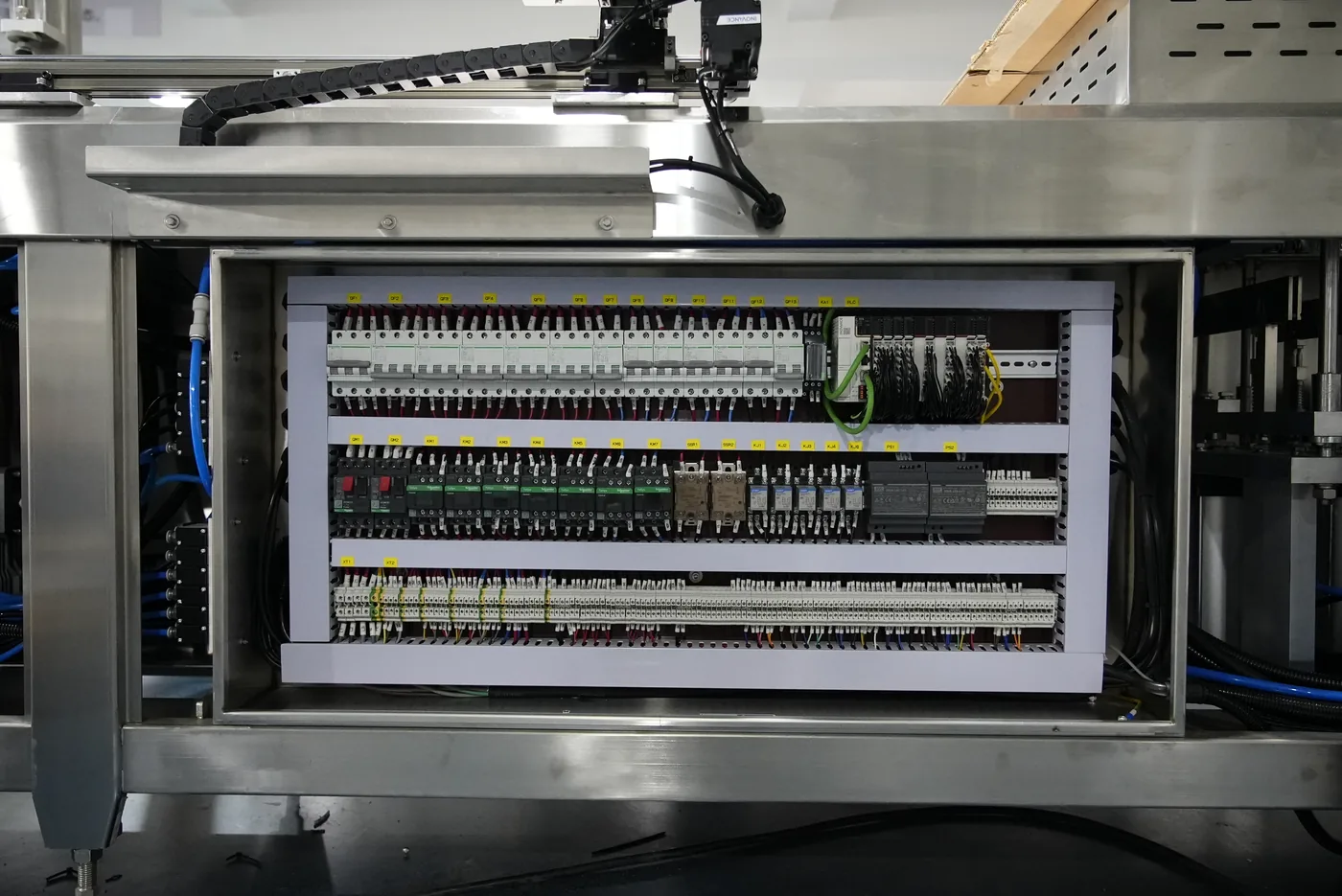

A-U High-speed Automatic Thermoforming Vacuum Packaging Machine ✔️Application: Suitable for large-scale production lines with high production volumes. ✔️High Speed: The servo-driven system maintains high precision in forming, sealing, and cutting, significantly increasing packaging speeds to up to 8-12 cycles per minute. ✔️High Vacuum degree: Utilizing a 300m³/h Busch pump, this machine quickly reaches the desired vacuum level, ensuring smooth and even sealing. ✔️Integrated Design: Featuring a built-in electrical cabinet, this design not only saves space but also offers a clean, aesthetically pleasing, and safe appearance. ✔️Compatible with Packaging Lines: The adjustable conveyor belt height allows for flexible integration with downstream equipment, enabling rapid production line setup and seamless, smooth operation. Explore our full range of thermoforming packaging machine, please click here.
Models in this series
2 sizes share this build. The table shows only what changes between them.
| Reference | Model | Capacity |
|---|---|---|
| SES-340 | SES-340 | Vacuum: 12 cycles/min Vac-gas flush: 8 cycles/min |
| SES-345 | SES-345 | Vacuum, Vacuum-gas flush+sealing 4-6 times/min |
Technical specifications
| Model | SES-340 |
|---|---|
| Voltage (V/Hz) | 380V/50HZ 3P |
| Sealing power (W) | 2-4KW |
| Capacity | Vacuum: 12 cycles/min Vac-gas flush: 8 cycles/min |
| Chamber L×W×H (mm) | 384*(200-400) |
| Air supply (MPa) | 0.6-0.8 |
| Dimensions L×W×H (mm) | Without coder: 4770*915*1875 With coder: 5770*915*1875 |
| Bottom Film Width (mm) | 422 |
| Cooling Method | water-cooled |
| Max Forming Depth (mm) | 120 |
| Upper Film Width (mm) | 398 |
